10 DISMANTLING AND ASSEMBLY
OF THE ROTATING PARTS
PAGE
10.1
issued: 20.04.2017 Revision: 7
text no.
10318-1/2
copy to:
10.2 Assembly
For fitting the rotor (1999) with coupling rod (1998), the two pin joints should be
assembled as follows:
If a connection sleeve (5055/5056) is installed:
See Page 10.3, Section 10.3 - Fitting and Removal of Connection sleeves.

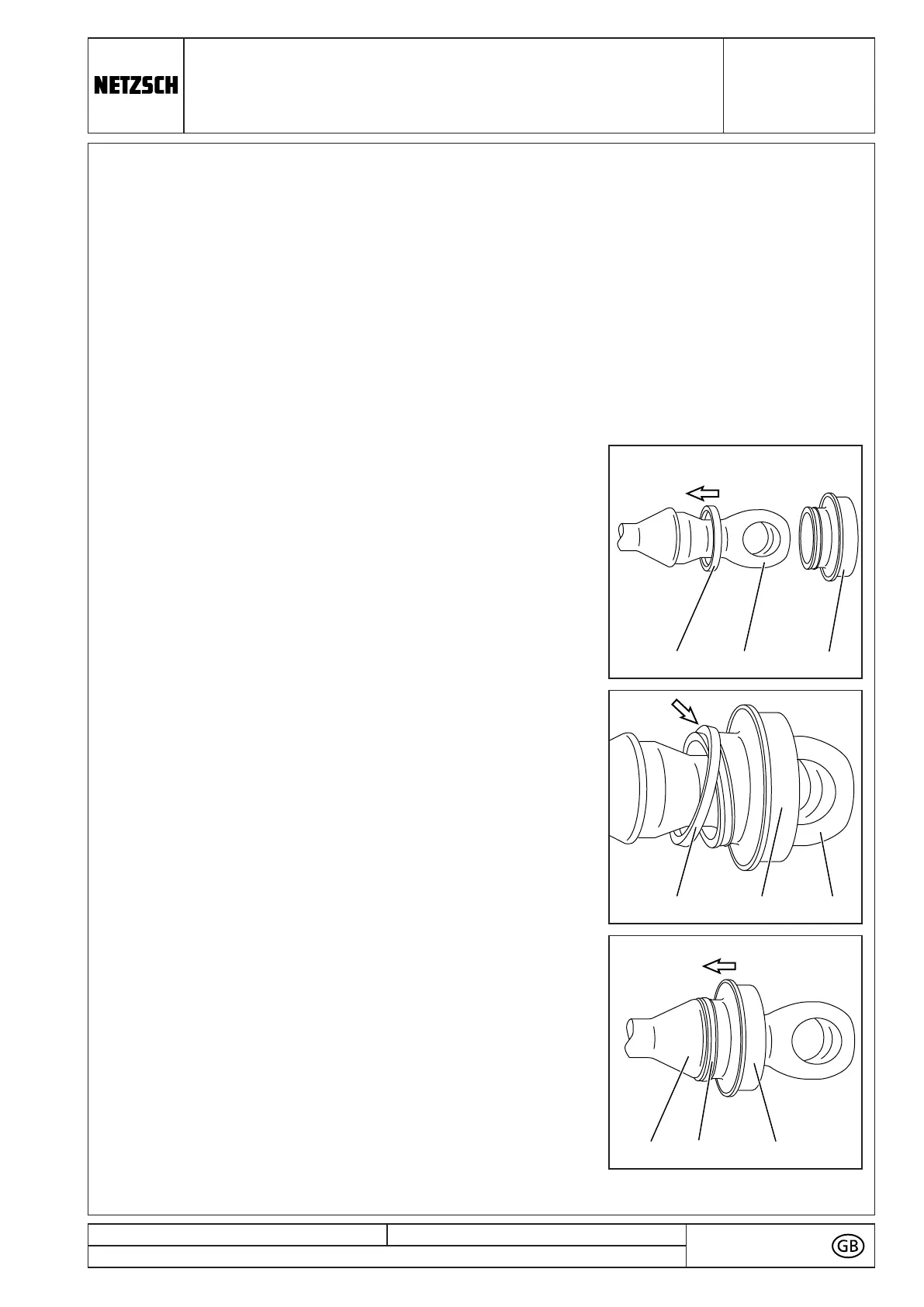

■ Slip the clamp ring (5425) over the head of coupling
rod (1998).
■ Push the SM-pin joint seal (8235) over the head of
coupling rod (1998) towards its narrow section.
■ Insert the clamp ring (5425) into the groove of the
SM-pin joint seal (8235).
■ Push the SM-pin joint seal (8235) with the correctly
placed clamp ring (5425) up to the shoulder of
coupling rod (1998).
