Programming Instructions 73
RNS
®
System User Manual

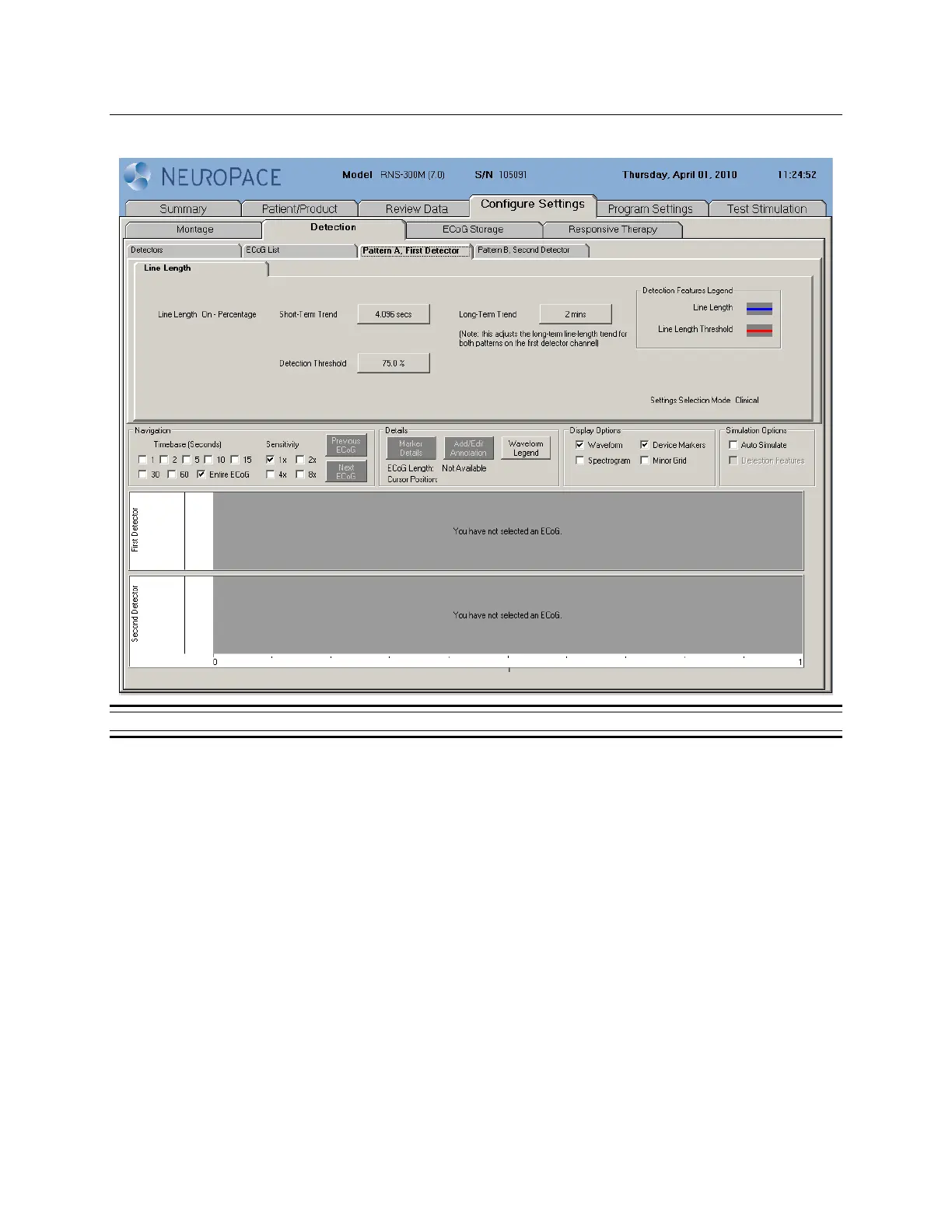

Figure 32: Line Length tab.
• Configure BANDPASS detector(s) (Figure 33).
• Bandpass detectors can improve detection response time because they use shorter detection
windows and do not rely on a long-term trend. Bandpass is very specific to a band of
frequencies and an amplitude as programmed by the physician.
• After several ECoGs with activity have been stored, a bandpass detector should be
considered if the activity has a stereotypical frequency.
