88 Series Outboard / 8801 Issue 7.3

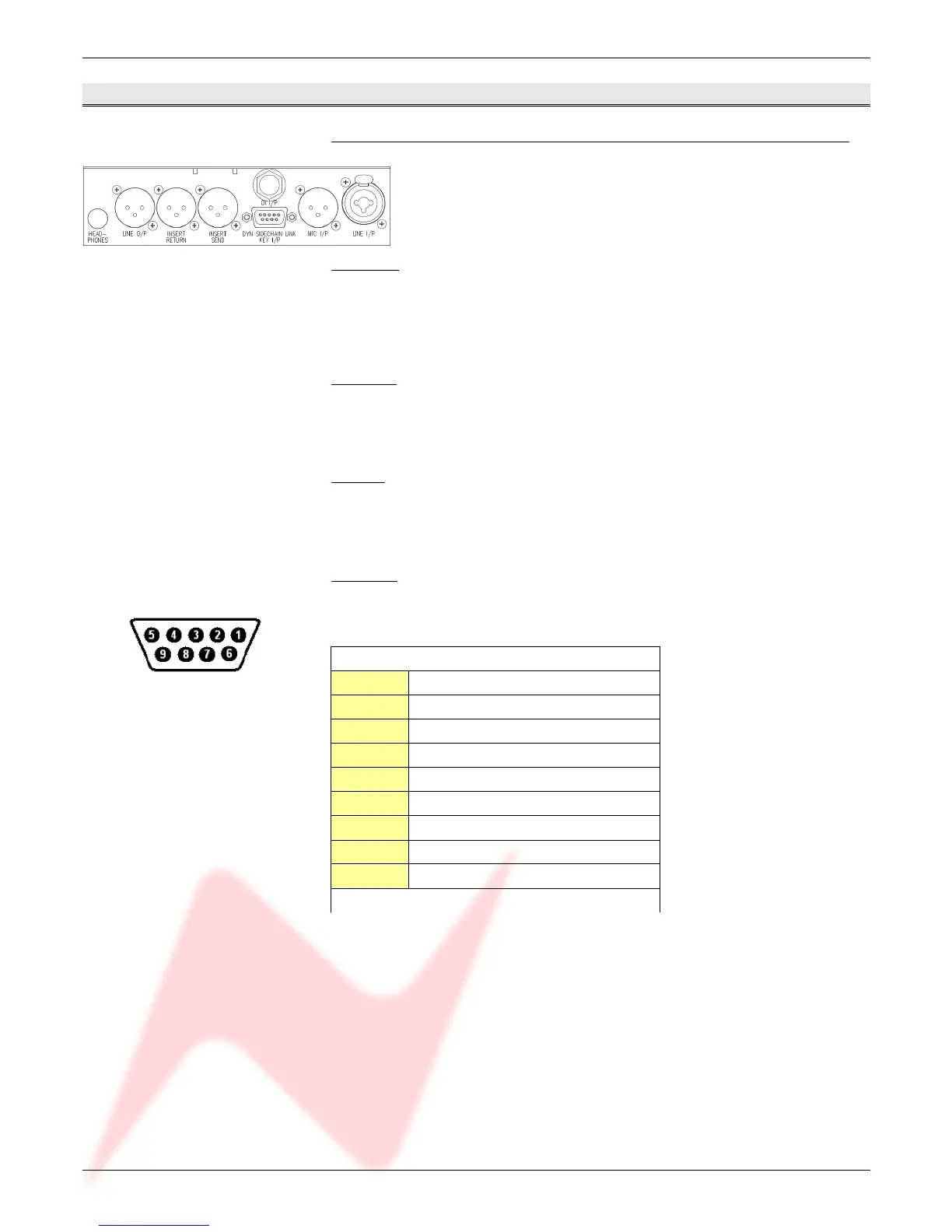

3 - Rear Panel
Rear Panel Audio Connections
Line Input
The line input combo socket accepts input signals from either male XLR or
male ¼” Jack connectors.
Input signals can be balanced or unbalanced.
Mic Input
The Mic input is on a Female XLR.
This input is in parallel with the XLR input of the Combo connector of the
front panel.
DI Input
The DI input is on a ¼’’ jack input.
This input is in parallel with the Jack input of the Combo connector of the
front panel.
Key input
The key input is located on pins 6, 7 and 8 of the 9 pins D-Type connector.
Input signals can be balanced or unbalanced.
D-Type Pin Outs
1 Dynamics Link Signal
2 Dynamics Link 0v
3 Dynamics Link Signal
4 Dynamics Link 0v
5 - Not connected -
6 Key Input Hi
7 Key Input Lo
8 Key Input 0v
9 - Not connected -
Case Connected to Unit Chassis
- 15 -
