88 Series Outboard / 8801 Issue 7.3

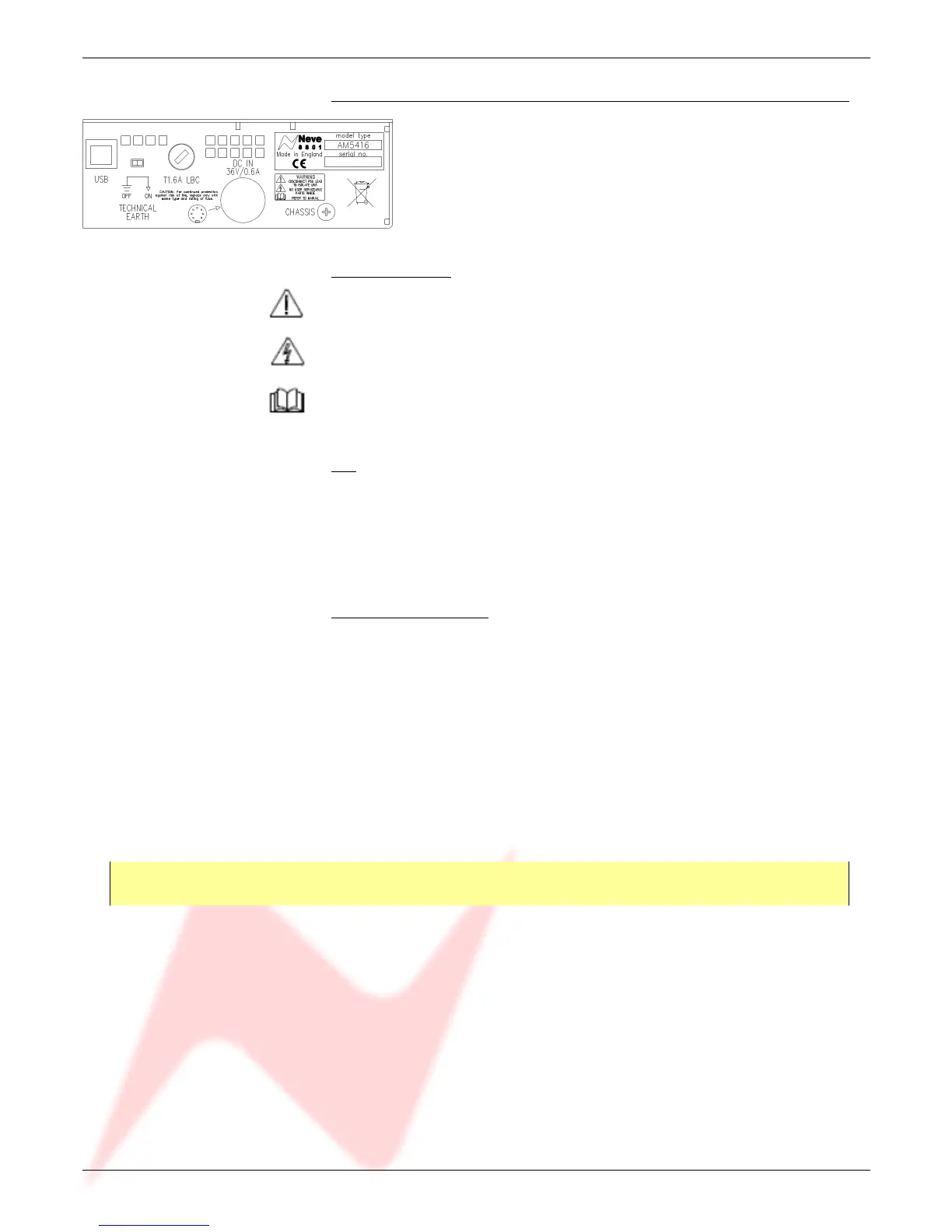

Rear Panel Power section
Warning symbols
There are no user serviceable parts inside the unit.
Disconnect the mains lead to isolate this unit.
Please refer to the manual before operating this unit.
USB
The Type B USB socket is used to connect the 8801 unit to a PC or Mac for
Recall store and recall of the unit settings.
The unit should be connected directly to the computer or via a powered USB
hub but not via a passive USB hub.
Technical Earth Switch
The grounding of the unit can be set to two different points:
1) The Mains earth from the power supply, or
2) The studio technical earth via the CHASSIS screw on the back of the unit.
With the switch in the OFF position the chassis of the unit is connected to the
Mains earth via the power supply.
With the switch in the ON position the chassis of the unit should be
connected to the studio technical earth using the CHASSIS screw on the
back of the unit.
For safety reasons the chassis is NOT disconnected from the main Earth but
is connected through an RC filter.
!!!WARNING!!!! Connections to the technical earth and changes to the unit
grounding should only be carried out by qualified personnel
- 17 -
