5.74 " (145.8)
5.48" (139.2)
4.03" (102.4)
0.50" (12.7)
2.25" (57.1)
5.00" (127.0)
2.88" (73.2)
2.00" (50.8)
Fig. 4

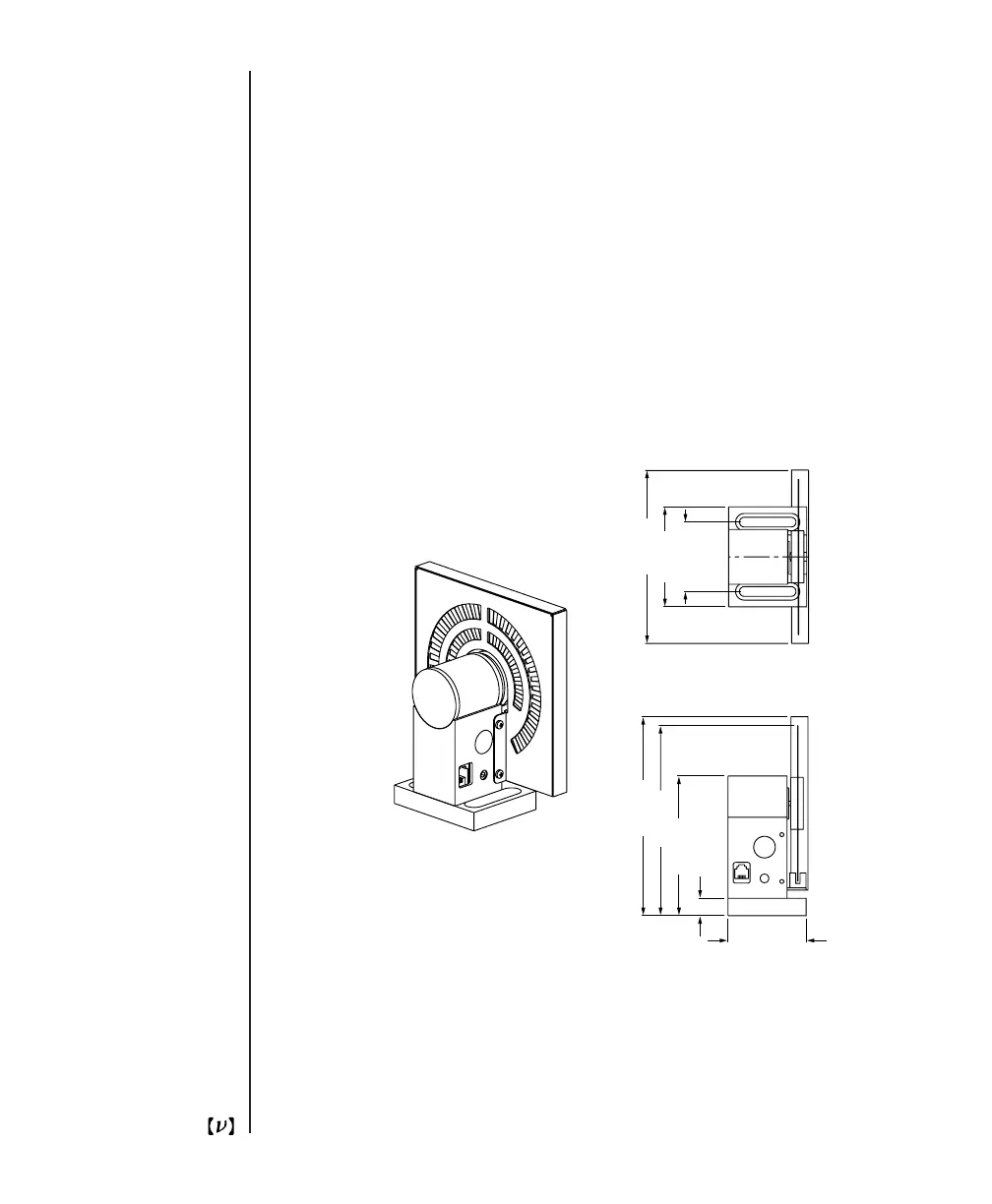

Chopper head with wheel cover.
Chopper Head
Cable
The cable that connects the control unit to the chopper head is a six conduc-
tor reverse RJ11 type IDC telephone cable. Connect the cable from the connec-
tor on the side of the chopper head to the MOTOR connector on the back
panel of the control unit. The instrument has been tested with cable lengths
up to 25 feet, but the chopper is supplied with a shorter cable. Replacement
cables and longer cables may be purchased from electronics parts suppliers
such as Digi-Key (Part # H2662-14-ND).
