New Focus 3501 - 6 Rack Mount Kit

21
The Model 3510 Rack Mount Kit is a chopper accessory (not supplied with the
Model 3501 Optical Chopper) that allows one or two chopper controllers to be
mounted in a standard rack. The kit consists of 2 short ears, 1 long ear, 1 rack

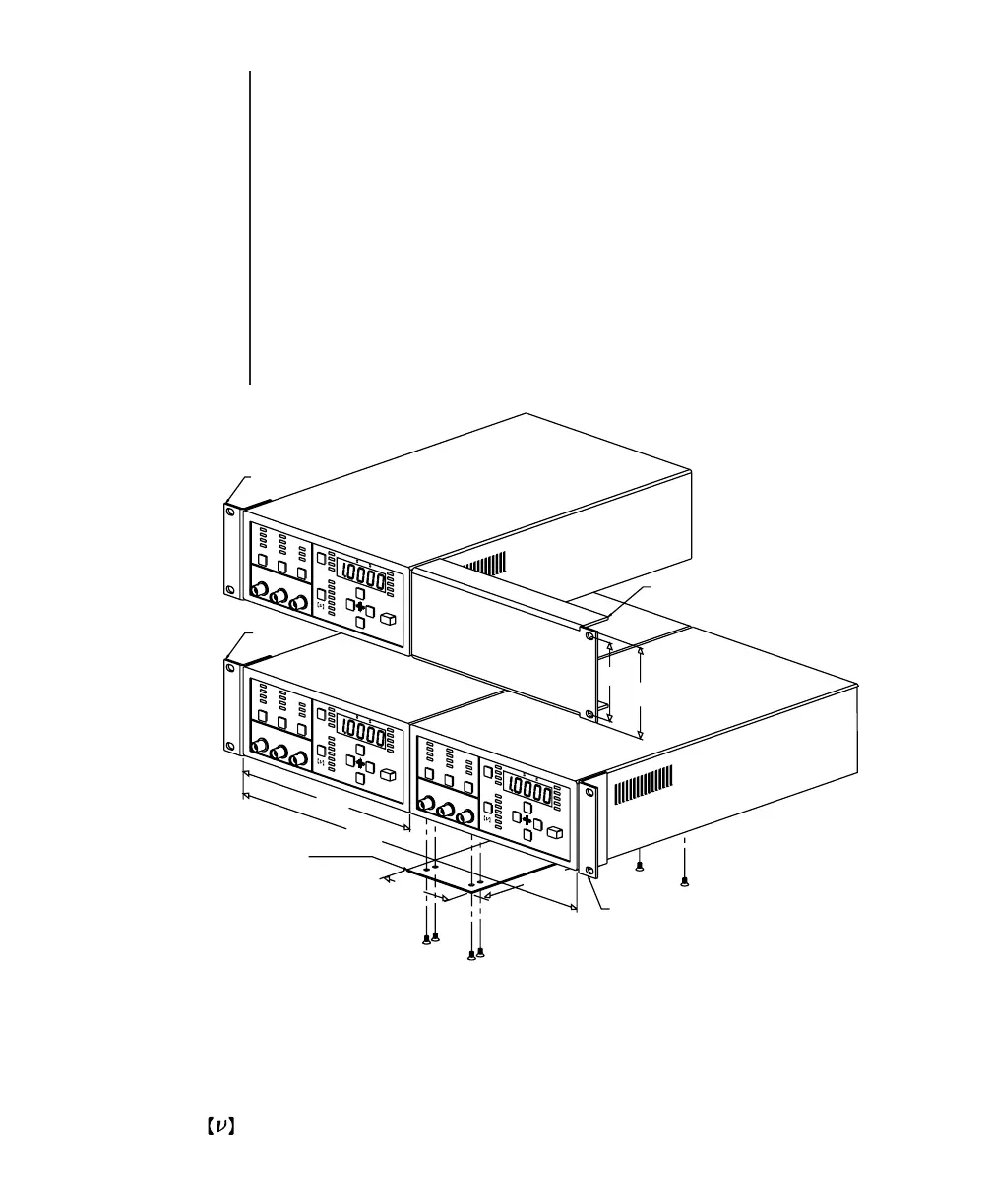

plate, and 6 6-32 flathead screws. The figure below illustrates how to use the
rack mount kit to mount a single chopper controller or two chopper con-
trollers side by side.
VI
Rack
Mount Kit
Short Ear
Short Ear
Short Ear
Rack Plate
(connects two
units together)
8.50"
17.00"
Long Ear
3.30"
12.35"
3.00"
3.48"
NEW FOCUS, Inc.
Made in USA
NEW FOCUS, Inc.
Made in USA
NEW FOCUS, Inc.
Made in USA
#3510 Rack Mount Kit consists of:
2 short ears
1 long ear
1 rack plate
6 6-32 flathead screws
Fig. 6
Model 3510 rack mount kit.
