4 - OPERATING INSTRUCTIONS

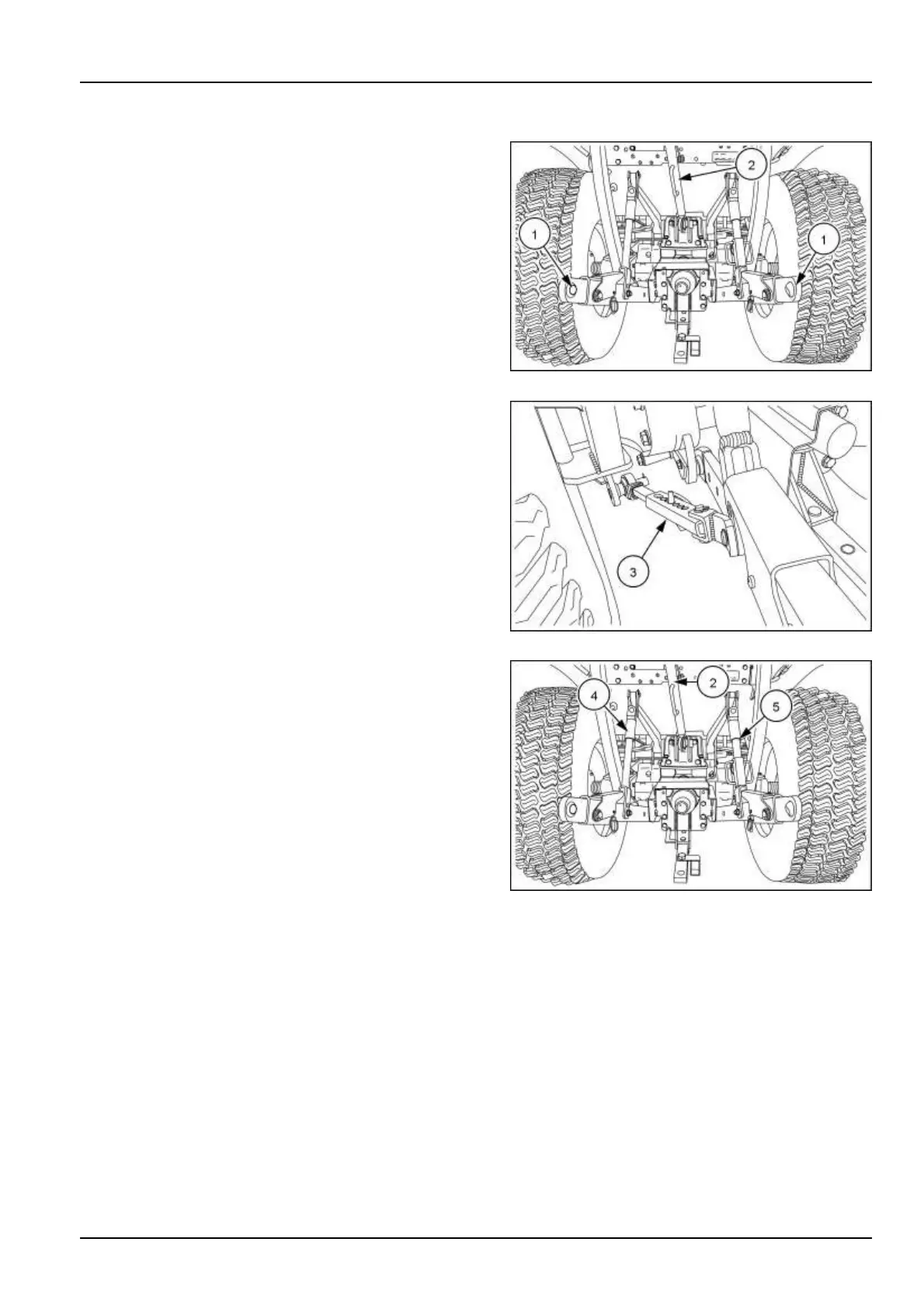

Three-point linkage
The tractor's three-point linkage is used to attach three-
point mounted equipment which is usually PTO operated,
such as rotary mowers, tillers, ail mowers, snowblowers,
etc. The three linkage points are the two lower lift arms
(1) and the top link (2).
NHIL13CT01023AA 1
The three-point linkage has easy to adjust sway bars (3)
on each side of the hitch to control lateral movement of
the lift arms.
NHIL13CT01019AA 2
The length of the top link (2) and the height of the left-hand
(4) and right-hand (5) lift arms can be adjusted to ease the
attachment of implements and to level the implement after
attaching.
NHIL13CT01023AA 3
4-17
