3 - CONTROLS AND INSTRUMENTS
Seat controls - Roll Over Protective Structure (ROPS)
Adjusting the tractor seat
Your tractor is equipped with an adjustable suspension
seat.
To move the seat forward or backwards, raise the adjust-
ment lever (1). Adjust the seat and release the adjustment
lever.
To adjust the seat suspension, turn the weight adjustment
knob (2). Rotate the knob clockwise for a îš¿rmer ride or
counter-clockwise for a softer ride.
NOTE: Before adjusting seat height, release tension on
seat suspension by rotating knob (2) counter-clockwise.
To adjust the seat height, turn the height adjustment
knob (3). Turn the knob clockwise to lower the seat and
counter-clockwise to raise the seat.

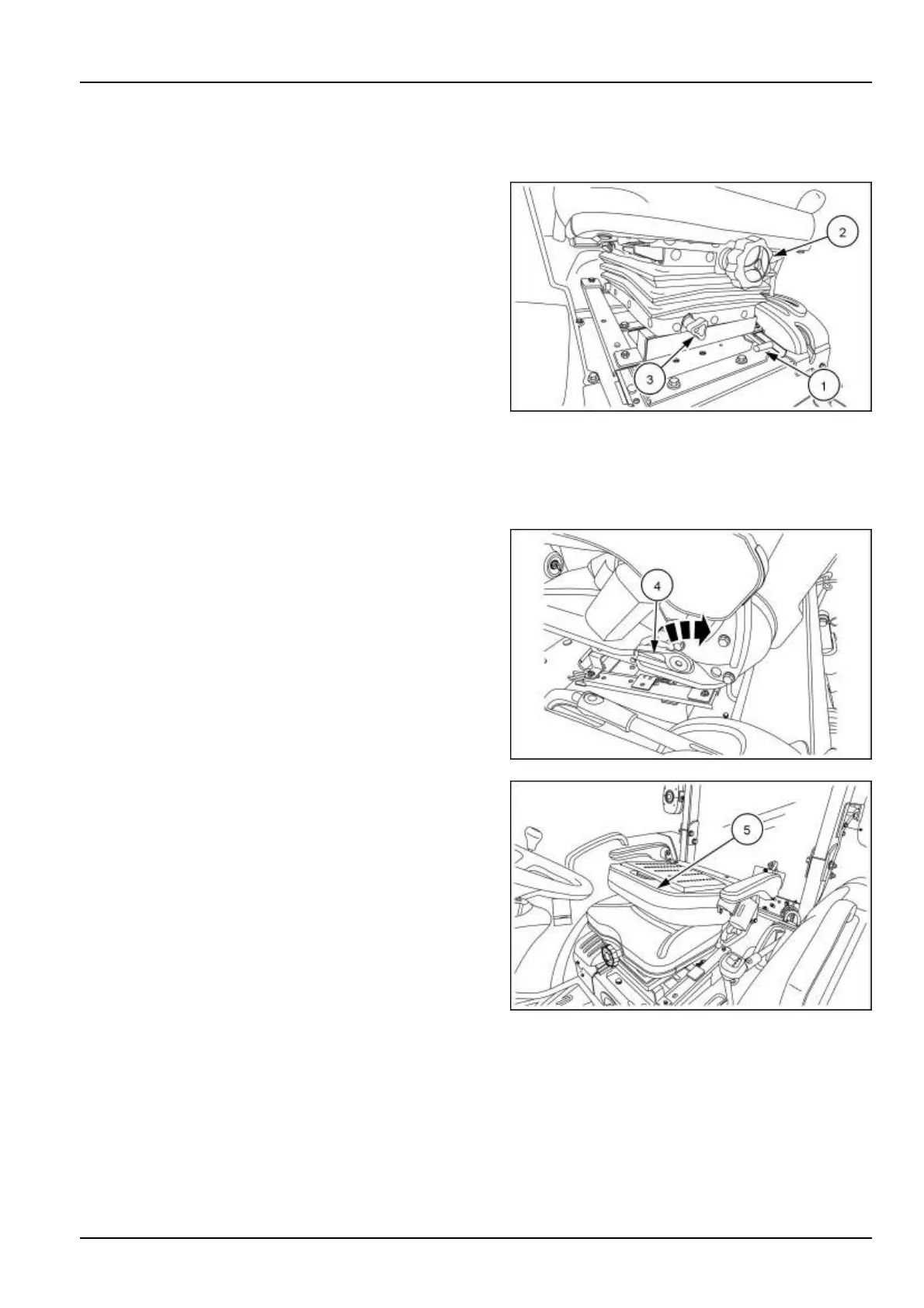

NHIL13CT01016AA 1
Rotate seat back latch (4) rearward to release latch and
allow seat back (5) to tilt forward.
Seat cleaning
For cleaning of vinyl, plastic, and rubber parts, use
"ONLY" a mild car washing soap and water, as described
below:
1. First, remove any loose dirt by rinsing with clean water.
Mix a warm, mild liquid CAR WASHING soap solution
(1 part soap and 99 parts water).
2. Use a sponge or soft cloth; apply the soap solution to
the part.
3. Allow the solution to soak for a few minutes to loosen
the dirt.
4. Finally, rinse the part with clean water to remove the
dirt, and any solution residue.
NOTE: If not all of the dirt comes off, repeat the pro-
cedure.
NHIL13CT01162AA 2
NHIL13CT01164AA 3
