3 - CONTROLS AND INSTRUMENTS
Seat controls - Cab - Suspension seat
WARNING
Loss of control hazard!
DO NOT make seat adjustments while the machine is in motion. All seat adjustment should be made
with the machine stationary and the parking brake applied.
Failure to comply could result in death or serious injury.
W0293A
NOTICE: DO NOT put your hand under the driver’s seat while sitting. It may cause a serious injury by the seat
suspension.
DO NOT adjust the seat position while driving.

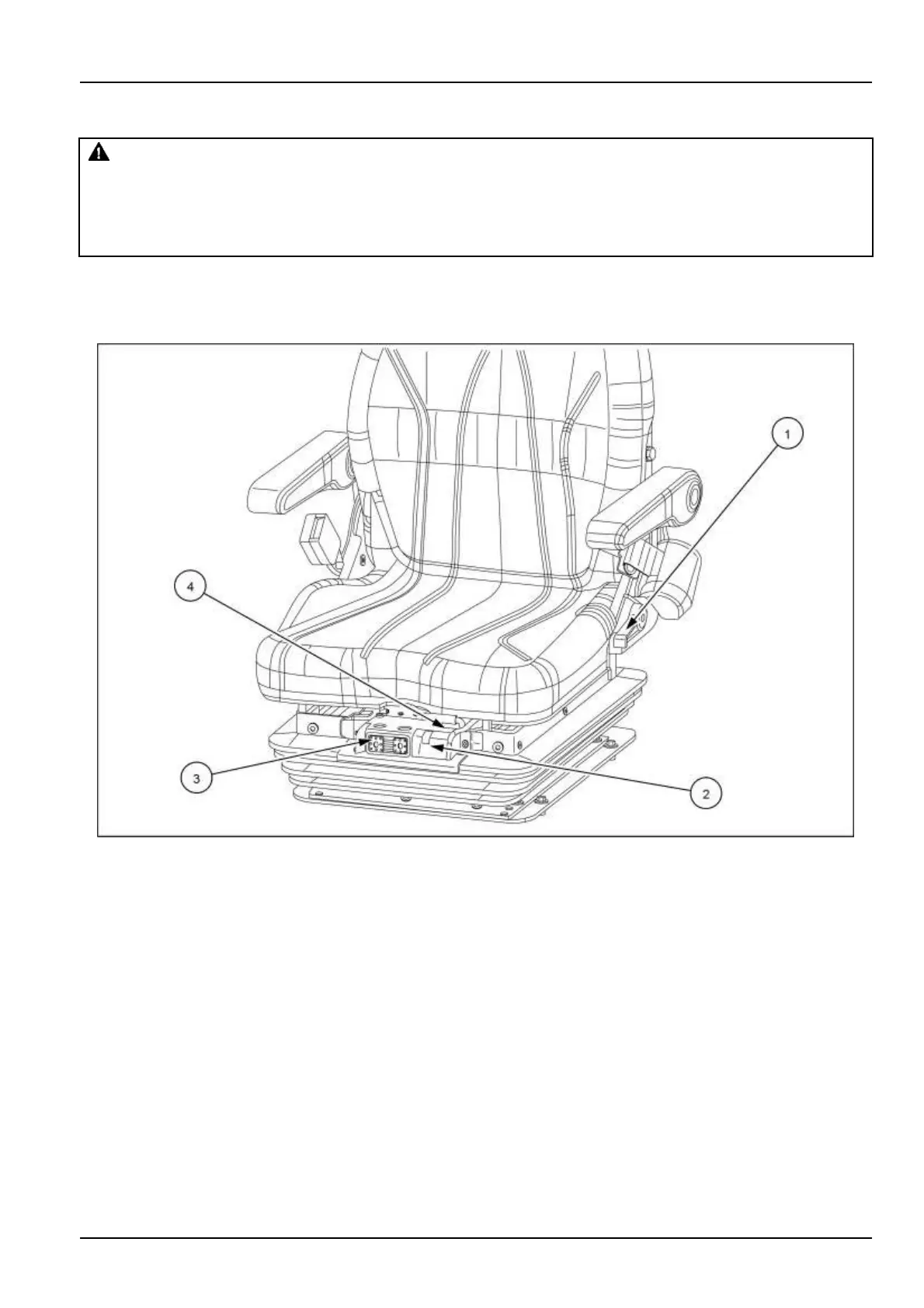

NHIL22CT00232FA 1
Cabin type seat
(1) Back rest angle
adjustment lever
(2) Weight indicator (3) Weight/Height
adjustment switch
(4) Seat F/R adjustment
lever
NOTICE: Before operating the tractor, adjust the position
of the driver’s seat according to your body size and length.
Seat F/R adjustment lever (4)
1. After sitting on the driver’s seat, move the seat F/R
adjustment lever (4) upward to release the lock.
2. Move the driver’s seat forward or backward according
to your body length.
3. Release the seat F/R adjustment lever (4) and check
if the seat is locked in place.
3-7
