24

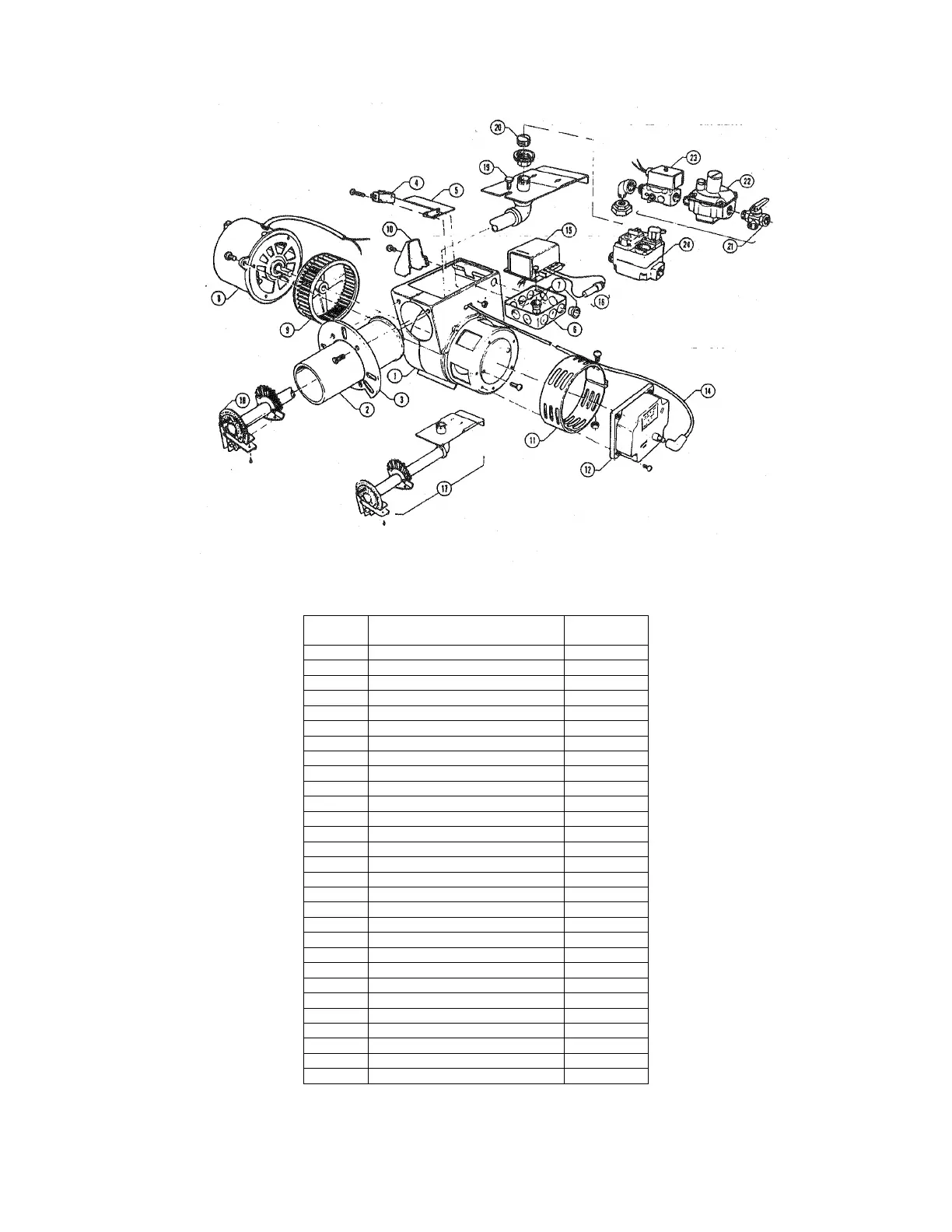

FIG. 16-1E
AERO PGB 220-370 GAS BURNER EXPLODED ASSLY
FIG. 16-1F
AERO PGB 220-370 GAS BURNER PARTS LIST
ITEM
#
PART NAME & DESCRIPTION
AERO #
1
F Housing
9035222400
2
Airtube (5"-8"-11')
3
Mounting Flange (Standard)
2735161000
4
Micro Switch (V3101-D8)
9035061441
5
Sail & Leaf (JV-26)
2735121091
6
"J" Box
2735121091
7
"J" Box Hardware
2735121091
8
Motor (1/7/3450/60/1)
2735251414
9
Fan 524-202 (PGB 220)
2735151200
9a
Fan 524-316 (PGB 370)
2735152016
10
Raceway
2726202550
11
Air Band Assembly
2726200100
12
Ignition Control
9035061311
13
Wiring Harness (not shown)
9035061321
14
High Voltage Cable
9035061301
15
Fan Center
9035061210
16
Fuse Assembly
9026121400
17
Manifold Assembly - ½" PGB 220
17a
Manifold Assembly - ¾" PGB 370
18
Electrode Assembly (S.S.B.)
9026121300
19
Centering Bolt
9035202205
20
Orifice (Input Required)
7235515220
21,22,23
Replaced by Gas Valves
24
Combination Gas Valve (220)
9035061225
24a
Combination Gas Valve (370)
9035061227
24b
Comb. Propane Valve (220/370)
9035061226
Adjustable Flange
2735162000
Base assembly
2735032000
Carton - complete
9035401000
