Newmac CL 86-96C - Furnace Assembly and Parts Lists; Model-Specific Details

29

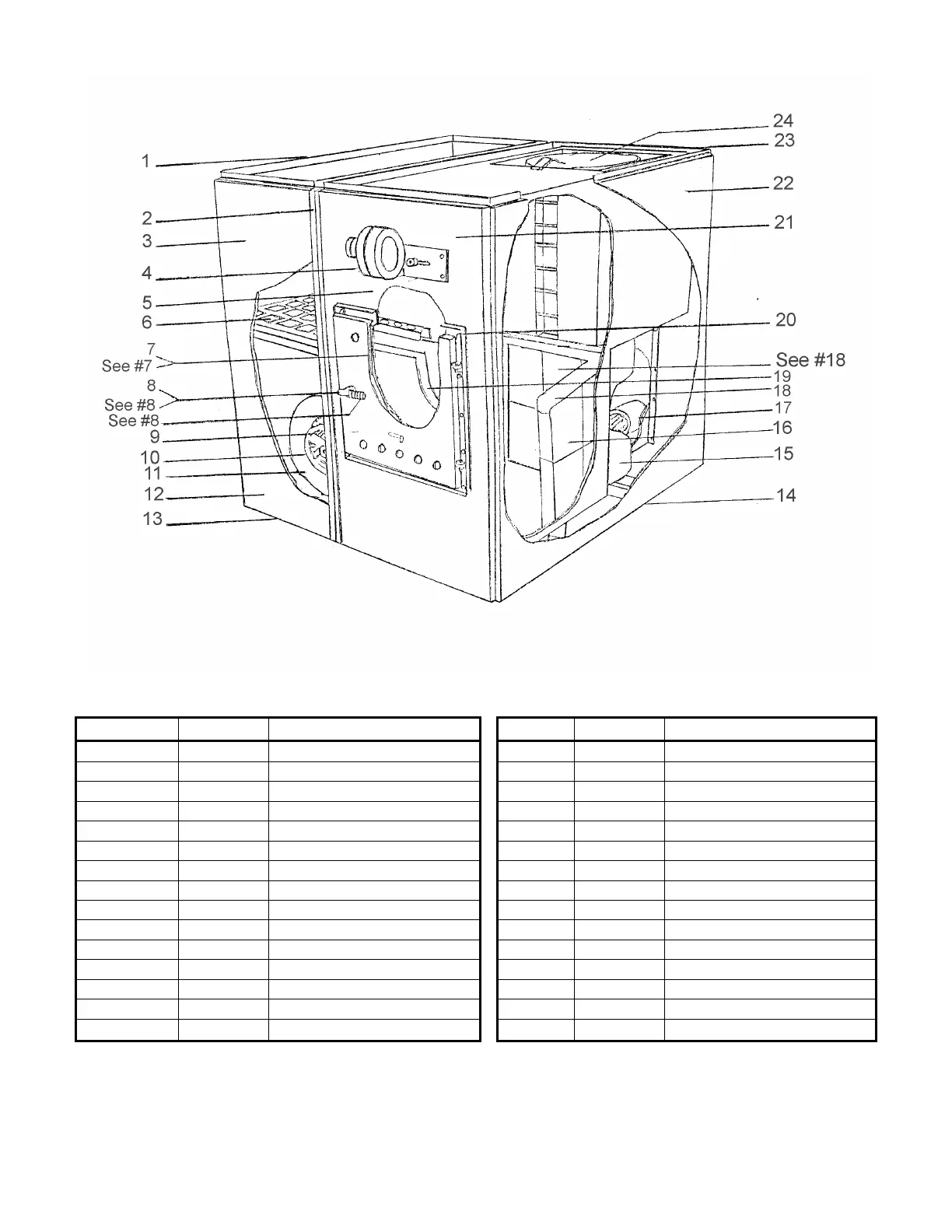

FIG. 17-1A - CL115-170C WOOD/OIL COMBINATION FURNACE ASSEMBLY
FIG. 17-1B - PARTS LIST – CL115-170C
ITEM NO
PART NO
DESCRIPTION
ITEM NO
PART NO
DESCRIPTION
1
4120202
Blower Section Side Panel
16
5110003
Straight Brick 2 ½” X 4 ½” X 9” (Box of 10)
2
4120312
Fan Partition Panel
17
5400047
Aero Burner
3
4120305
Blower Section Small Panel
17
2110128
Beckett Burner
4
2040001
50 CFM Draft Fan
18
4060101
Brick Loc
5
5300012
Slide Plate Assembly
19
4060114
Firedoor Air Chute
6
2180003
Filter 20" X 25" X 1"
20
2080009
Front Gasket
7
5300007
Firedoor Gasket Set
21
4120116
Furnace Section Front Panel
8
5300009
Firedoor Handle Complete
22
4120213
Furnace Section Side Panel
9
5300002
Firedoor Set Complete
23
4120103
Furnace Section Back Panel
10
2240003
Blower Pulley 8” X ¾”
24
4060134
Heat Exchanger
11
2040104
10” Air Circulating Twin Blower
12
4120322
Blower Section Access Panel
13
4120402
Blower Section Base Panel
14
4120409
Furnace Section Base Panel
15
2030001
Corbel Combustion Chamber
