Newmac CL 86-96C - Page 31

30

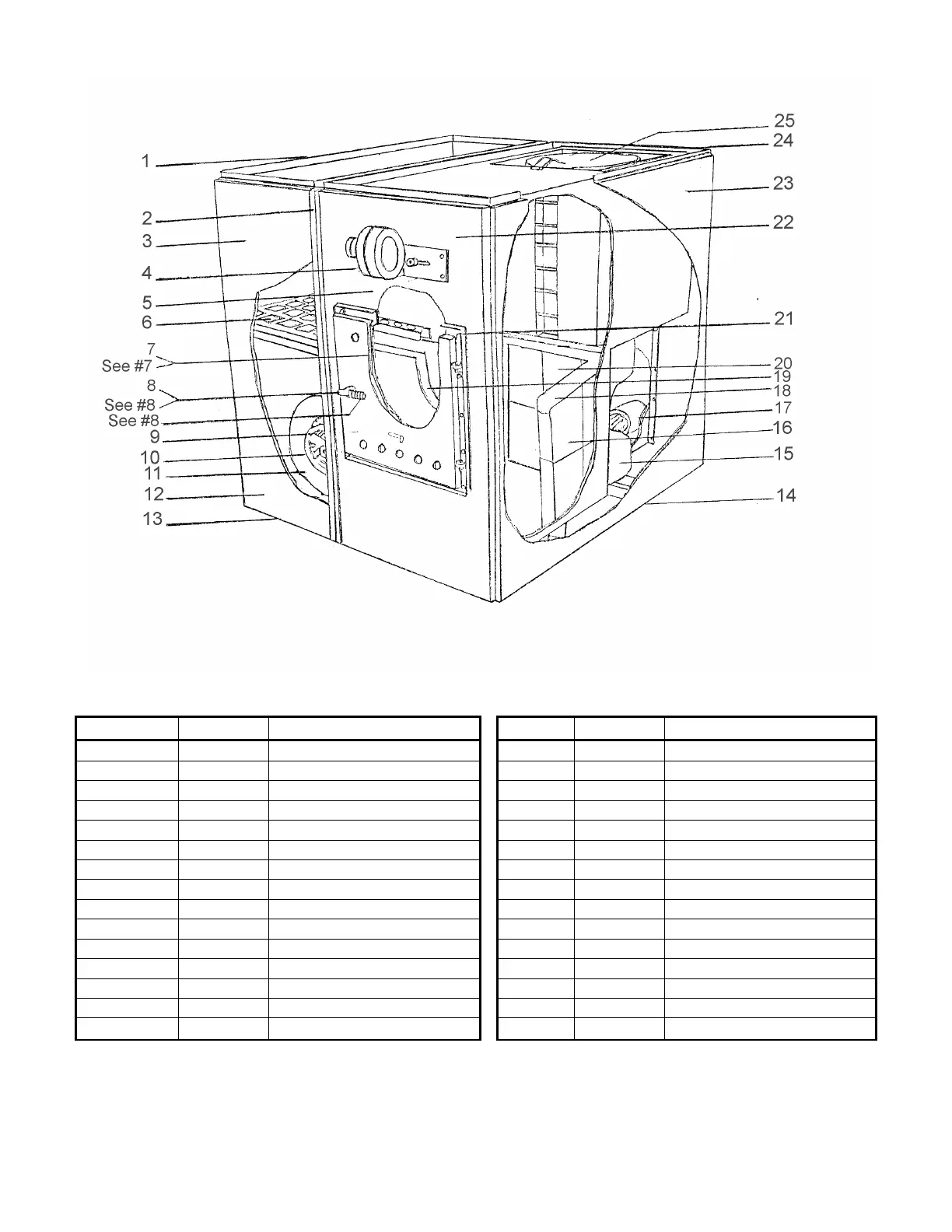

FIG. 17-2A - CL86-96C WOOD/OIL COMBINATION FURNACE ASSEMBLY
FIG. 17-2B - PARTS LIST – CL86-96C
ITEM NO
PART NO
DESCRIPTION
ITEM NO
PART NO
DESCRIPTION
1
4120203
Blower Section Side Panel
16
5110003
Straight Brick 2 ½” X 4 ½” X 9” (Box of 10)
2
4120314
Fan Partition Panel
17
5400048
Aero Burner
3
4120315
Blower Section Small Panel
17
2110126
Beckett Burner
4
2040001
50 CFM Draft Fan
18
4060106
Brick Loc
5
5300012
Slide Plate Assembly
19
4060171
Firedoor Air Chute
6
2180002
Filter 16" X 25" X 1"
20
5110006
Split Brick 1 ¼” X 4 ½” X 9” (Box of 6)
7
5300005
Firedoor Gasket Set
21
2080001
Front Gasket
8
5300009
Firedoor Handle Complete
22
4120120
Furnace Section Front Panel
9
5300001
Firedoor Set Complete
23
4120218
Furnace Section Side Panel
10
2240003
Blower Pulley 8” X ¾”
24
4120104
Furnace Section Back Panel
11
2040105
9” Air Circulating Twin Blower
25
4060143
Heat Exchanger
12
4120323
Blower Section Access Panel
13
4120403
Blower Section Base Panel
14
4120414
Furnace Section Base Panel
15
2030004
Corbel Combustion Chamber
