31

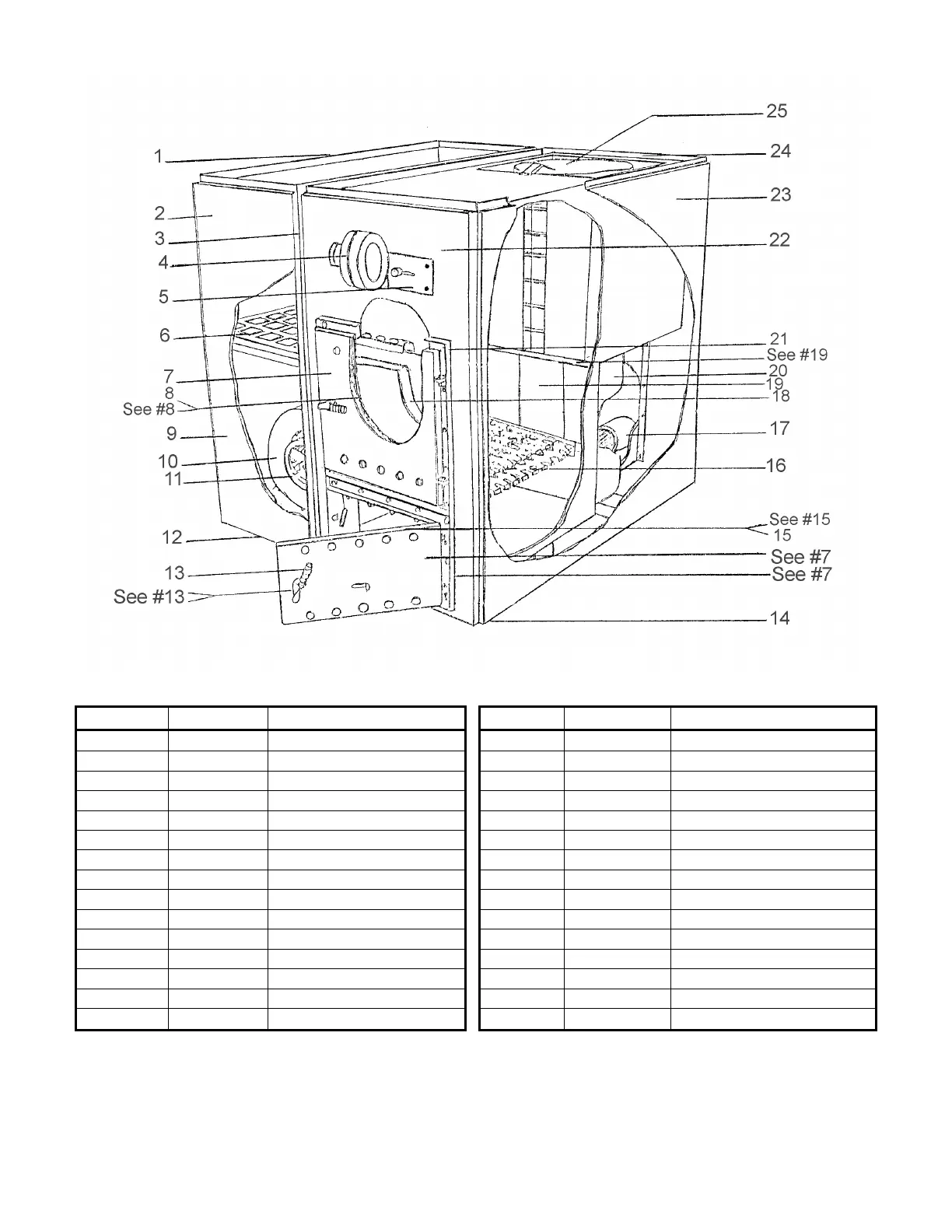

FIG. 17-3A - CL115-170G WOOD/OIL COMBINATION FURNACE ASSEMBLY
FIG. 17-3B - PARTS LIST – CL115-170G
ITEM NO
PART NO
DESCRIPTION
ITEM NO
PART NO
DESCRIPTION
1
4120202
Blower Section Side Panel
16
2170007
Cast Grate
2
4120305
Blower Section Small Panel
17
5400047
Aero Burner
3
4120312
Fan Partition Panel
17
2110128
Beckett Burner
4
2040002
100 CFM Draft Fan
18
4060116
Firedoor Air Chute
5
5300012
Slide Plate Assembly
19
2170009
Cast Liner
6
2180003
Filter 20" X 25" X 1"
20
2030001
Corbel Combustion Chamber
7
5300003
Firedoor/Ashdoor Set Complete
21
2080020
Front Gasket
8
5300007
Firedoor Gasket Set Complete
22
4120117
Furnace Section Front Panel
9
4120322
Blower Section Access Panel
23
4120213
Furnace Section Side Panel
10
2040104
10” Air Circulating Twin Blower
24
4120103
Furnace Section Back Panel
11
2240003
Blower Pulley 8” X ¾”
25
4060138
Heat Exchanger
12
4120402
Blower Section Base Panel
4060128
Ash Pan
13
5300009
Firedoor Handle Complete
3090183
Grate Plate
14
4120409
Furnace Section Base Panel
15
5300008
Ashdoor Gasket Set Complete
