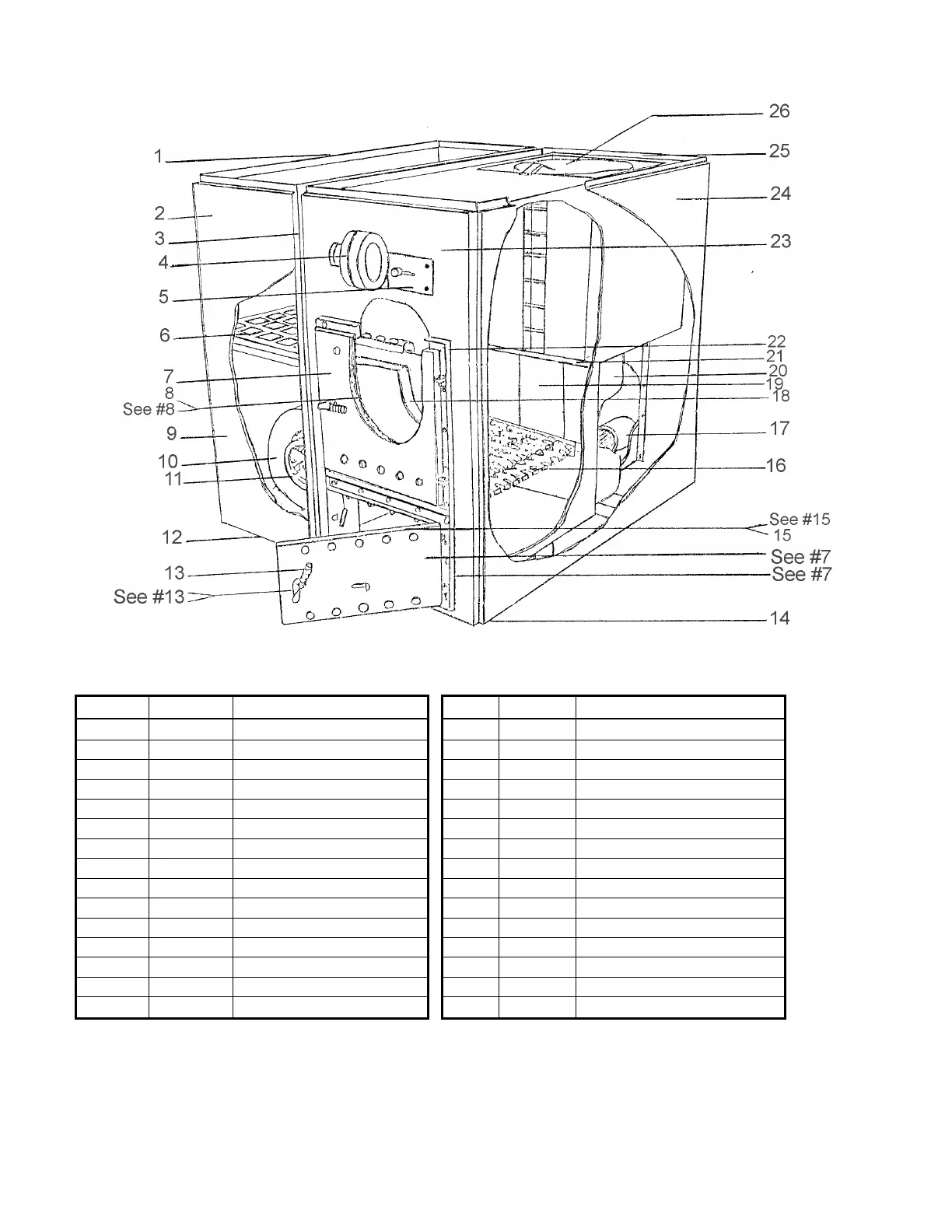

FIG. 17-4A - CL86-96G WOOD/OIL COMBINATION FURNACE ASSEMBLY
FIG. 17-4B - PARTS LIST – CL86-96G
ITEM NO
PART NO
DESCRIPTION
ITEM NO
PART NO
DESCRIPTION
1
4120203
Blower Section Side Panel
16
2170007
Cast Grate
2
4120315
Blower Section Small Panel
17
5400048
Aero Burner
3
4120314
Fan Partition Panel
17
2110126
Beckett Burner
4
2040001
50 CFM Draft Fan
18
4060118
Firedoor Air Chute
5
5300012
Slide Plate Assembly
19
5110006
Split Brick 1 ¼" X 4 ½" X 9" (Box of 6)
6
2180002
Filter 16" X 25" X 1"
20
2030004
Corbel Combustion Chamber
7
5300004
Firedoor/Ashdoor Set Complete
21
4060106
Brick Loc
8
5300005
Firedoor Gasket Set Complete
22
2080016
Front Gasket
9
4120323
Blower Section Access Panel
23
4120119
Furnace Section Front Panel
10
2040105
9” Air Circulating Twin Blower
24
4120218
Furnace Section Side Panel
11
2240003
Blower Pulley 8” X ¾”
25
4120104
Furnace Section Back Panel
12
4120403
Blower Section Base Panel
26
4060142
Heat Exchanger
13
5300009
Firedoor Handle Complete
4060127
Ash Pan
14
4120414
Furnace Section Base Panel
5110003
Straight Brick 2 ½” X 4 ½” X 9” (Box of 10)
15
5300006
Ashdoor Gasket Set Complete
3090182
Grate Plate
