Newmac CL 86C - Page 20

20

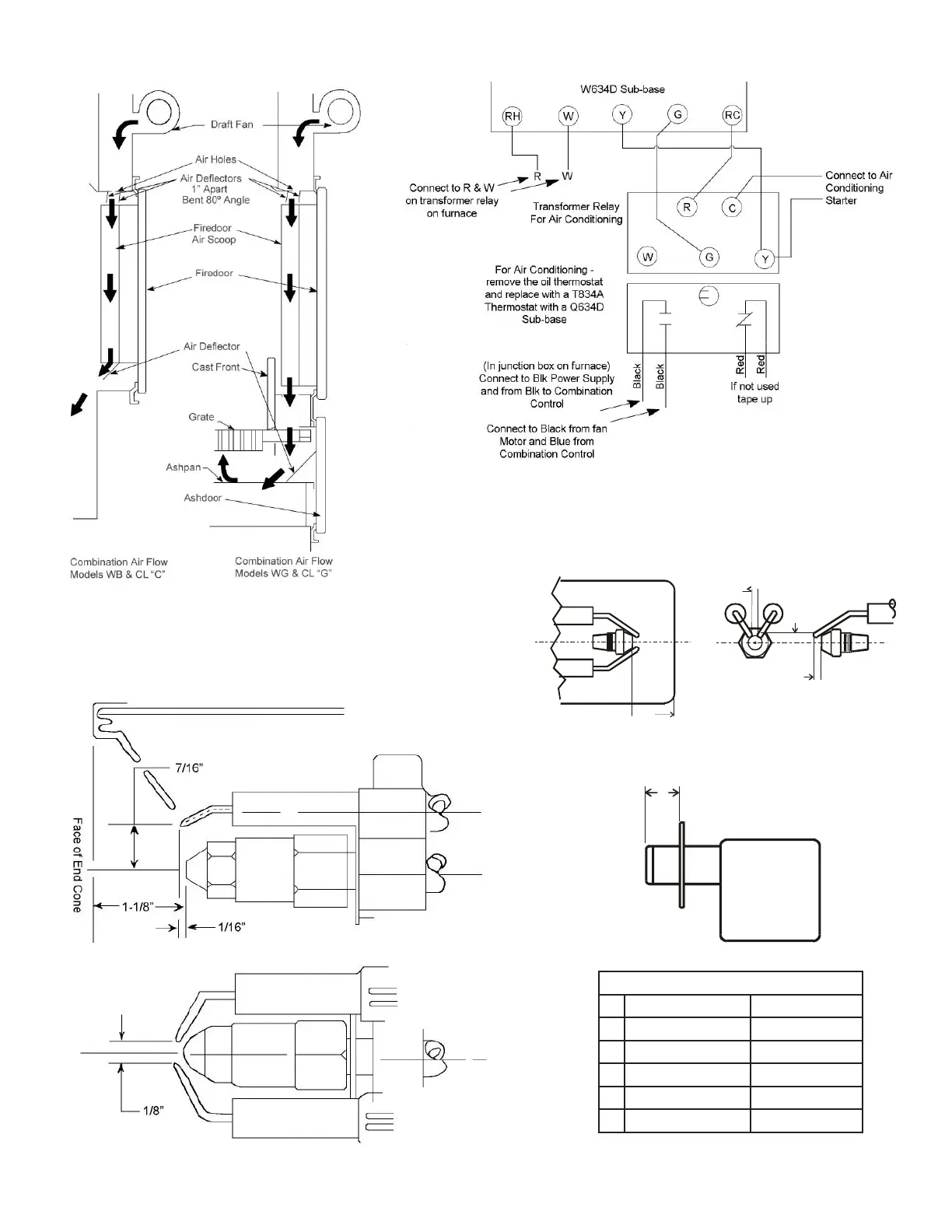

Figure 14 - COMBINATION AIR FLOW Figure 15 - AIR CONDITIONING INSTALLATION
Figure 16A - ELECTRODE SETTING FOR AERO AND BECKETT
Figure 16B - ELECTRODE SETTING FOR RIELLO
Figure 16C - BURNER INSERTION
Z
A
B
C
E
DIMENSIONAL RELATIONSHIPS
AERO & BECKETT RIELLO
A 1/8” 5/32”
B 7/16” 13/64”
C 1/16” 5/64” to 7/64”
Z 1-3/8” -
E 7 7/8” 7 1/2
Figure 16D
