PPA5xx/15xx user manual
3-4

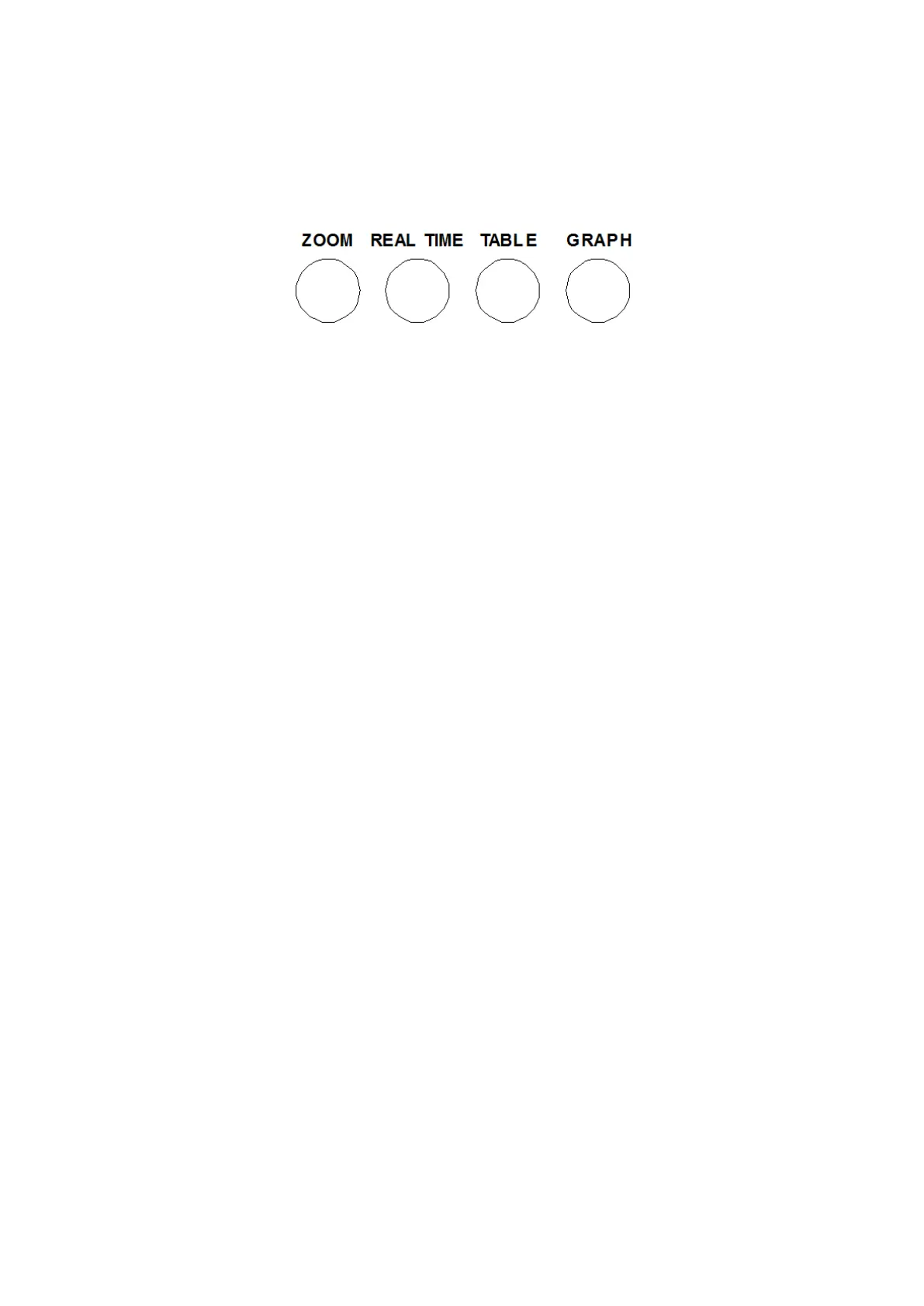

3.3 Display Control Keys
PPA15xx
ZOOM - up to 4 displayed values may be emphasized.
a. Press ZOOM to display data in zoom level 2.
b. Press ZOOM twice more to move through zoom
level 3 to no zoom.
c. Press DELETE to clear the selection.
d. Position the flashing box over the data to be
emphasized using the UP, DOWN, L and R menu
control keys.
e. Press ENTER to confirm (flashing stops).
f. Continue to select up to a total of 4 values.
g. Press ZOOM to display emphasized values as
desired.
(Diagram below shows top zoom level for Power
Analyzer.)
