DESIGN OF TRINO ZOOM STEREO MICROSCOPE
3
DESIGN OF TRINO ZOOM STEREO MICROSCOPE
3
Attaching the trinocular viewing head

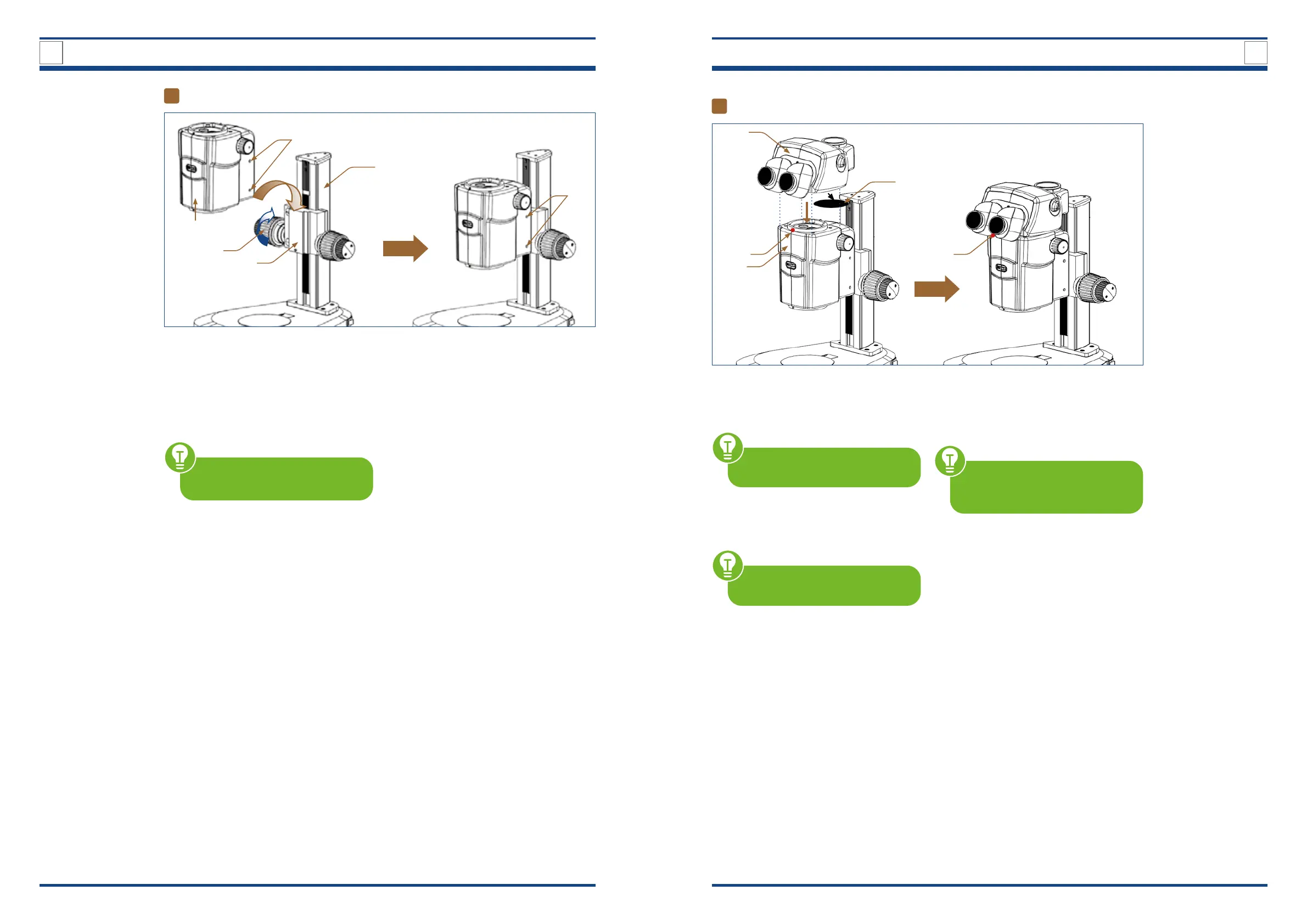

IIllustration 006: Attaching the trinocular viewing head.
III
II
IV
I I
Completely loosen the viewing head hol-
ding screw (I).
USE the supplied hexagonal
screwdriver.
If present, pull off the black protective
cap (II) from the tube lens at the bottom
of the trinocular head (III).
MAKE SURE not to touch any
optical lenses.
Place the trinocular viewing head (III)
into the round dovetail of the zoom unit
(IV) so that the eyepieces are in front.
ENSURE CORRECT ALIGNMENT
along the microscope body (blue
lines).
Fasten the viewing head by tightening
the viewing head holding screw.
2
Mounting the zoom unit
IIllustration 005: Attaching the zoom unit.
III
IV
IV
II
I
V
Turn the coarse focusing knob (I) to pla-
ce the holder for the zoom unit (II) to the
upper range of the stand column (III).
Loosen the two set screws (IV) on the
right side of the zoom unit (V).
USE the supplied hexagonal
screwdriver.
Place the dovetail groove of the zoom
unit onto the dovetail of the holder for
the zoom unit.
Firmly tighten the two set screws.
