GENERAL DESCRIPTION
USER MANUAL LOAD1_80
DATE: 30/08/00 12:48
Configuration
Global architecture is based upon a full 24 bit audio path with 48-bit core calculator running at 100
Million Instructions per Second. Featuring:
n 2 analogue inputs (balanced) 24 bit resolution ADC
n 4 analogue outputs (balanced) 24 bit resolution DAC
n 4 sense inputs (unbalanced) 18 bit resolution ADC

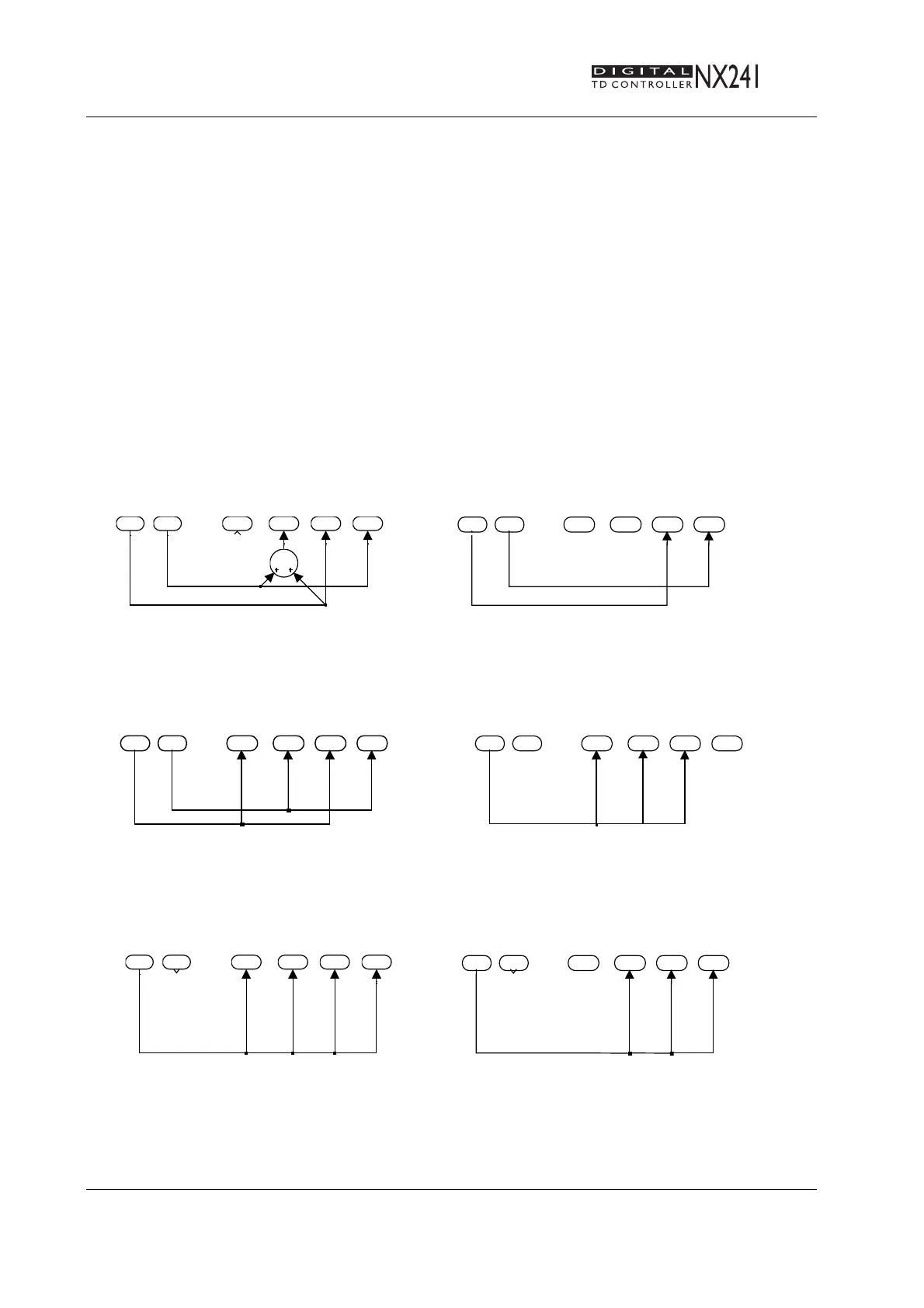

Set-up configurations possible:
n STEREO PASSIVE MODE WITH (or Without) MONO SUB (2 independent passive cabinets)
L R LSUB R
432121
L R L R
432121
n STEREO PASSIVE MODE WITH STEREO SUB & MONO PASSIVE WITH 2 SUBS
L R
SUB L
SUB R L R
432121
L R
SUB 1
SUB 2
MAIN
4 3 2121
n ACTIVE 4 WAY & ACTIVE 3WAY (MONO)
L R
L
LF MF HFSUB
432121
L R
L
LF MF HFSUB
432121
