Next Level Racing FLIGHT STAND PRO - Page 23

23
Video Instruction: bit.ly/nlrbuild
PARTS:
• • 4 x M8 16mm Sockethead Bolts
• • 4 x M8 Washers
34

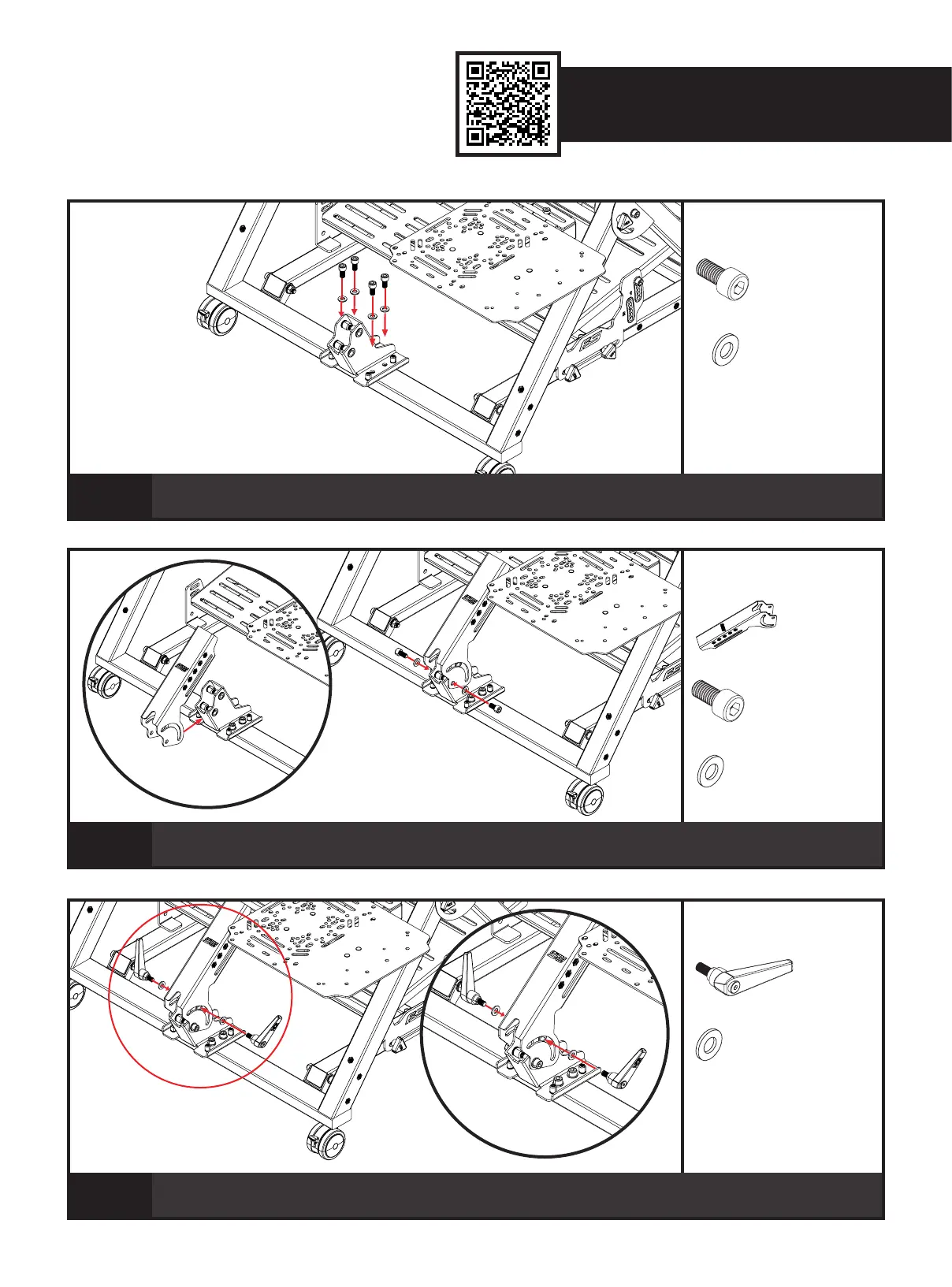

Bolt through and secure with 4 x M8 Bolts and Washers.
PARTS:
• • 1 x HOTAS Swivel Bracket
• • 2 x M8 16mm Sockethead Bolts
• • 2 x M8 Washers
35
A) Align the mounting holes on the HOTAS Swivel Bracket with the threaded inserts on the HOTAS Mounting Bracket
B) Bolt through and secure with 2 x M8 Bolts and Washers.
PARTS:
• • 2 x M8 12mm Ratchet Handles
• • 2 x M8 Washers
36
Align the curved slots on the HOTAS Swivel Bracket with the threaded inserts on the HOTAS Mounting
Bracket. Bolt through and secure with 2 x M8 Ratchet Handles and Washers.
A) B)
