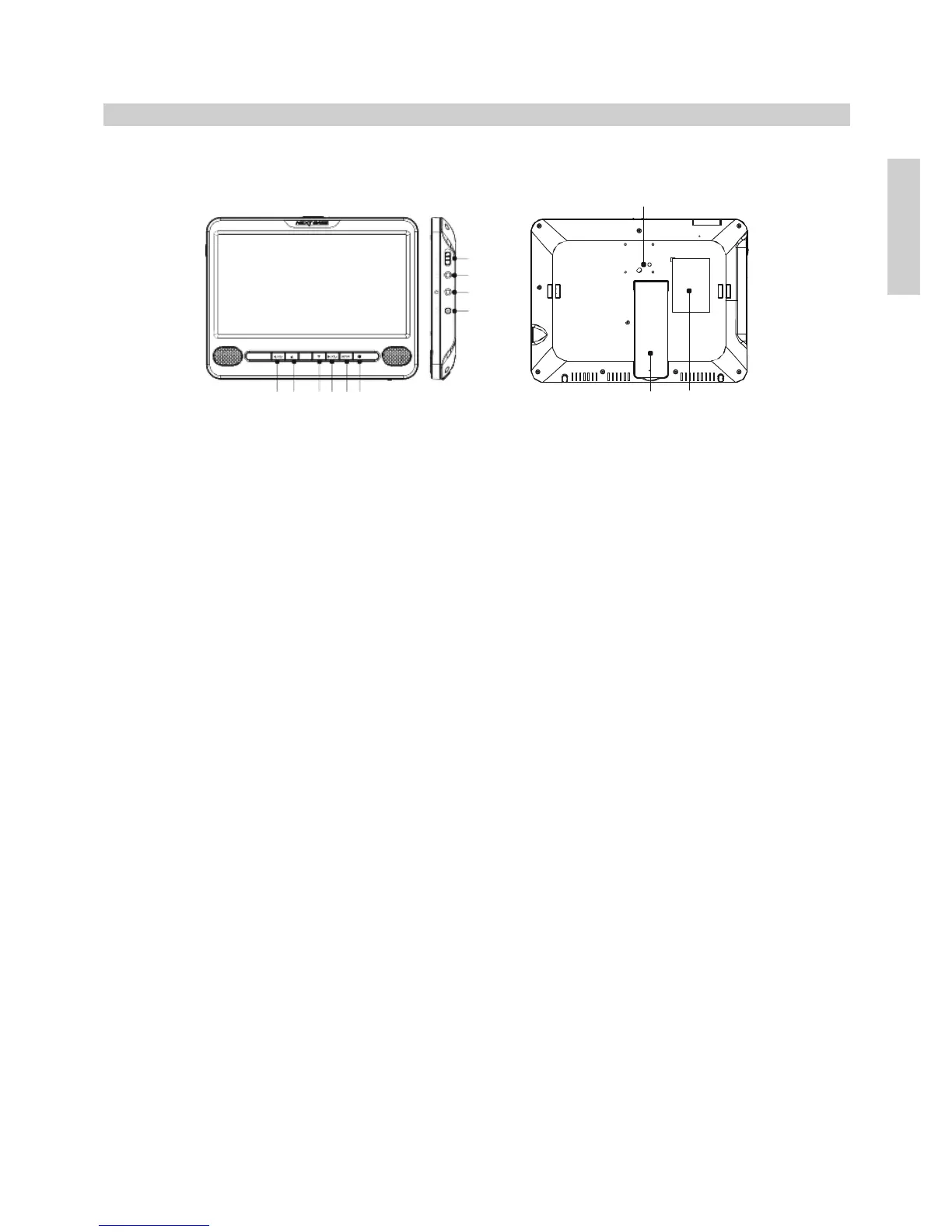

1. Fixing points for easy fit car mount bracket
Fixing points to secure the supplied car mount bracket.
See page 15 for further information.
2. Product Rating label
Product details, model name etc to be found here.
3. Monitor stand
Pull out stand from the bottom to use monitor outside of vehicle.
Monitor stand will not be accessible when the car mount player bracket is attached.
4. On / Off switch
Move button up to turn ON the monitor and down to turn OFF.
5. Earphone socket
Connect earphones here, note that connecting earphones will mute the speakers.
6. AV In socket
Socket for the audio / video connector of the connection cable supplied with the ‘T’
(player/monitor) models.
See page 17 for further information.
7. DC IN socket
Socket for the power connector of the connection cable supplied with the ‘T’
(player/monitor) models.
See page 17 for further information.
8. Power LED indicator
LED will be illuminated (red) when power is supplied to the monitor.
9. Setup
Press to enter monitor settings menu to adjust:
Brightness / Contrast / Colour / Language / Zoom / Reset..
Use the navigation buttons on the front of the monitor to select & adjust as required,
press SETUP to exit the menu.
