Nexus AUTOPILOT - Drive Unit and Pumpset Installation

44
9.8 Linear drive
For installation and specification, see separate manual.

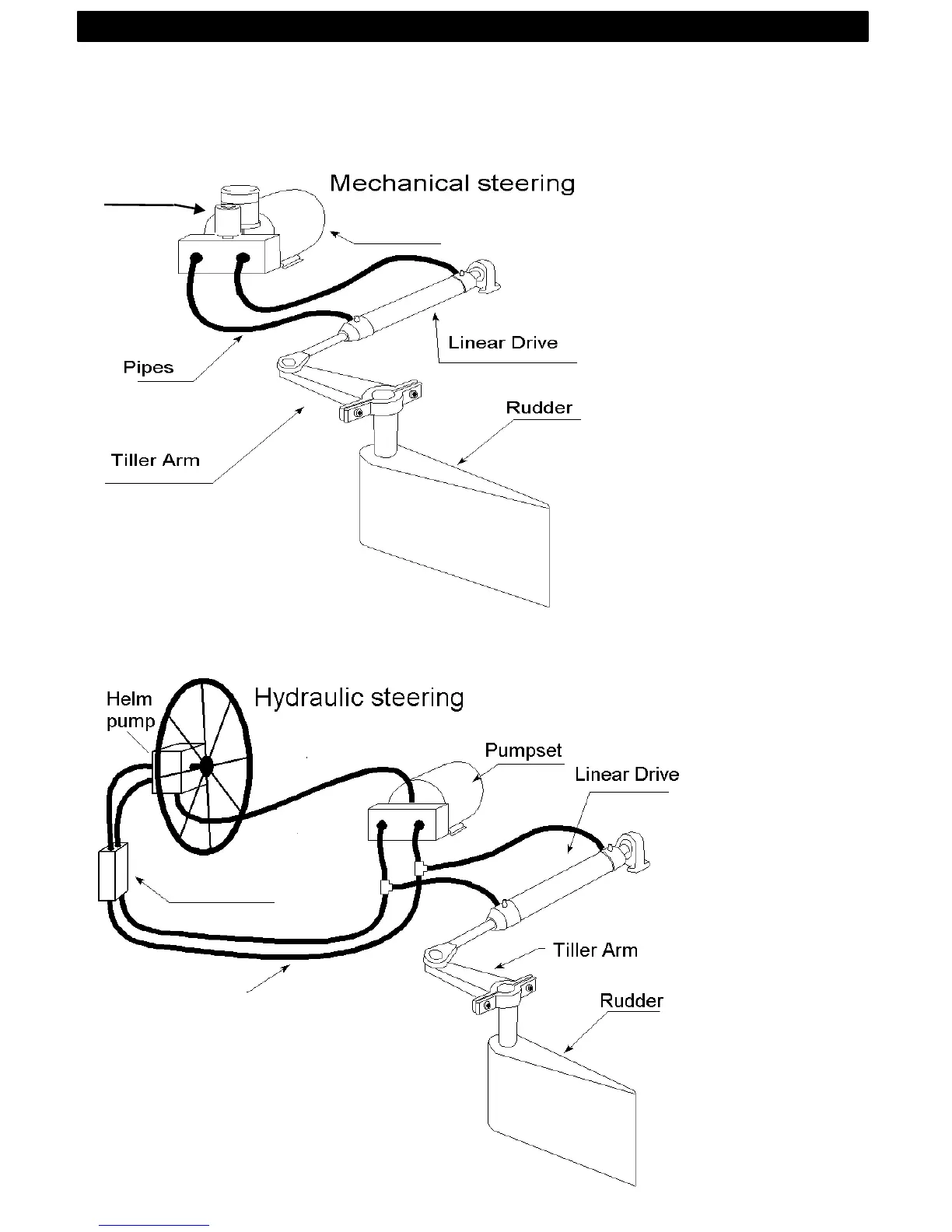

Figure 1: Typical installation on a boat with mechanical steering, in-
cluding Pumpset PF-0,3S with solenoid.
Figure 2: Typical installation on a boat with hydraulic steering, including
Pumpset PF-0,3.
9.9
INSTALLATION
Solenoid
Hydraulic
Pipes
Solenoid or
block valve
Hydraulic
Pipes
