System description
General
EVC 13 has outdoor temperature controlled boiler temper-
ature, which is why a shunt valve is not needed. Outdoor
temperature sensor supplied. The power is connected and
disconnected using two contactors and two relays.
EVC 13 has an integrated circulation pump, expansion
vessel, safety valve, drain valve, load monitoring input for
centralised load control.
Current regulations require the heating installation to be
inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person and should
be documented.
The above applies to electric boilers with a closed expan-
sion vessel. If the boiler or the expansion vessel is replaced,
the installation must be inspected again.

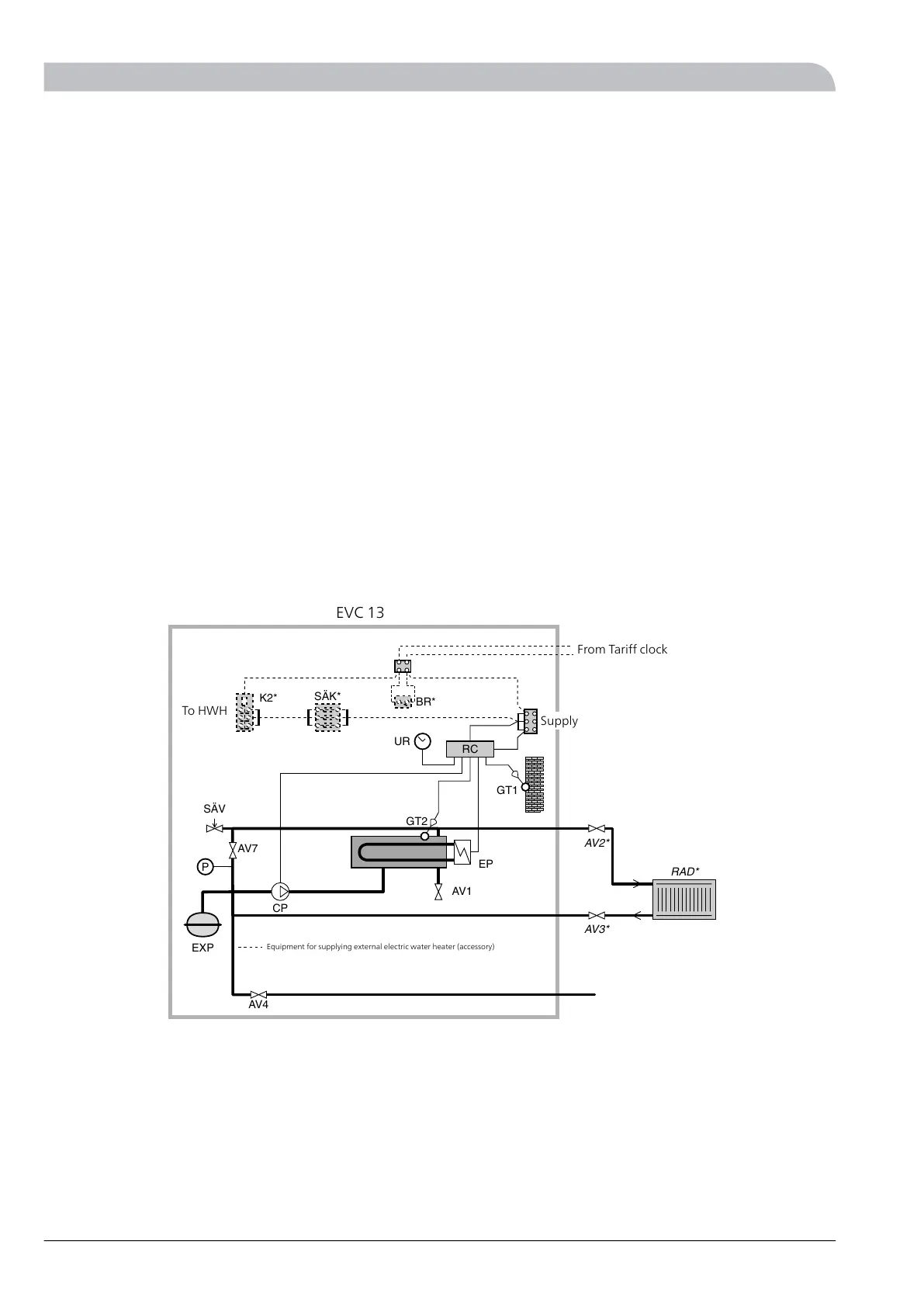

Principle of operation
Explanation
Outside sensorGT1
Boiler/supply temperature sensorGT2
Safety valve, boilerSÄV
Expansion vesselEXP
Tapping valveAV1
Shut-off valve, radiator circuit supply lineAV2*
Shutoff valve in radiator circuit return lineAV3*
Filler valveAV4
Pressure controlled bypass valveAV7
Circulation pumpCP
Immersion heaterEP
Heating control systemRC
Connection clockUR
Contactor tariff control of electric water heaterK2*
Bypass of tariff controlBR*
Miniature circuit-breaker groupSÄK*
Radiator circuitRAD*
*Not included in standard delivery
RAD*
P
GT1
SÄV
GT2
CP
RC
Till VVB
EXP
AV1
AV3*
AV2*
EP
UR
Matning
EVC 13
Från tariffur
K1
K2*
BR*
SÄK*
Utrustning för matning av yttre elvattenvärmare (tillbehör)
Vedenlämmittimeen
Syöttö
Tariffikellosta
K1
Laite ulkoisen vedenlämmittimen syöttöä varten (lisävaruste)
AV7
AV4
RAD*
P
GT1
SÄV
GT2
CP
RC
EXP
AV1
AV3*
AV2*
EP
UR
AV5
AV6
EVC 13
K2*
BR*
SÄK*
AV7
AV4
From Tariff clock
Equipment for supplying external electric water heater (accessory)
Supply
To HWH
EVC 13
EVC 134
English
System description
