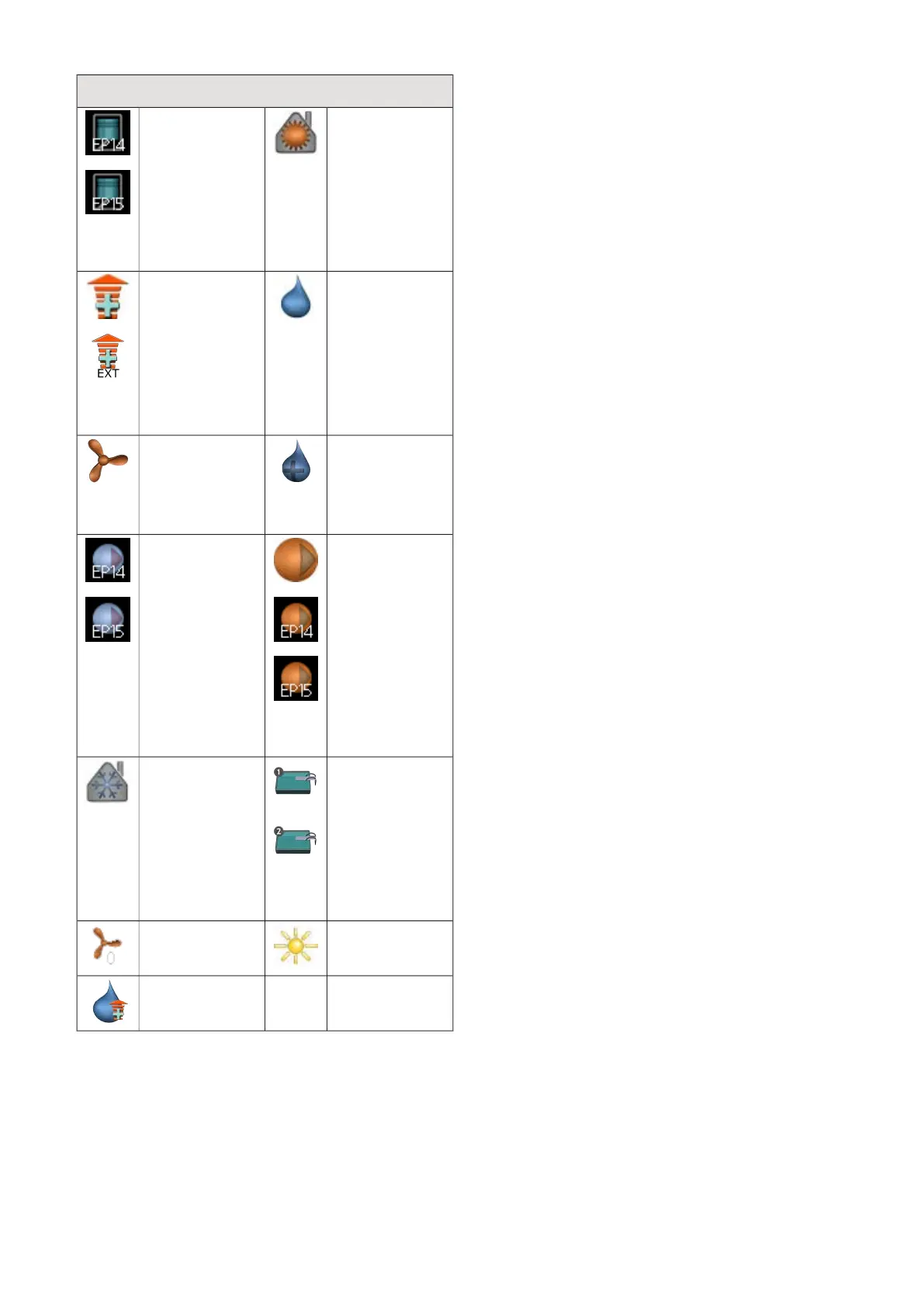

Symbols in this menu:
Heating
A digit displays
how many com-
pressors (if more
than one) are cur-
rently working
with heating oper-
ation.
Compressors
EP14/EP15 (cool-
ing module) dis-
plays which com-
pressor is operat-
ing.
Hot water
A digit displays
how many com-
pressors (if more
than one) are cur-
rently working
with hot water
charging.
Internally connec-
ted external addi-
tional heat and ex-
ternal additional
heat connected
via accessory.
Shows that there
is electric addition-
al heat in a water
heater, where ap-
plicable.
Ventilation (only
shown with ex-
haust air installa-
tion)
Heating medium
pumps (orange)
EP14/EP15 (cool-
ing module) dis-
plays which circu-
lation pump is op-
erating.
Brine pumps
(blue)
EP14/EP15 (cool-
ing module) dis-
plays the circula-
tion pump that is
operating, if more
than one brine
pump is connec-
ted to the heat
pump.
Pool
A digit displays
how many com-
pressors (if more
than one) are cur-
rently working
with pool heating.
Cooling
A digit displays
how many com-
pressors (if more
than one) are cur-
rently working
with cooling oper-
ation.
Solar accessoryVentilation
Additional heat in
tank
MENU 3.2 - COMPRESSOR INFO
Information about the compressors' operating status
and statistics in the installation can be obtained here.
No changes can be made.
If several heat pumps are connected as master/slave,
information about the other heat pumps' compressors
is also shown in a tab system.
This menu is also set in the slave heat pump's limited
menu system.
MENU 3.3 - ADD. HEAT INFO
Information about the additional heat's settings, operat-
ing status and statistics can be obtained here. No
changes can be made.
The information is on several pages. Turn the control
knob to scroll between the pages.
MENU 3.4 - ALARM LOG
To facilitate fault-finding the heat pump operating status
at alarm alerts is stored here. You can see information
for the 10 most recent alarms.
This menu is also set in the slave heat pump's limited
menu system.
To view the run status in the event of an alarm, mark
the alarm and press the OK button.
MENU 3.5 - INDOOR TEMP. LOG
Here you can see the average temperature indoors week
by week during the past year. The dotted line indicates
the annual average temperature.
The average outdoor temperature is only shown if a
room temperature sensor/room unit is installed.
When an exhaust air module (NIBE FLM) is installed,
the exhaust air temperature is shown.
To read off an average temperature
1.
Turn the control knob so that the ring on the shaft
with the week number is marked.
2.
Press the OK button.
3.
Follow the grey line up to the graph and out to the
left to read off the average indoor temperature at
the selected week.
4.
You can now select to take read outs for different
weeks by turning the control knob to the right or left
and read off the average temperature.
5.
Press the OK or Back button to exit read off mode.
NIBE F1345Chapter 3 | Control - Menus22
