Caution
In systems with several heat pumps, each
pump is allocated a unique ID. In other words,
only one heat pump can be "master" and only
one can be "slave 5".
MENU 5.2.2 - INSTALLED SLAVES
Set which slaves are connected to the master heat
pump.
If one or more air/water heat pumps are connected to
the control module, you set it here.
There are two ways of activating connected slaves. You
can either mark the alternative in the list or use the
automatic function "search installed slaves".
search installed slaves
Mark “search installed slaves" and press the OK button
to automatically find connected slaves for the master
heat pump.
NOTE
Before these settings are made, each slave
must have received a unique ID (see menu
5.2.1).
MENU 5.2.3 - DOCKING
Enter how your system is docked regarding pipes, for
example to pool heating, hot water heating and heating
the building.
This menu has a docking memory which means that the
control system remembers how a particular reversing
valve is docked and automatically enters the correct
docking the next time you use the same reversing valve.

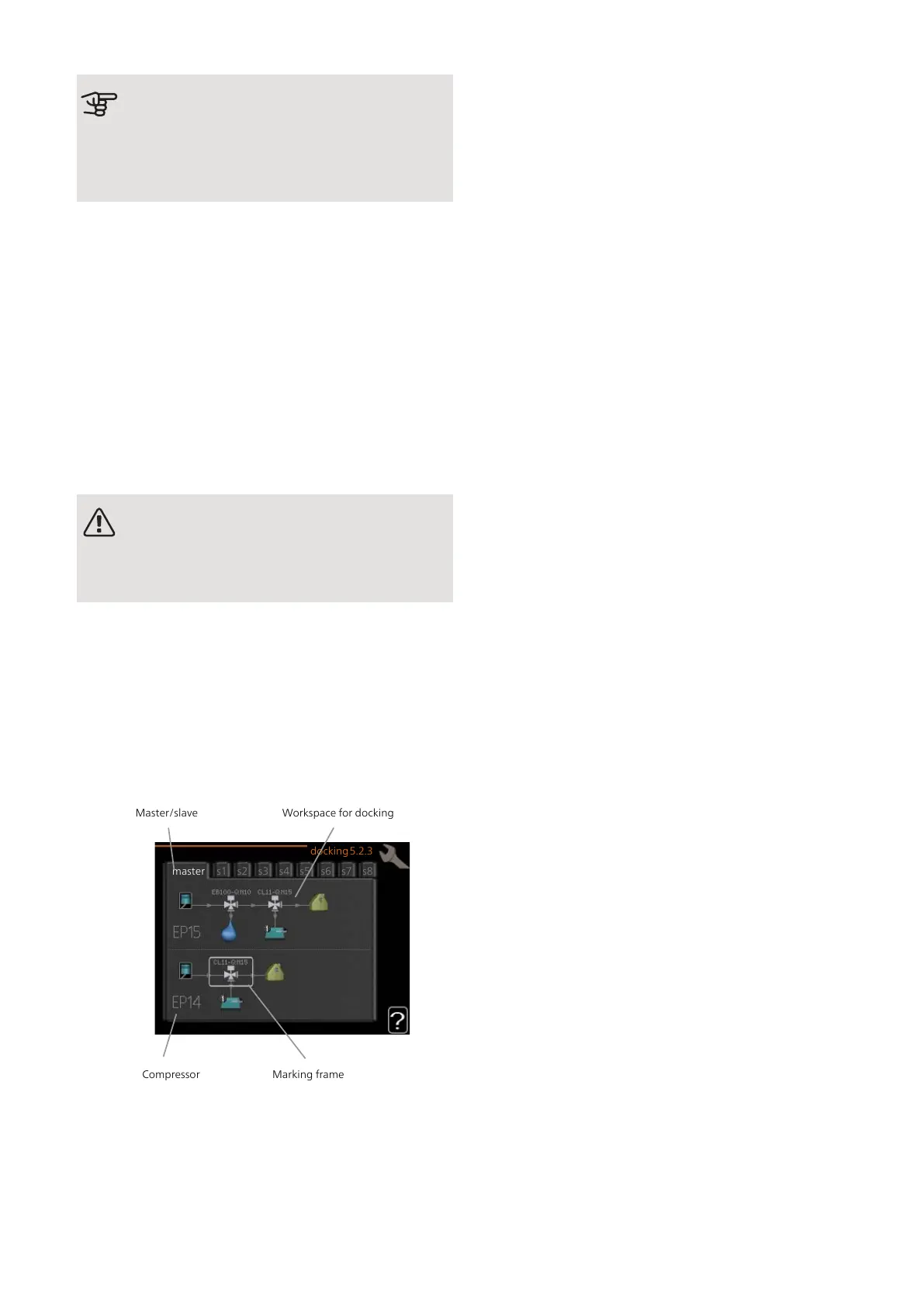

s1
master
docking5.2.3
s2 s3 s4 s5 s6 s7 s8
Marking frameCompressor
Master/slave Workspace for docking
Master/slave: Select the heat pump for which the
docking setting is to be made (if there is only one heat
pump in the system, only master is displayed).
Compressor: Select here if your compressor (EP14 or
EP15) is blocked (factory setting), externally controlled
via soft input or standard (docked for example to pool
heating, hot water charging and heating the building).
Compressor: Here, you select whether the compressor
in the heat pump is blocked (factory setting) or standard
(docked, for example, to pool heating, hot water charging
and heating the building).
Marking frame: Move around the marking frame using
the control knob. Use the OK button to select what you
want to change and to confirm the setting in the options
box that appears to the right.
Workspace for docking: The system docking is drawn
here.
