Nibe F1355 Series User Manual

PIPE CONNECTIONS
Connection, heating medium flowXL1
Connection, heating medium returnXL2
Connection, brine inXL6
Connection, brine outXL7
HVAC COMPONENTS
Cooling moduleEP14
Cooling moduleEP15
SENSORS ETC.
Outdoor temperature sensor*BT1
* Not illustrated
ELECTRICAL COMPONENTS
Base cardAA2
Input circuit boardAA3
Terminal block, sensorAA3-X6
Terminal block -EP14 -BP8AA3-X20
Terminal block -EP15 -BP8AA3-X21
Terminal block, flow meter -EP14 -BF1AA3-X22
Terminal block, flow meter -EP15 -BF1AA3-X23
Display unitAA4
USB outlet (no function)AA4-XJ3
Service outlet (No function)AA4-XJ4
Communication boardAA23
Base card 2AA26
Relay board for baseAA27
Interface boardAA101
Terminal block, incoming electrical supplyAA101-X1
Terminal block, supply -EP14AA101-X2
Terminal block, operating voltage out -X4AA101-X3
Terminal block, operating voltage in (tariff
option)
AA101-X4
Terminal block, supply, external accessories.AA101-X5
Terminal block, -QN10 and -GP16AA101-X6
Emergency mode relayAA101-X8
Alarm relay, AUX relayAA101-X9
Communication, PWM, power supplyAA101-X10
Miniature circuit-breakerFC1
ChokeRA2, RA3
EMC-filterRF3
Switch on display -AA4SF1
Connector, electrical supply to compressor,
cooling module -EP14
XJ1
Connector, electrical supply to compressor,
cooling module -EP15
AA101-XJ2
Compressor heater -EP14XJ3
Connector, brine pump, cooling moduleXJ4
Connector, heating medium pump, cooling
module
XJ5
Compressor heater-EP15XJ6
Connector, brine pump, cooling module -EP15XJ7
Connector, heating medium pump, cooling
module -EP15
XJ8
Communication motor module -EP15XJ9
Communication motor module -EP14XJ10
Pumps, compressor heater -EP14XJ11
Communication motor moduleXJ13
MISCELLANEOUS
Rating platePF1
Type plate, cooling sectionPF2
Cable gland, incoming electricityUB1
Cable gland, powerUB2
Cable gland, signalUB3
Designations in component locations according to
standard IEC 81346-1 and 81346-2.

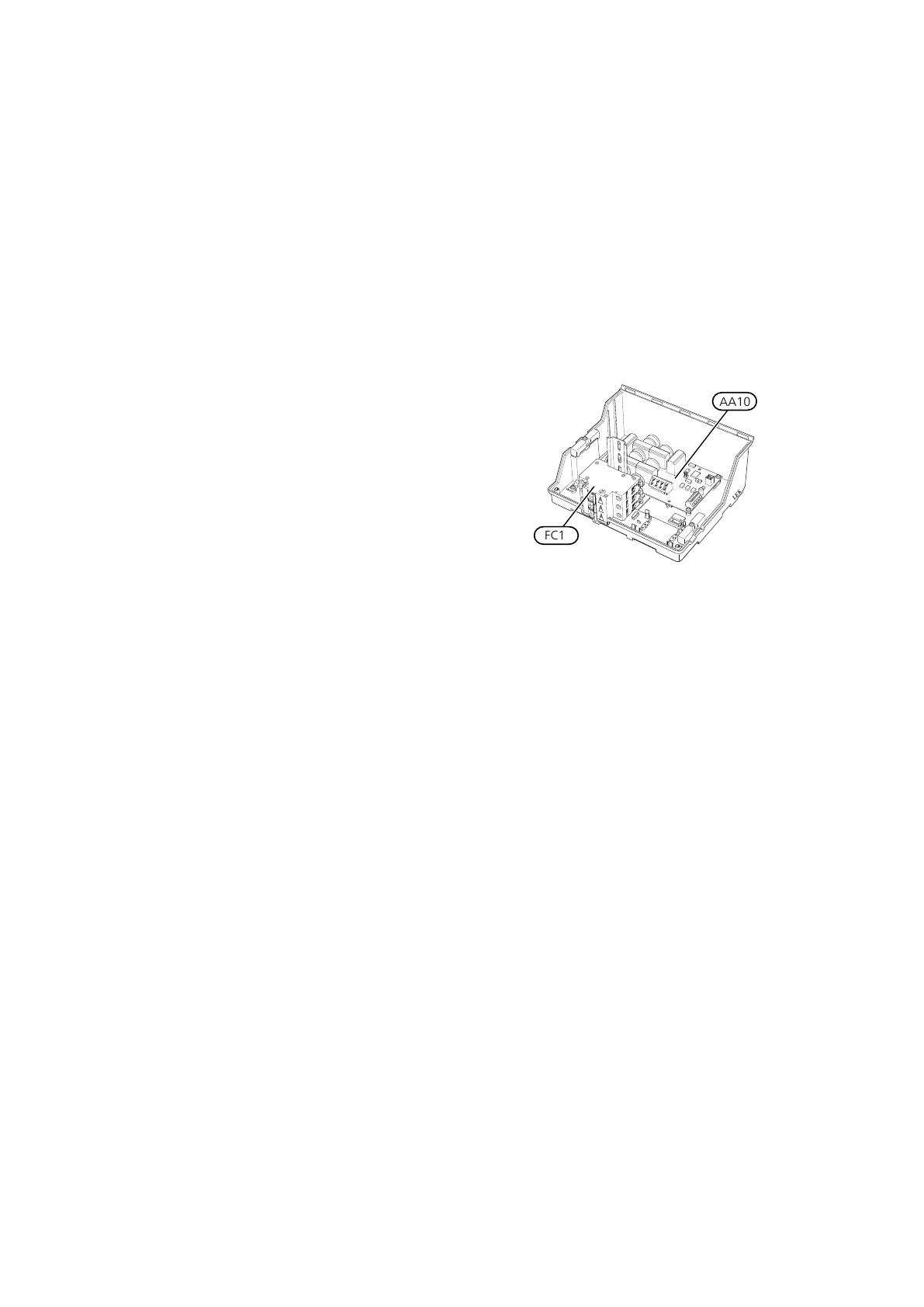

Distribution boxes
LEK
LEK
LEK
FC1
AA10
ELECTRICAL COMPONENTS
Soft-start cardAA10
Miniature circuit-breakerFC1
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
NIBE F1355Chapter 3 | The heat pump design12
