OPERATION IN THE START GUIDE
language4.6
If the start guide is left on this page it closes
automatically in
60 min

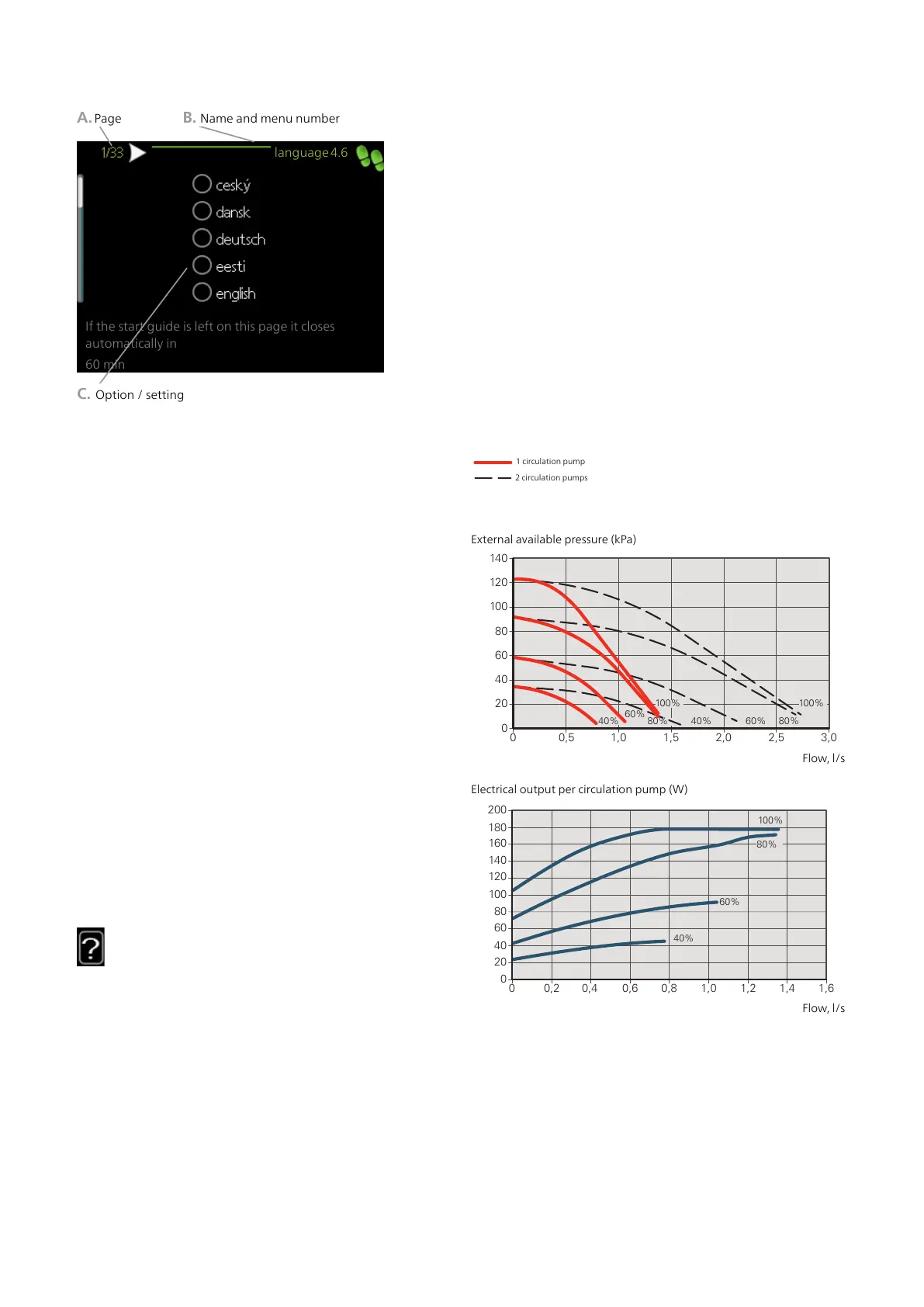

A. Page
C. Option / setting
B. Name and menu number
A. Page
Here you can see how far you have come in the start
guide.
Scroll between the pages of the start guide as follows:
1.
Turn the control knob until one of the arrows in the
top left corner (at the page number) has been
marked.
2.
Press the OK button to skip between the pages in
the start guide.
B. Name and menu number
Read what menu in the control system this page of the
start guide is based on. The digits in brackets refer to
the menu number in the control system.
If you want to read more about affected menus either
read off in the sub-menu or in the operating manual un-
der the chapter "Control - Menus"
If you want to read more about affected menus either
consult the help menu or read the user manual.
C. Option / setting
Make settings for the system here.
D. Help menu
In many menus there is a symbol that indicates
that extra help is available.
To access the help text:
1.
Use the control knob to select the help symbol.
2.
Press the OK button.
The help text often consists of several windows that
you can scroll between using the control knob.
Post adjustment and
venting
PUMP ADJUSTMENT
Brine side
F1355 has brine pumps that operate at a fixed speed.
To ensure the correct flow in the brine system, the brine
pumps must be adjusted.
The pump speed is adjusted with both compressors in
operation and EP14 at nominal speed. Wait until the
system is in balance (ideally 10-15 minutes after com-
pressor start).
Set the speed of the brine pumps in menu 5.1.9. Read
off the speed that the brine pumps should have from
the diagrams below.
1 cirkulationspump
2 cirkulationspumpar
1 circulation pump
2 circulation pumps
F1355 28 kW
60%
80%
0
0 0,5 1,0 1,5 2,0 2,5 3,0
20
40
60
80
100
120
140
Tillgängligt tryck
(kPa)
Flöde
(l/s)
60%
100%
80%
40%
100%
40%
1 cirkulationspump
2 cirkulationspumpar
External available pressure (kPa)
Flow, l/s
0
0 0,2 0,4 0,6 0,8 1,0 1,2
20
40
60
80
100
120
140
Tillförd eleffekt
(W)
Flöde
(l/s)
60%
80%
100%
40%
160
180
200
1,4 1,6
Flow, l/s
Electrical output per circulation pump (W)
Flow, l/s
Heating medium side, automatic operation
To set the correct flow in the heating medium system,
the heating medium pump must run at the correct
speed. F1355 has a heating medium pump that can be
automatically controlled in standard mode. Certain
functions and accessories may require it to run manually
and the correct speed must then be set.
35Chapter 6 | Commissioning and adjustingNIBE F1355
To Next Page
