Nibe F2040 Installer Manual

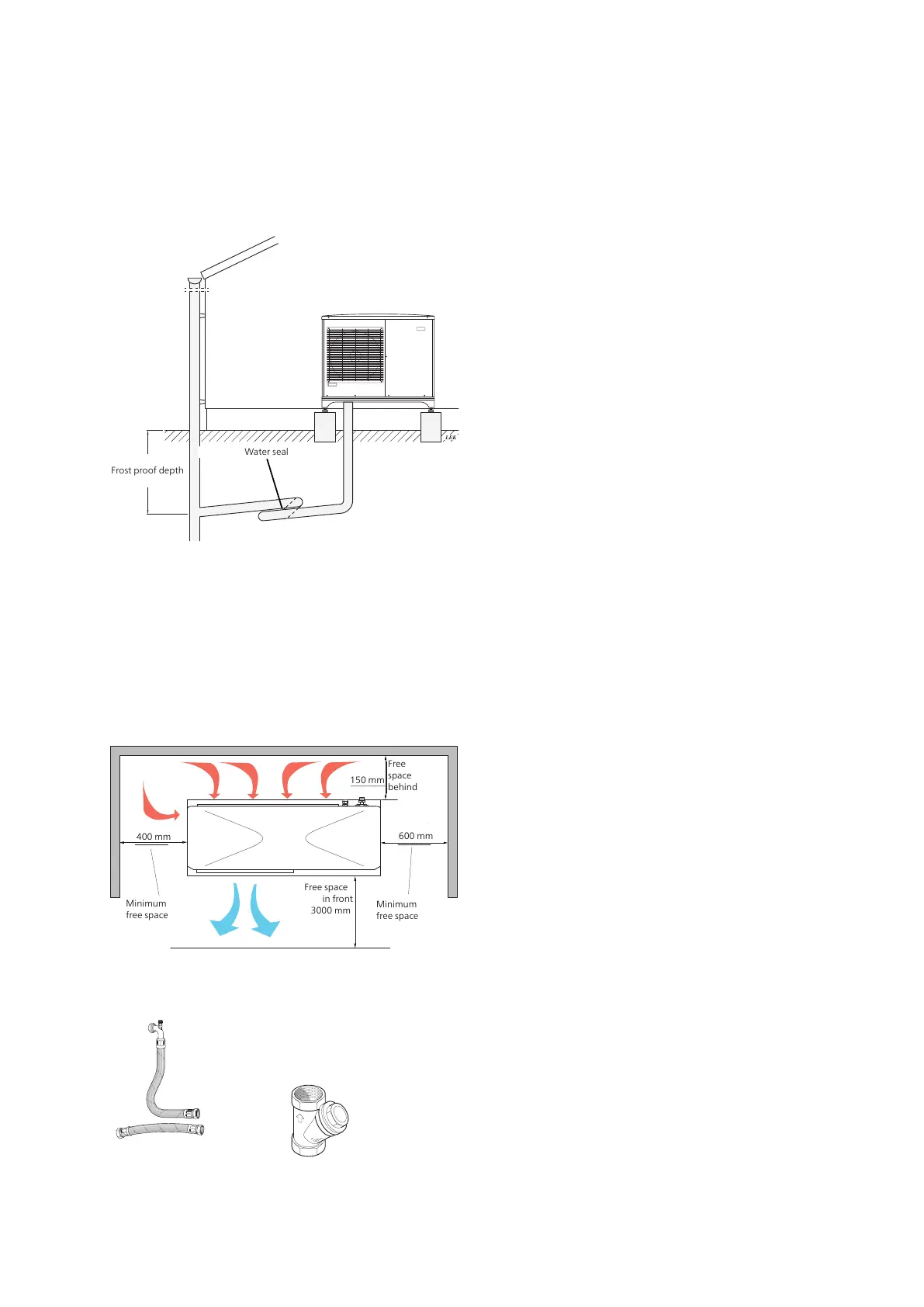

The condensation water pipe must have a water seal
to prevent air circulation in the pipe.
Gutter drainage
Frostfritt
djup
LEK
Frost proof depth
Water seal
The outlet of the condensation water pipe must be at
frost free depth.
Route the pipe downward from F2040.
The condensation water pipe must have a water seal
to prevent air circulation in the pipe.
Installation area
The distance between F2040 and the house wall must
be at least 150 mm. Clearance in front of F2040 should
be at least one metre.
50
255
Ställbar 40-50 955
243
512
110
395
265
50
452
1075
1145
108
Ø40*
14
85
3000 mm
400 mm
Minimalt
fritt utrymme
Minimalt
fritt utrymme
Fritt utrymme
framför
150 mm
Fritt
utrymme
bakom
600mm
Minimum
free space
Minimum
free space
Free
space
behind
400 mm
600 mm
150 mm
3000 mm
Free space
in front
Supplied components
LEK
Particle filter R25 (HQ1).
2 flexible hoses (R25) with
4 seals
NIBE™ F2040Chapter 2 | Delivery and handling8

Nibe F2040 Specifications

General

Type	Air/water heat pump
Refrigerant	R410A
Operating Temperature Range Heating	-20°C to 35°C
Operating Temperature Range Cooling	10°C to 46°C
Sound Power Level	56-62 dB(A) (depending on model)
