Nibe VVM 225 Installer Manual

MINIATURE CIRCUIT-BREAKER
The indoor module and a large proportion of its internal
components are internally fused by a miniature circuit
breaker (FC1).
TEMPERATURE LIMITER
The temperature limiter (FQ10) cuts the power supply
to the electric additional heat, if the temperature rises
to between 90 and 100 °C and it is reset manually.
Resetting

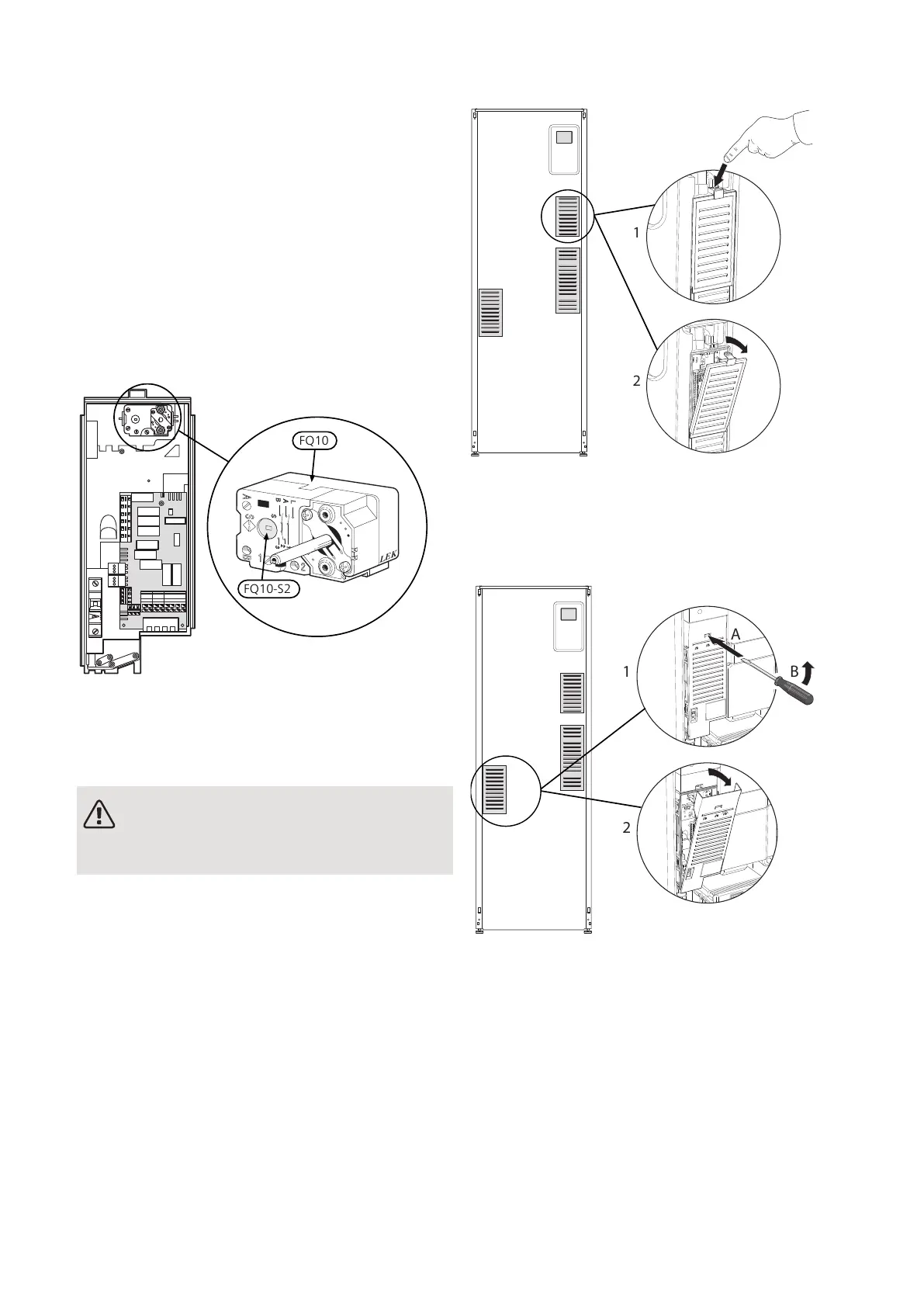

The temperature limiter (FQ10) is accessible behind the
front cover. Reset the temperature limiter by pressing
the button (FQ10-S2) using a small screwdriver. Press
the button lightly, max. 15 N (approx. 1.5 kg).
LEK
LEK
LEK
LEK
LEK
FQ10
FQ10-S2
ACCESSIBILITY, ELECTRICAL CONNECTION
The plastic cap of the electrical boxes is opened using
a screwdriver.
NOTE
The cover for the input card is opened without
a tool.
Removing the cover, input circuit board
1
2
1.
Push the catch down.
2.
Angle out the cover and remove it.
Removing the cover, immersion heater circuit
board
1
2
A
B
1.
Insert the screwdriver (A) and pry the catch carefully
downwards (B).
2.
Angle out the cover and remove it.
NIBE VVM 225Chapter 5 | Electrical connections22
