Nice HySecurity CBOX1050 - Main DC Power - Input Connections; Main DC Power Input Wiring

CBOX1050
INSTALLATION AND PROGRAMMING MANUAL
20
NOTE: This input should only used with a 10-35 VDC, (20A or larger)
power supply. However, a battery is recommended as a backup.
1. To wire Main DC Power panel connector, remove it from board for
wiring (IMAGE 9-1).
2. Strip wires from power supply back 3/8”-7/16” (10-11mm), twist, and
install into the connector screw terminals (positive to +, negative to
-), then plug back into board. (IMAGE 9-1).
9
MAIN DC POWER - INPUT CONNECTIONS
MAIN DC POWER INPUT CONNECTOR
IMPORTANT NOTES:
• LED below the terminal will glow red if mis-wired, and glow green if wired correctly.

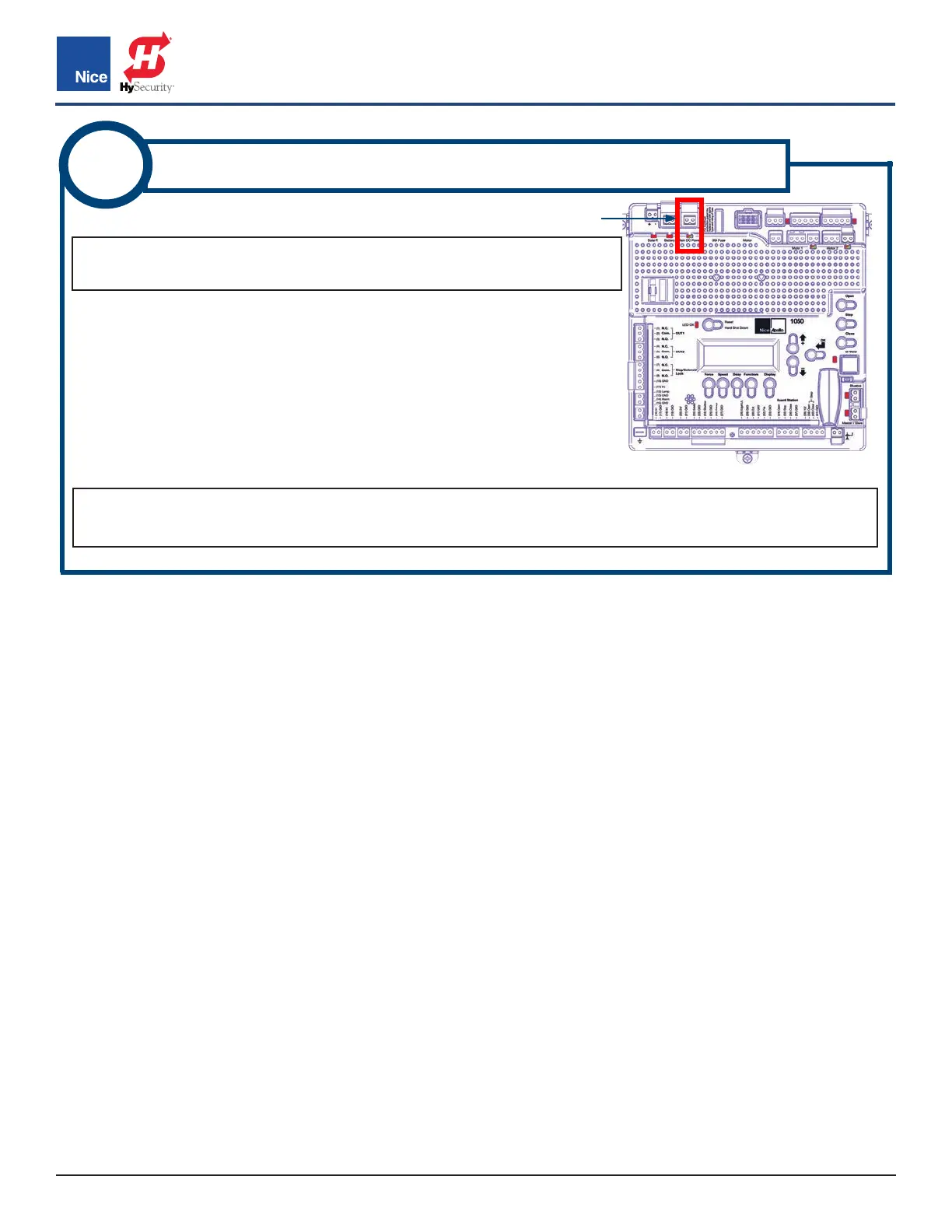

IMAGE 9-1: MAIN DC POWER INPUT CONNECTOR
