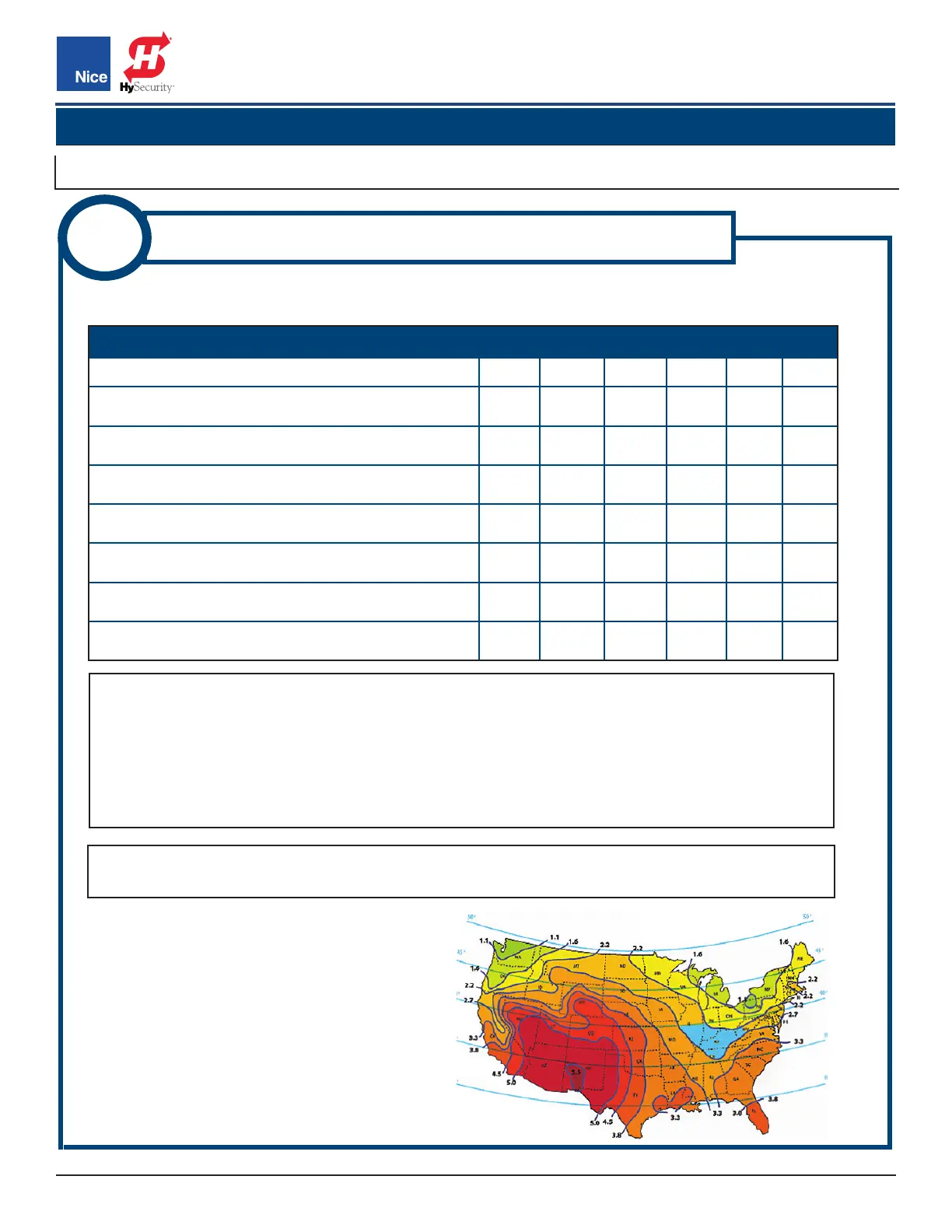

TABLE 25-1: SOLAR PANEL WATT/CYCLE CHART
DAILY CYCLES 1-10 1-20 1-40 1-60 1-80 80+
5 Watt Solar Panel
x
10 Watt Solar Panel
x
20 Watt Solar Panel
x
30 Watt Solar Panel
x
40 Watt Solar Panel (requires regulator)
x
1.5 Amp Battery Charger
x
10 Amp Battery Charger
x
25
CALCULATING SOLAR REQUIREMENTS
1. Estimate the gate traffic measured in open/close cycles per TABLE 25-1.
2. Estimate the amount of sunlight
available per the Solar Map (right).
3. Use the solar wattage calculator found
on the HySecurity website at https://
www.hysecurity.com/operators-
accessories/solar/ to determine
battery and solar panel size needed
to serve the installation in question.
NOTES:
TABLE 25-1 should be used as only a guide. Alternative gate operator configurations may reduce
or increase the daily power usage.
For dual gate operators, double the amount of required solar wattage.
If a standard electrical outlet is not available for trickle charging, a licensed electrician will be
required for proper electrical hookup.
IMPORTANT! Maximum regulator output is 1.5A. If installation requires larger than a 20W solar
panel – an off-board regulator should be used and connected directly to the battery.
