English – 6
English
Prog
COPY
Indicate that an event is being copied (Procedure 9).
Prog
Indicate that the internal date and time are being set (Procedure
10).
Prog
Indicate that the “on vacation” special function is being pro-
grammed (Procedure 4).
Prog
Indicate that the “planetary hour” special function is being pro-
grammed (Procedure 5).
Indicates that the battery is discharged and must be replaced as
soon as possible.
Indicates that a radio command is being transmitted.

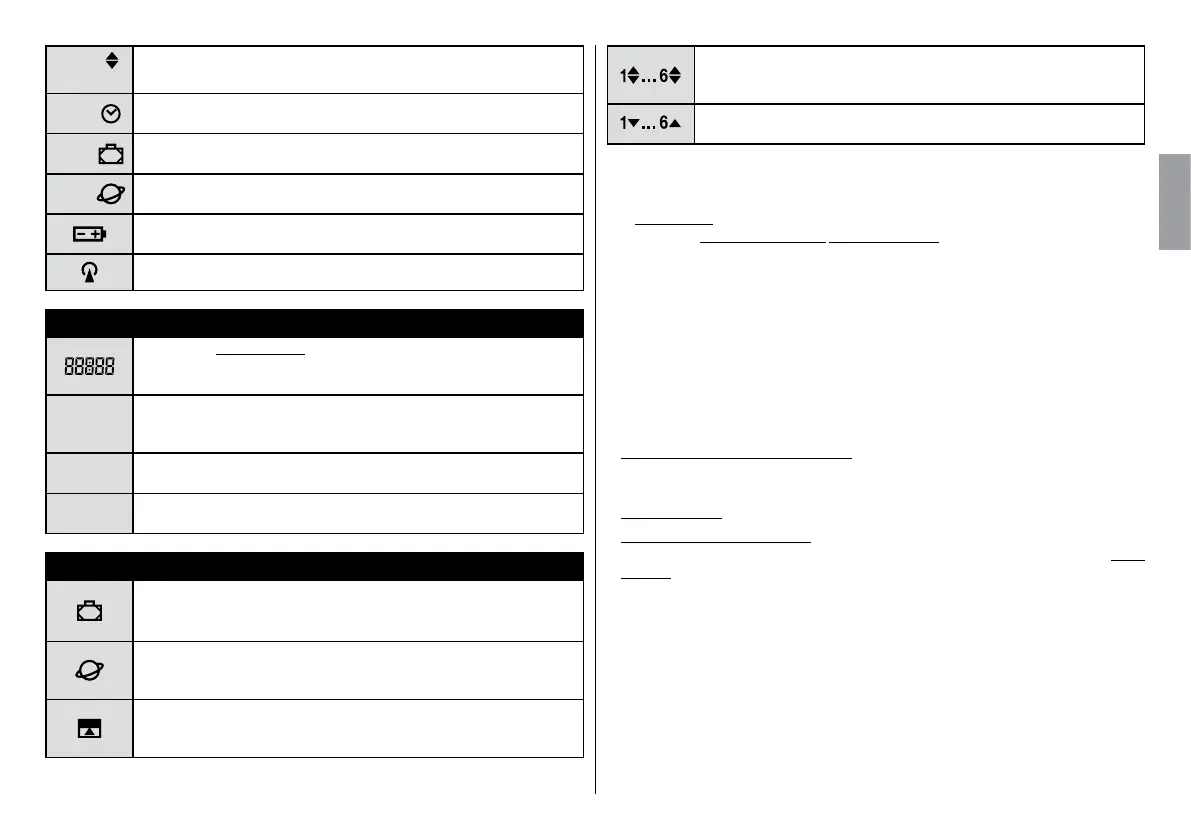

TABLE B - List of symbols in Area 2
• When the basic settings are being made (Procedure 1, 10), this
area displays the values selected for each parameter.
• In automatic or manual mode, it shows the time.
Su Mo Tu We
Th Fr Sa
Indicates the day of the week (Su = Sunday; Mo = Monday; Tu =
Tuesday; We = Wednesday; Th = Thursday; Fr = Friday; Sa = Sat-
urday).
S
Indicates that the clock has changed to summer time. (this is set
automatically by the system).
W
Indicates that the clock is displaying solar time (in the winter). (this
is set automatically by the system).
TABLE C - List of symbols in Area 3
When an event is being programmed, indicates that the “on va-
cation” special function has been applied to the event being pro-
grammed (Procedure 6).
When an event is being programmed, indicates that the “planetary
time” special function has been applied to the event being pro-
grammed (Procedure 6).
When an event is being programmed, indicates that the “partial
manoeuvre” special function has been applied to the event being
programmed (Procedure 6).
When a First Transmitter is being memorized (Procedure 2) or a man-
ual command is being sent (Procedure 9 - E), the symbol next to the
number indicates that the group in question has been selected.
When an event is being programmed (Procedure 6), indicates the
direction (Up or Down) assigned to the manoeuvre.
4 - MAIN SCREEN
The main screen is the starting point for all use of the transmitter. It can be called up
at any time by repeatedly pressing n/esc until Auto starts flashing. The main screen
is always the screen in which Auto is flashing.
5 - OVERVIEW OF PROGRAMMING
Programming is one of the three main operating modes of the transmitter. To enter
programming mode,
01. call up the main screen by repeatedly pressing n/esc until Auto starts flashing;
02. press sel twice to select Prog; confirm by pressing ok.
You can program the unit:
• set the special function parameters: “on vacation”, (Procedure 4), or “planetary
time” (Procedure 5) (N.B.: If you have run Procedure 1 after powering up the
transmitter, the planetary time need not be set with Procedure 5);
• program events with Procedure 6, and Procedures 7, 8 and 9;
• set the internal clock and date with Procedure 10 (N.B.: If you have run Procedure
1 after powering up the transmitter, only use Procedure 10 to change the basic
settings).
6 - SETTING THE SPECIAL FUNCTION
PARAMETERS
Caution! – When programming events, if you want to enable the “on vacation” and
“planetary time” special functions, the parameters for these functions must already
have been set. To make these settings proceed as follows.
