Nice Titan 912L - Manual Release;Manual Operation

7
Manual Release In
Engaged Position
RUBBER
KEY
COVER
5.4 - Manual release/manual operation
1. Close handle
2. Rotate key 90° counterclock wise
and remove key.
3. Replace rubber key cover.
4. Operator is now in re-engaged in
Automatic Mode (manual
operation is not possible).
Manual Release Re-engage

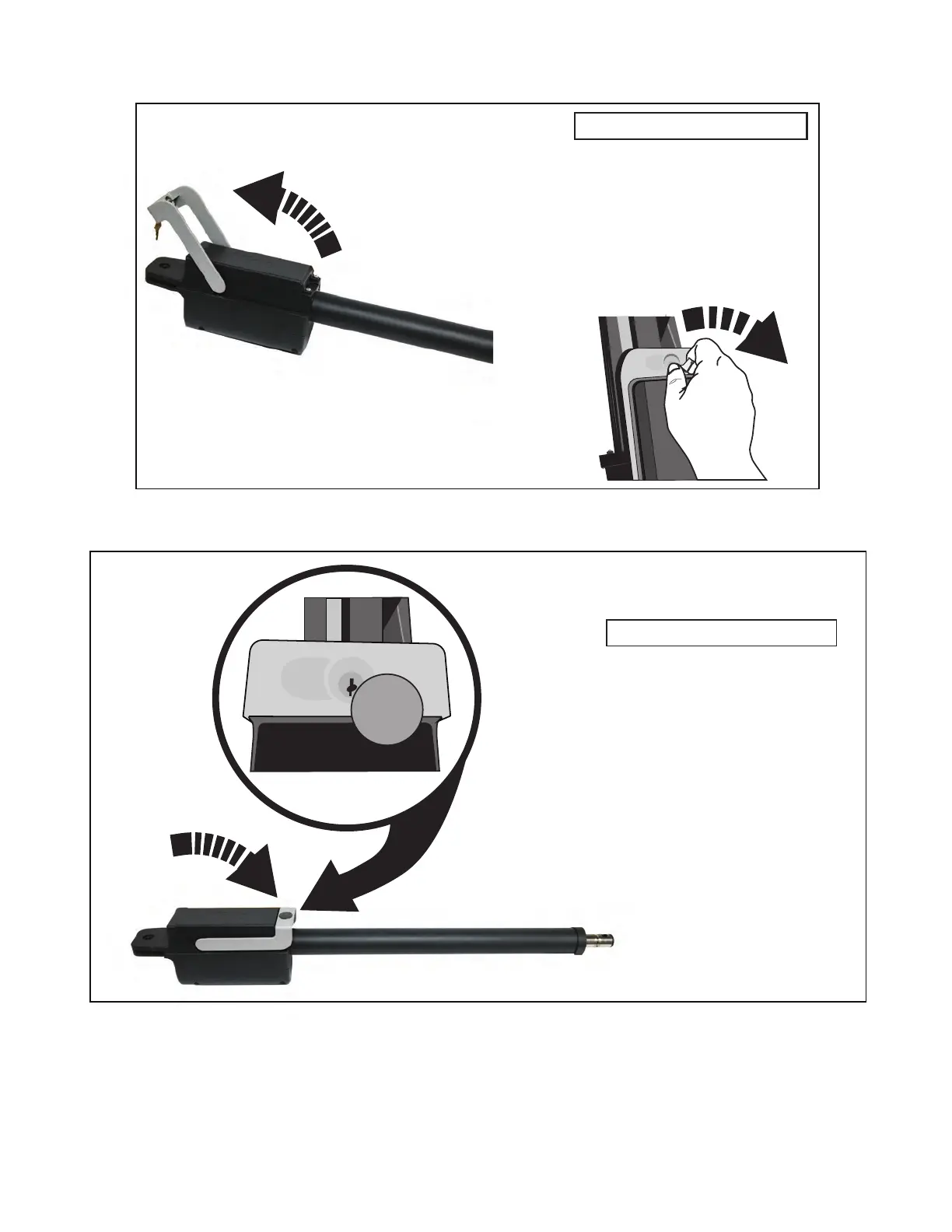

FIGURE 5-7 MANUAL RELEASE RE-ENGAGE
1. Lift rubber key cover and insert
key into lock and rotate 90°
clockwise.
2. Lift handle
3. Actuator is now Disengaged
(manual operation is possible).
Manual Release Disengage
Manual Release in
Disengaged Position
90°
FIGURE 5-6 MANUAL RELEASE DISENGAGE
