5.6 - Control board wiring
1050 Control Board
936 Control Board

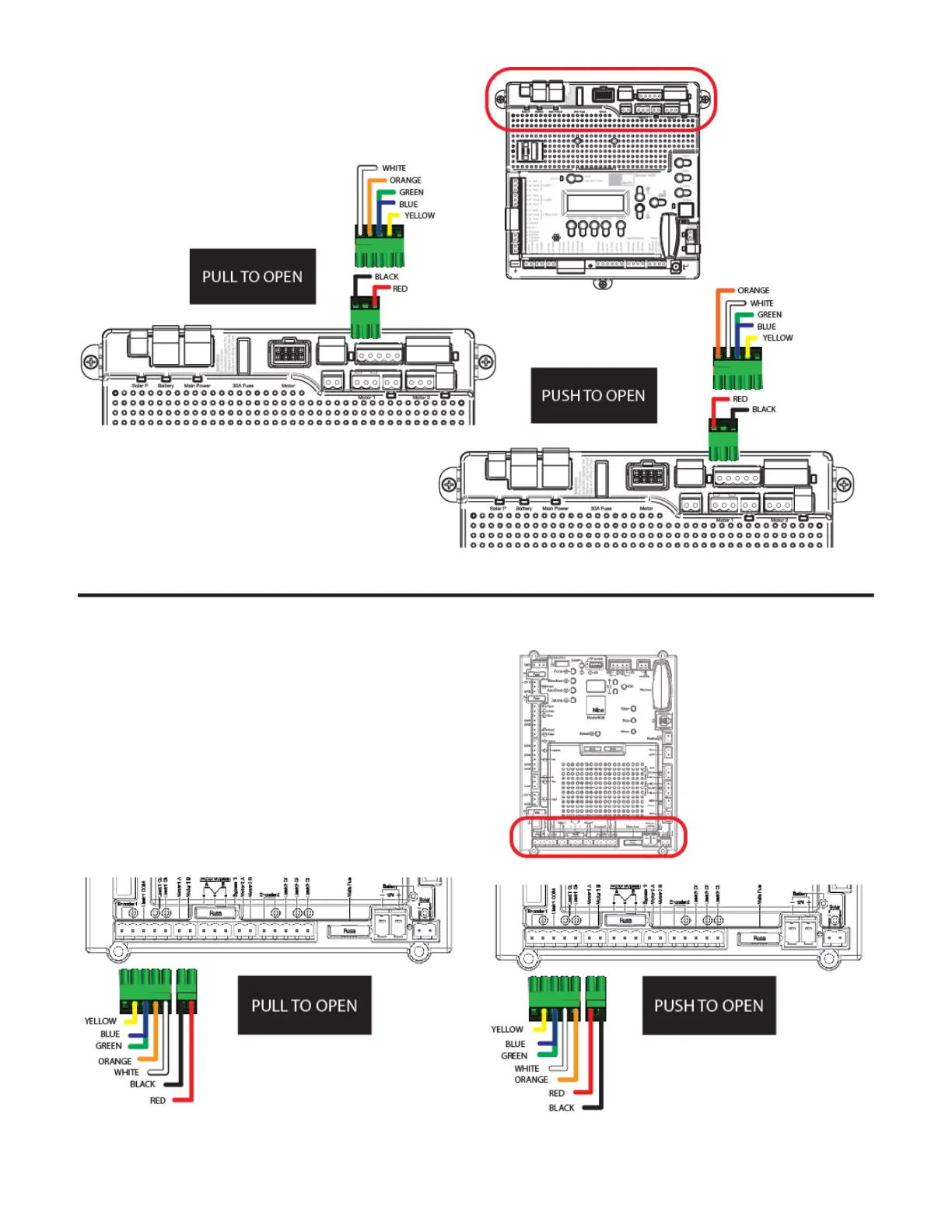

FIGURE 5 - 11 WIRING DIAGRAM FOR
1050 CONTROL BOARD
FIGURE 5 - 12 WIRING DIAGRAM FOR
936 CONTOL BOARD
