Nice TTN3724HS

English – 9
4

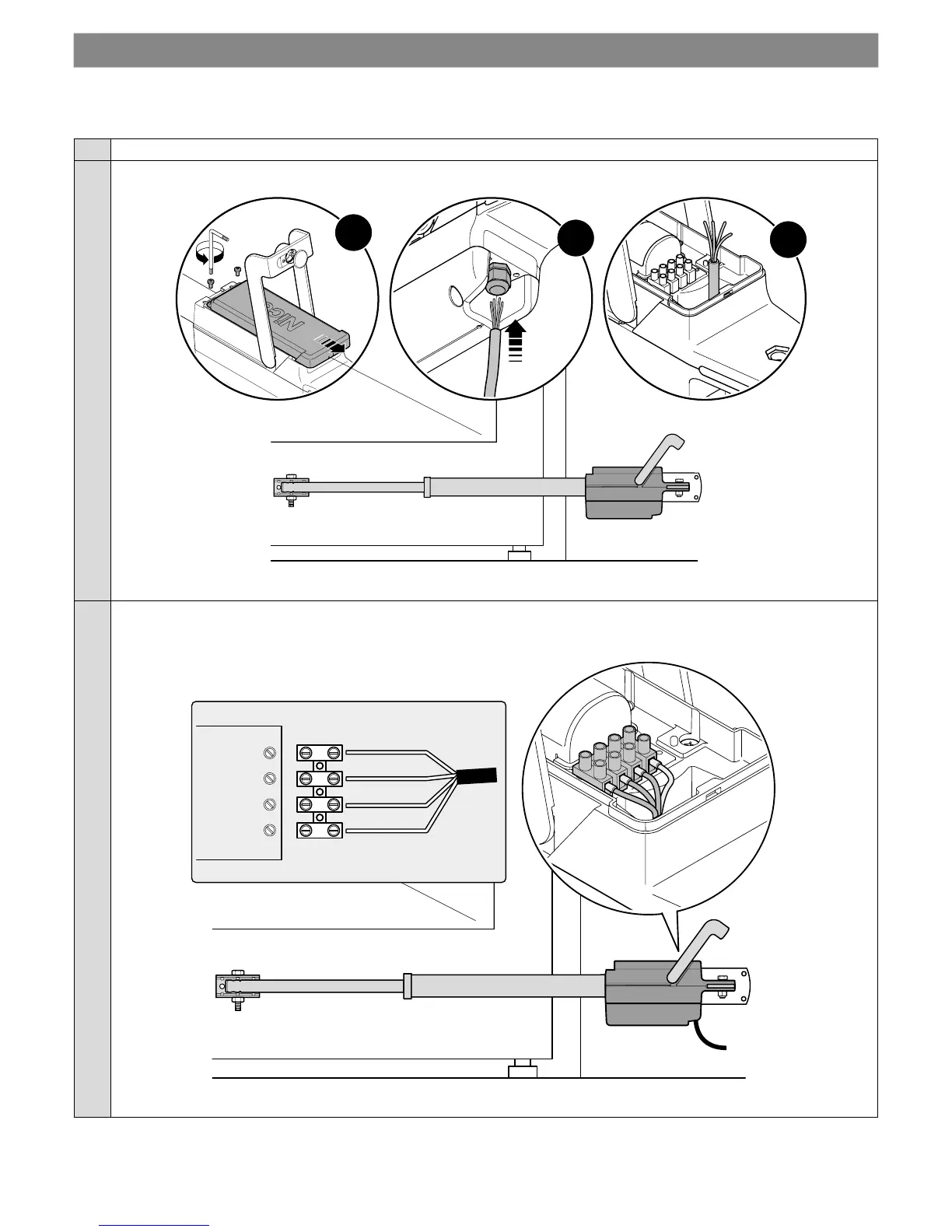

ELECTRICAL CONNECTIONS
CAUTION!
– Incorrect connections can cause faults or hazards; therefore ensure that the specied connections are strictly observed.
– Hook up the unit with the electrical power shut off.
01. Remove the gearmotor’s cover (a)
02. Loosen the cable clamp (b) and run the cable through it (c)
1
3
2
03. Hook up the cables and connect the earth cable to its eyebolt
ENCODER
ENCODER
MOTOR
MOTOR
