English – 3
1
PRODUCT DESCRIPTION AND INTENDED USE
This product is intended to be used to automate swing gates. CAUTION! – Any use other than the intended use, and any use in conditions
other than those described in this manual, is improper and forbidden!
The product is an electromechanical gearmotor, available in two versions: TTN3724HS - TTN3724RHS - TTN6024HS - TTN6024RHS
It is equipped with a 24V motor and a worm screw reduction unit.
The gearmotor is powered off the external control unit to which it is connected. WARNING! – With the gearmotors mod. TTN6024HS and
TTN3724HS, only the control unit model MC824H can be used!
In case of power outage, the gate can be operated manually by disengaging the gearmotor (for gearmotor models TTN3724HS and TTN3724RHS
the gate leaf can be moved manually without disengaging the gearmotor).
2

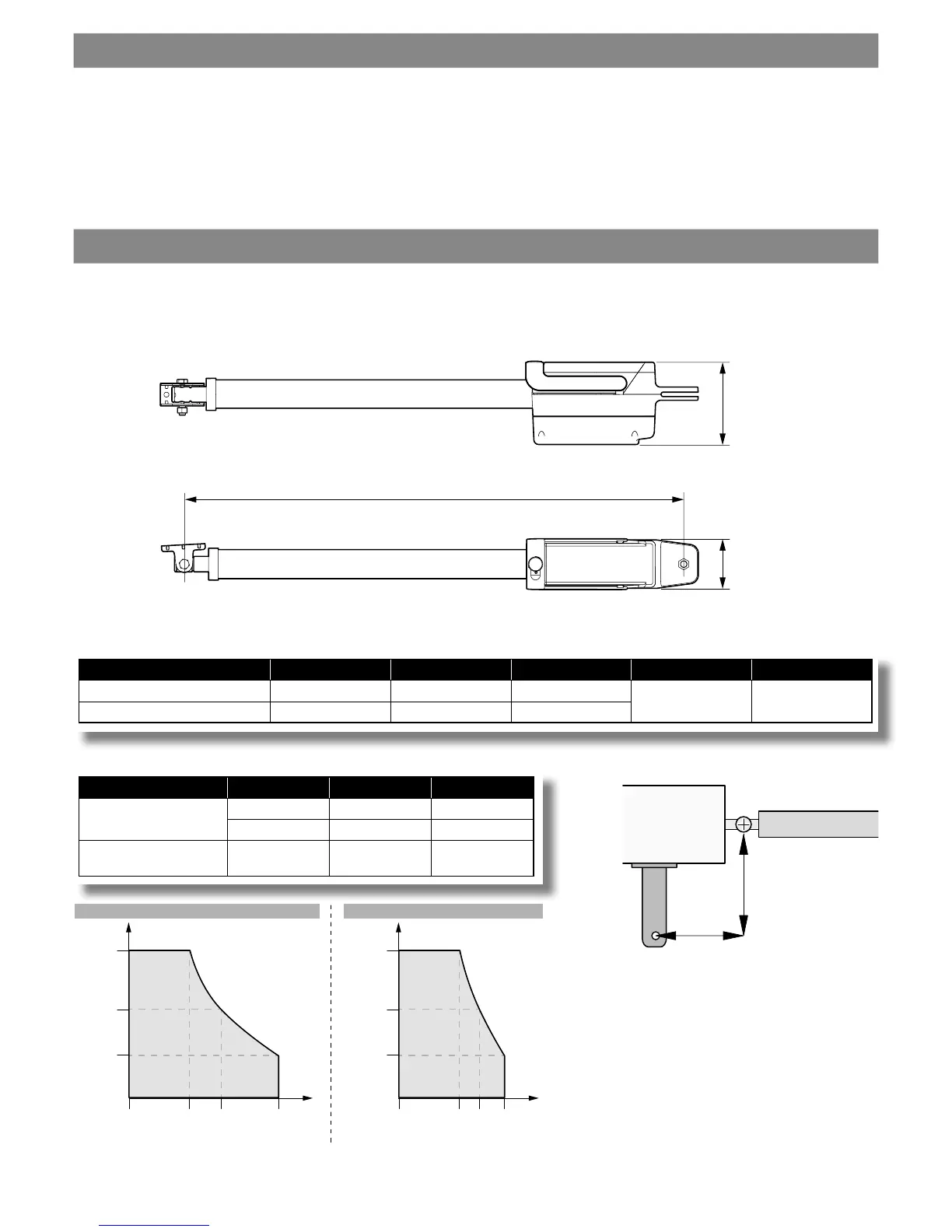

APPLICATION LIMITS
Caution! - The motor must be installed by qualied personnel in compliance with current legislation, standards and regulations, and
the directions provided in this manual.
Before proceeding with the installation:
- Check that the area to which the gearmotor is to be mounted is large enough.
H
W
L
- Check the gate’s opening movement and the force exerted by the motor: these depend on the position of the rear bracket.
Model L max (mm) L min (mm) Travel (mm) W (mm) H (mm)
TTN6024RHS - TTN6024HS 1710 1030 680
105 170
TTN3724RHS - TTN3724HS 1370 860 510
- Dene the maximum opening angle of the gate leaf and the appropriate motor strength for the relevant system.
Model Angle A (cm) B (cm)
TTN6024RHS
TTN6024HS
100° 20 28
115° 28 28
TTN3724RHS
TTN3724HS
110° 18 18
B
A
