Nice TTN3724HS User Manual

4 – English
3
INSTALLATION
Important! Before installing the product, refer to chapters 2 and 9 (technical specications).

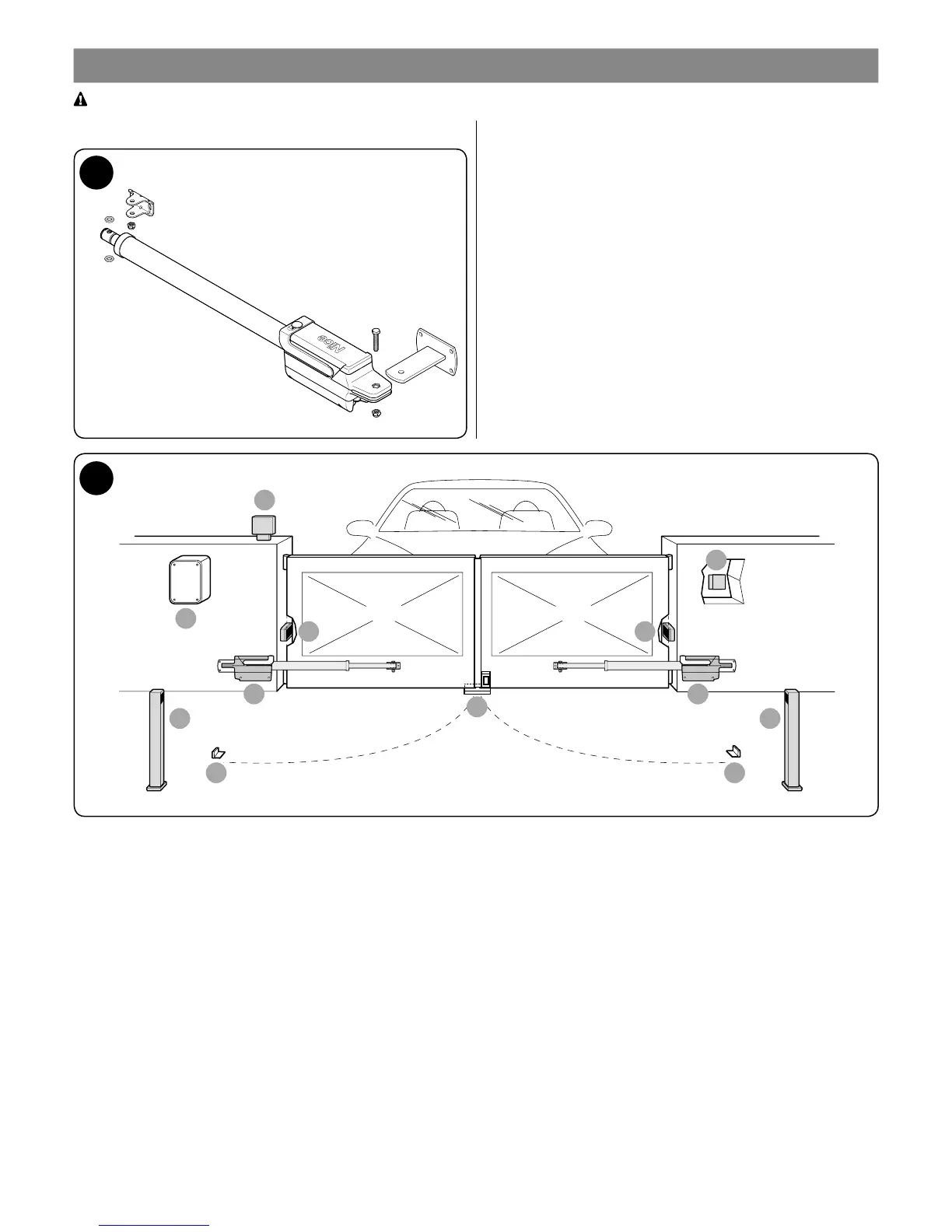

Fig. 1 shows the contents of the package: check the material. Fig. 2 shows the location of the various components of a typical sys-
tem mounting Nice accessories:
A - electromechanical gearmotors
B - vertical electric lock
C - photocell pair
D - mechanical limit switch pair (opening)
E - photocell pillars
F - flasher
G - keyswitch/digital keypad
H - control unit
model TTN3724RHS - TTN6024RHS: MC824HR
model TTN3724HS - TTN6024HS: MC824H
1
F
G
A A
H
D
B
D
C C
E E
2
