10 Commander C200/C300 Step By Step Guide
Issue Number: 2

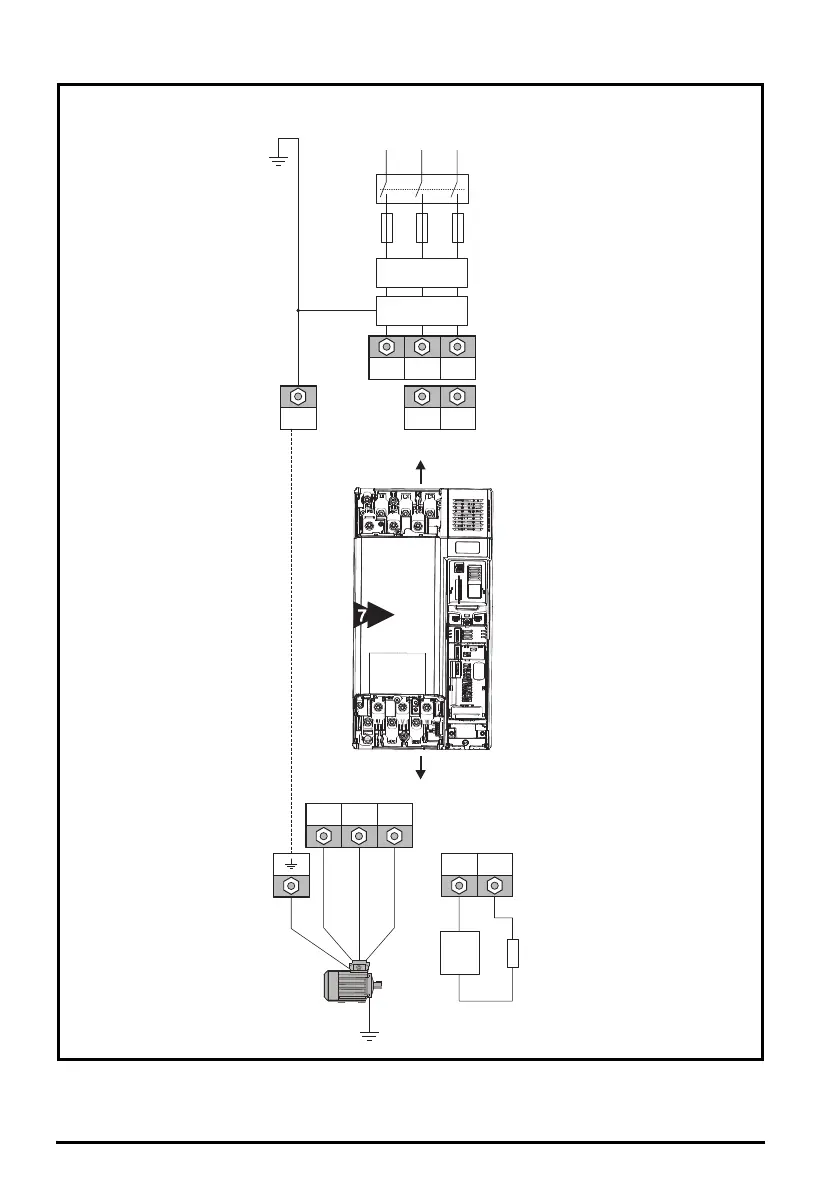

Figure 6-3 Size 7 and 8 power and ground connections (size 7 shown)
On size 7 and 8, the supply and motor ground connections are made using the M8 studs located by
the supply and motor connection terminals. Refer to Figure 6-3.
UVW
Motor
Optional ground
connection
+DC BR
Optional
braking
resistor
Thermal
overload
protection
device
Output connections
Input connections
Mains
Supply
L1 L2
Optional
line reactor
Optional
EMC filter
Fuses
L3
L1 L2 L3
+DC -DCPE
Supply
ground
8
