Nidec Control Techniques Unidrive M Modular User Manual

Safety information Introduction Product information System configuration
Mechanical
Installation
Electrical Installation
34 Unidrive M Modular Installation Guide
Issue Number: 2

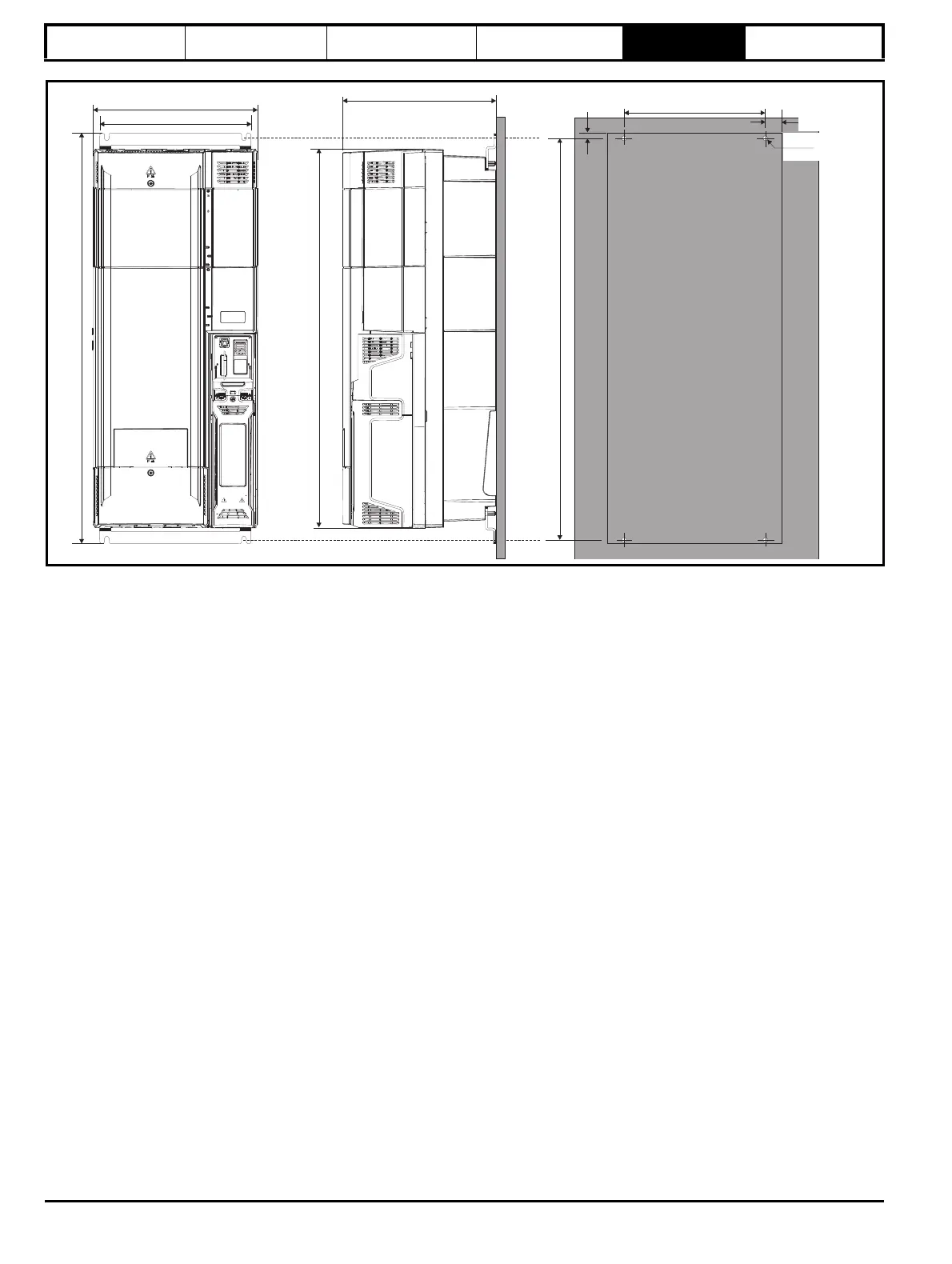

Figure 5-13 Surface mounting the Unidrive M size 9D/10D
310 mm (12.21 in)
285 mm (11.22 in)
773 mm (30.43 in)
714 mm (28.1
1 in)
290 mm (11.42 in)
259 mm (10.20 in)
755 mm (29.72 in)
Æ9.0 mm (0.35 in)
x 4 holes
9mm
(0.35 in)
26 mm
(1.02 in)
