Nidec Control Techniques Unidrive M Modular User Manual

Safety information Introduction Product information System configuration
Mechanical
Installation
Electrical Installation
Unidrive M Modular Installation Guide 35
Issue Number: 2

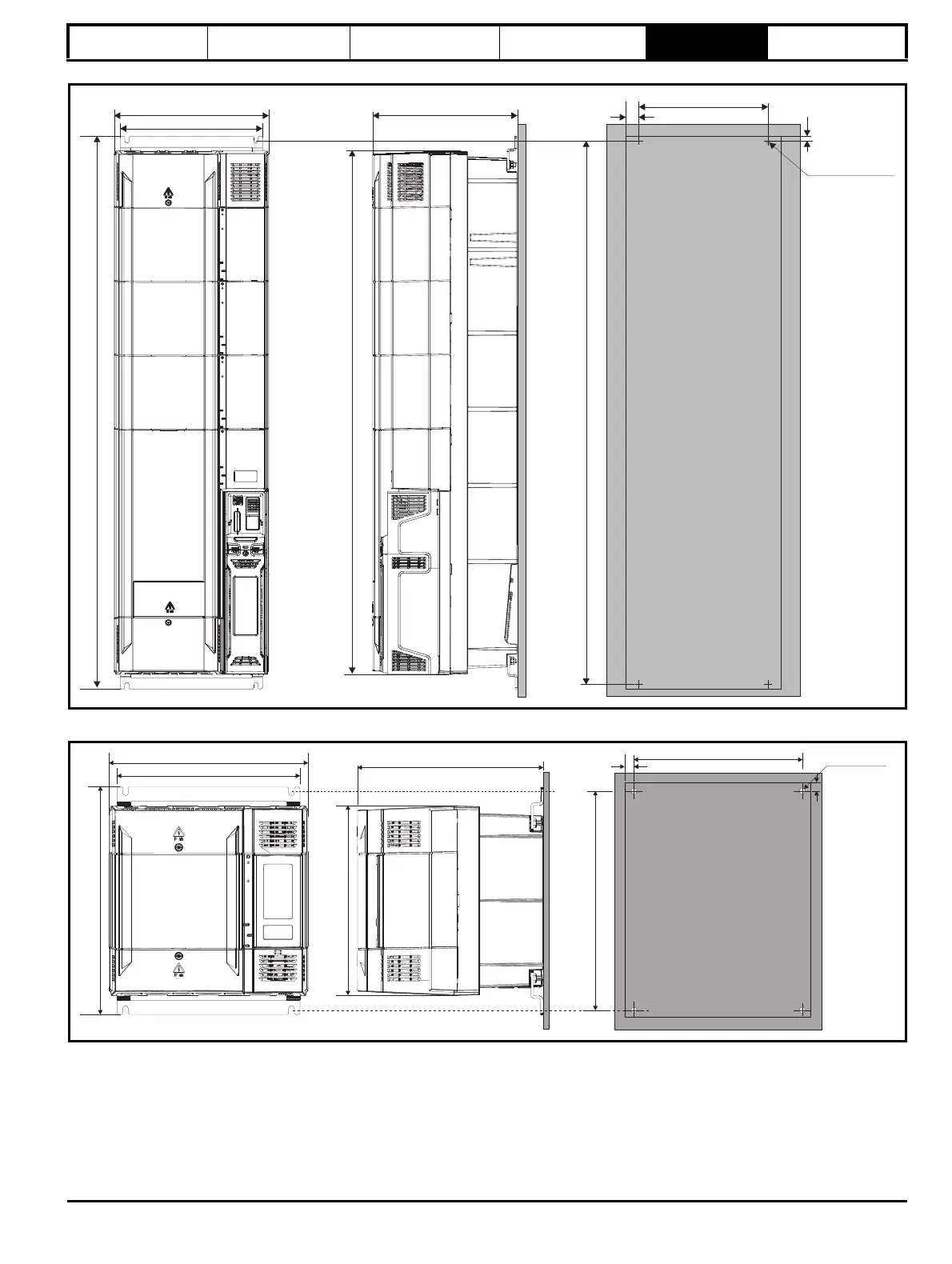

Figure 5-14 Surface mounting the Unidrive M size 9A
Figure 5-15 Surface mounting the Unidrive M Rectifier
285 mm (11.22 in)
310 mm (12.20 in)
1108 mm (43.61 in)
290 mm (11.42 in)
1049 mm (41.31 in)
259 mm (10.18 in)
26 mm
(1.01 in)
9mm
(0.35 in)
Æ 9.0 mm (0.35 in)
x 4 holes
1090 mm (42.90 in)
310 mm (12.21 in)
285 mm (11.22 in)
355 mm (13.98 in)
290 mm (11.42 in)
296 mm (11.65 in)
337 mm (13.27 in)
259 mm (10.20 in)
Æ9.0 mm (0.35 in)
x 4 holes
26 mm
(1.02 in)
9mm
(0.35 in)
