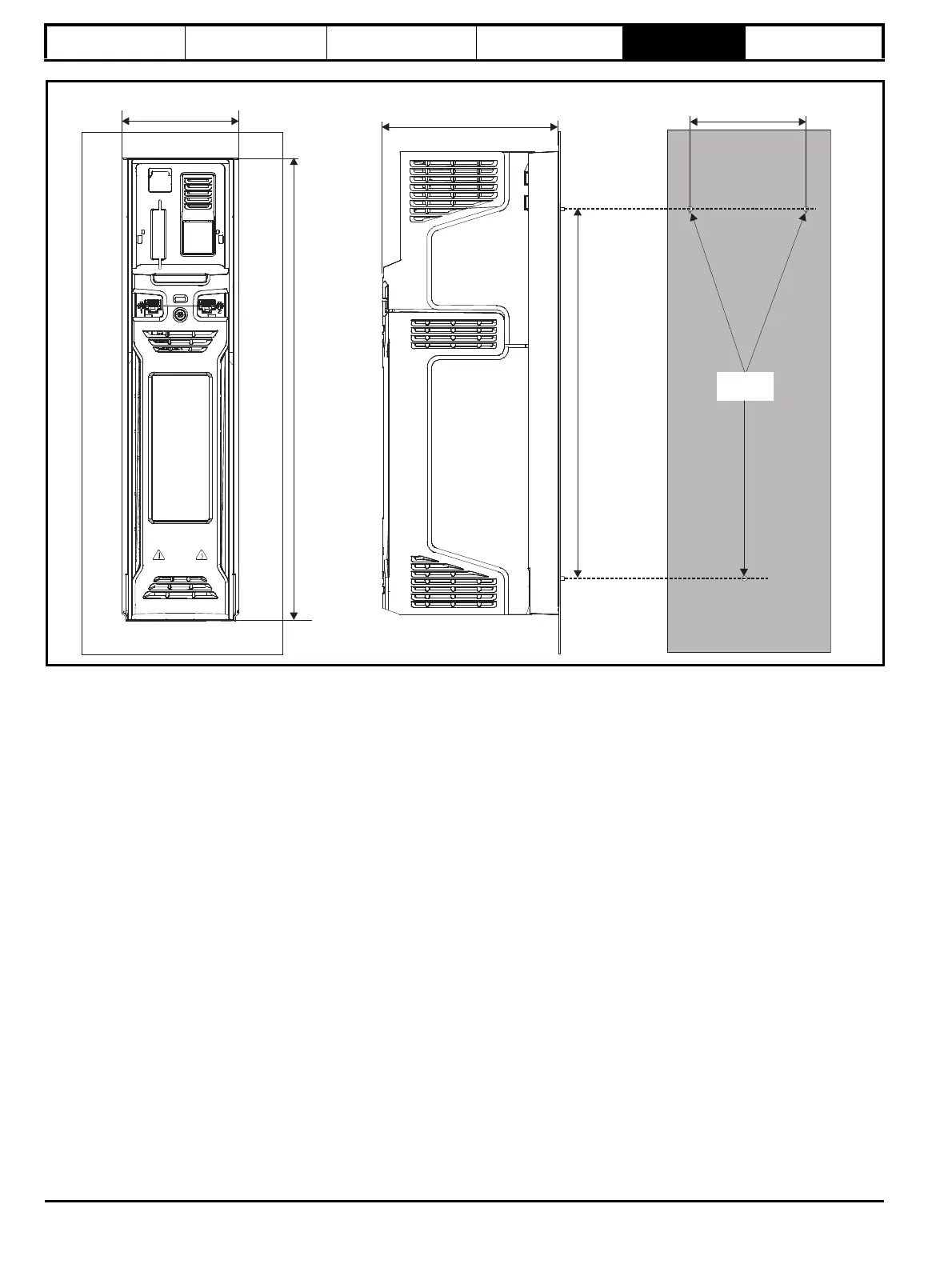

Figure 5-16 Control master pod dimensions
367.5 mm
(14.5 in)
346.0 mm
(13.7 in)
92.5 mm
(3.65 in)
Mounting
holes
60.4 mm
(2.40 in)
139 mm (5.47 in)
