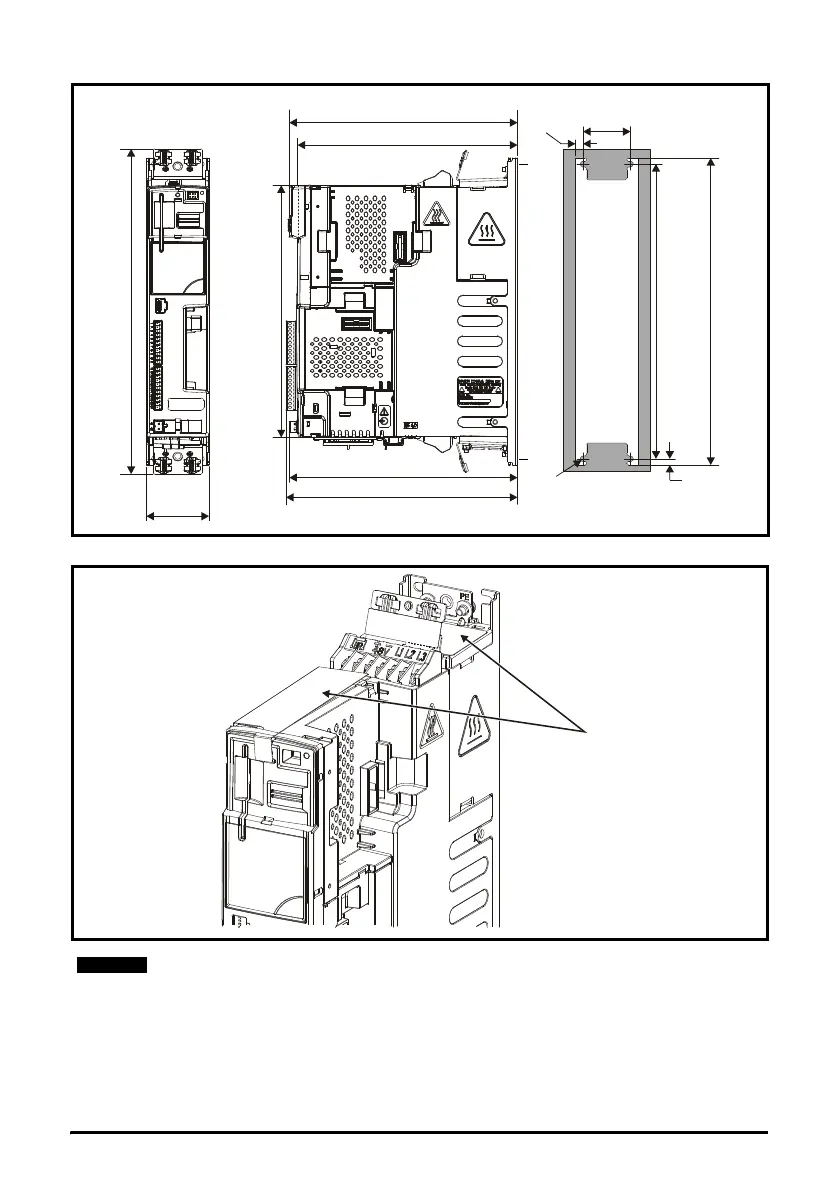

Figure 3-3 Dimensions
Figure 3-4 Ingress protective label
62mm
(2.44in)
249.7mm
(9.83in)
220mm (8.66in)
47mm
(1.85in)
7.5mm
(0.3in)
304mm
(11.96in)
292mm
(11.49in)
6mm
(0.24in)
∅ 5.4mm (0.21in)
M5
322mm
(12.68in)
226mm (8.9in)
226mm (8.9in)
229mm (9.02in)
Ingress protective labels
The ingress protective labels (shown on Figure 3-4 above) should remain in place while
the drive is mounted, and until all the electrical wires have been connected. The labels
should be removed before first power up.
