3. -BCD Option Setting
When equipped with -BCD option, following setting options are enabled from function setting feature.
No. Setting item Description Input range Default
F10 BCD output logic
Set as 0 for negative logic, set as 1 for positive logic
(decimal point output)
● _ 0_ ● (Negative logic)/
● _ 1_ ● (Positive logic)
Negative logic
● F10 sets positive/negative logic for BCD output, Decimal point output, PLUS, OVR.
● Logic for DT OUT, HOLD, ENABLE signals cannot be set.

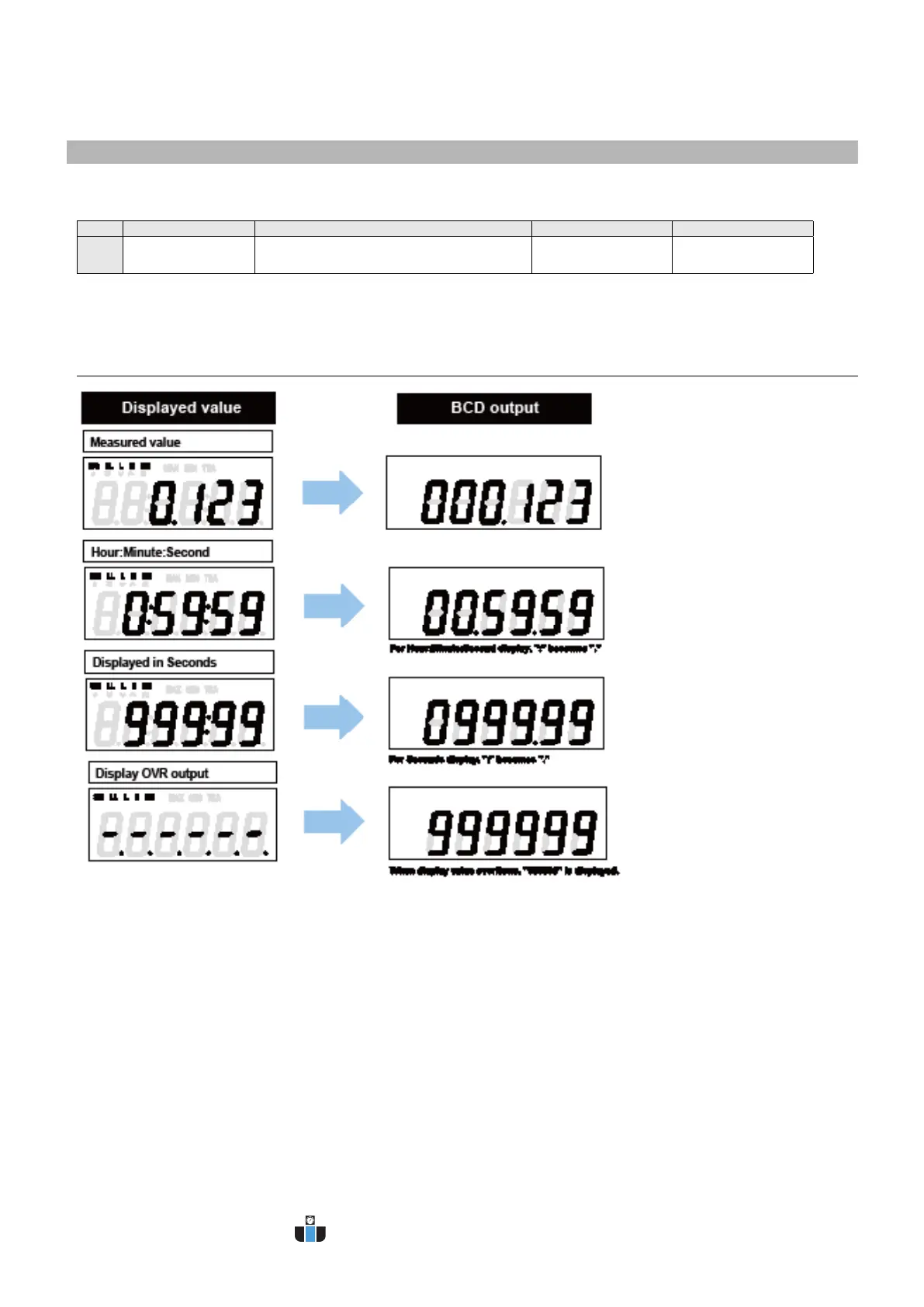

● BCD output display specications
