Nidec Unidrive M400 series User Manual

Unidrive M400 Quick Start Guide 65
Issue Number: 8
9 NV Media Card Operation

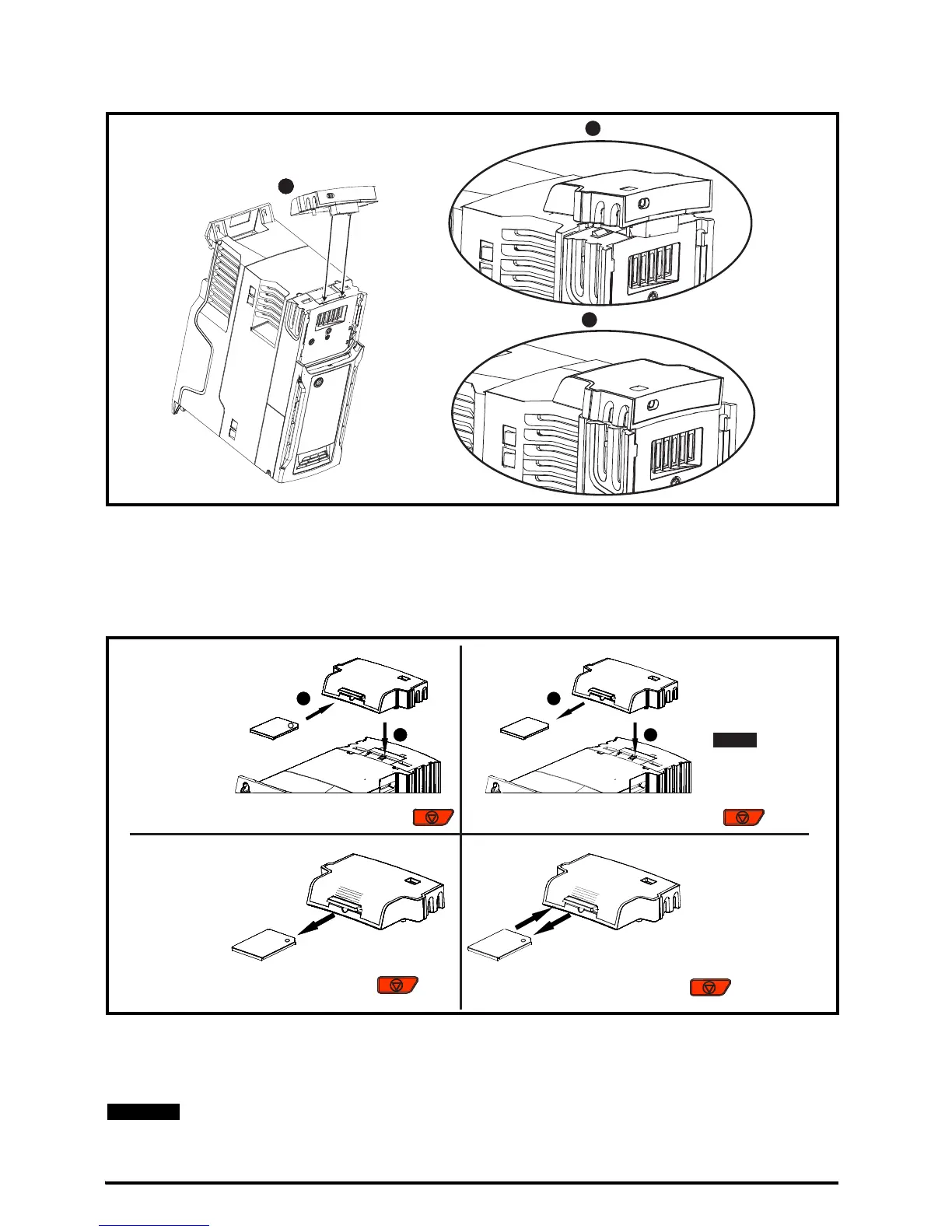

Figure 9-1 Installing the AI-Backup adaptor (SD Card)
1. Identify the two plastic fingers on the underside of the AI-Backup adaptor (1) - then insert the two
fingers into the corresponding slots in the spring-loaded sliding cover on the top of the drive.
2. Hold the adaptor firmly and push the spring loaded protective cover towards the back of the drive to
expose the connector block (2) below.
Press the adaptor downwards (3) until the adaptor connector locates into the drive connection below.
Figure 9-2 Basic NV Media Card operation
The whole card may be protected from writing or erasing by setting the read-only flag, refer to the Control
User Guide for further information. The card should not be removed during data transfer, as the drive will
produce a trip. If this occurs then either the transfer should be reattempted or in the case of a card to drive
transfer, default parameters should be loaded.
The drive supports SD cards formatted with the FAT32 file system only.
1
2
111
3
Pr = +00.030 Read
Drive reads all
parameters from
the NV Media Card
Pr = Prog +00.030 ram
Programs all drive
parameters to the
NV Media Card
NOTE
Overwrites any
data already in
data block 1
Pr = Auto +00.030
Drive automatically
writes to the
Media Card
when a parameter
save is performed
Pr = oot +00.030 B
Drive boots from the
NV Media Card on
power up and
automatically writes
to the Media Card
when a parameter
save is performed
1
2
1
2
1
2
NOTE
