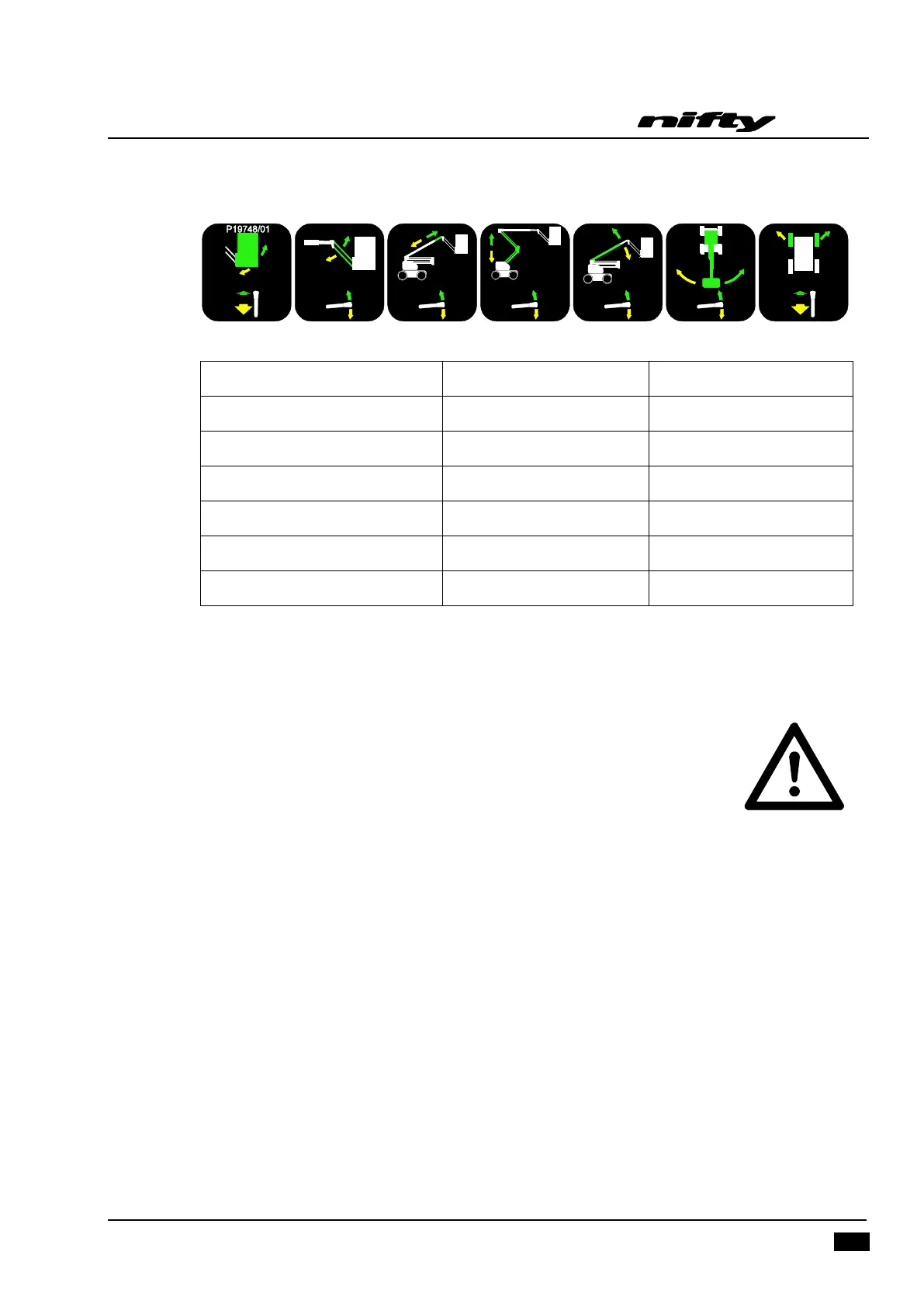

Base Levers
1 2 3 4 5 6 7
1 Operates Basket Levelling
Up for Backward **
Down for Forward **
2 Operates the Flyboom
Up for Up
Down for Down
3 Operates Telescoping
Up for Out
Down for In
4 Operates the Link Booms
Up for Up
Down for Down
5 Operates the Upper Boom
Up for Up
Down for Down
6 Operates Boom Rotation
Down for Left
Up for Right
7 Operates Front Wheel Steer
Up for Right
Down for Left
4.2.2 OPERATION
ALWAYS ALLOW THE ENGINE TO WARM UP BEFORE OPERATING
ALL MODELS
1) Ensure all red emergency stops are out.
2) Turn key switch at ground control station to Ground (Single turn clockwise).
DIESEL ENGINE
3) COLD ENGINE: - turn the Diesel Glow/Start selector to the Glow position (anti-clockwise). This
engages the glow plug pre-heat system. Hold for 5-10 seconds then turn the key to the Start
position (fully clockwise) and the engine will fire.
4) WARM ENGINE: - turn the Diesel Glow/Start selector to the Start position (clockwise) and the
engine will fire.
