4.3 BASKET CONTROL OPERATION

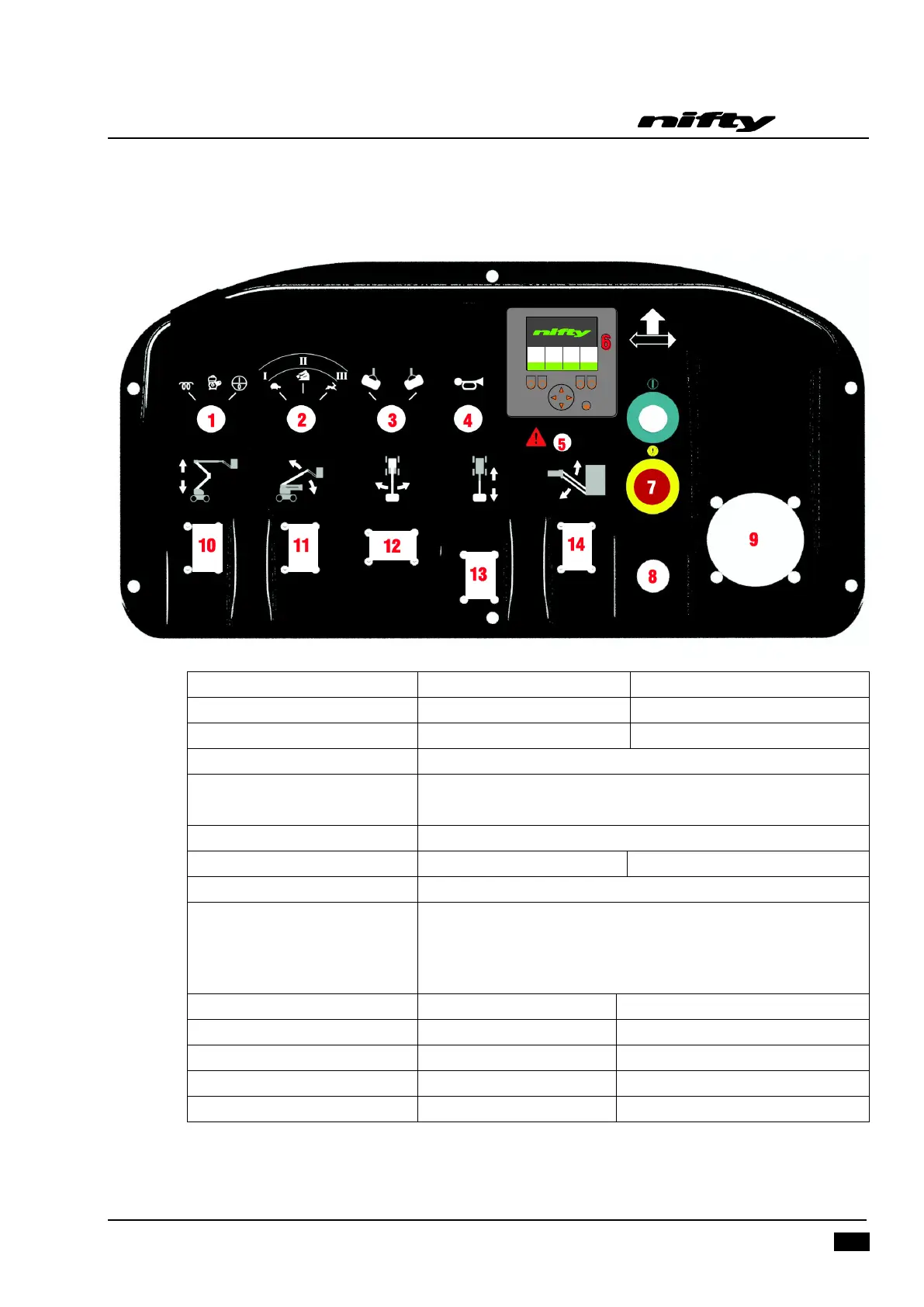

4.3.1 BASKET CONTROL FUNCTIONS
1 Engine Glow/Start/Stop
Anti-clockwise hold for Glow
Clockwise to Start/Stop engine
2 Speed Selector
Anti-clockwise to decrease
Clockwise to increase speed
3 Basket rotation
RH for Anti-clockwise
LH for Clockwise
4 Horn
Press & hold to Sound
5 Safety Warning Lamp
Indicates Safety Critical Problem
(Refer to Digital Gauge immediately)
6 Digital Gauge
See Section Error! Reference source not found..
7 Emergency Stop
Push to Stop Operation
Turn clockwise to Release
8 Green Power Button
Push and hold to activate machine
9 Joystick
Grip the joystick and hold the trigger switch at the front. Machine
movement is achieved by slowly moving the joystick away from
the neutral position in the required direction. Steer by using the
thumb rocker switch located on top of the joystick.
* 10 Operates the Link Booms
Up for Up
Down for Down
* 11 Operates the Upper Boom
Up for Up
Down for Down
* 12 Operates Boom Rotation
Left for Left
Right for Right
* 13 Operates Telescoping
Up for Tele-In
Down for Tele-Out
* 14 Operates the Flyboom
Up for Up
Down for Down
* More than one function can be operated at the same time
