4.3.2 BASKET DISPLAY UNIT

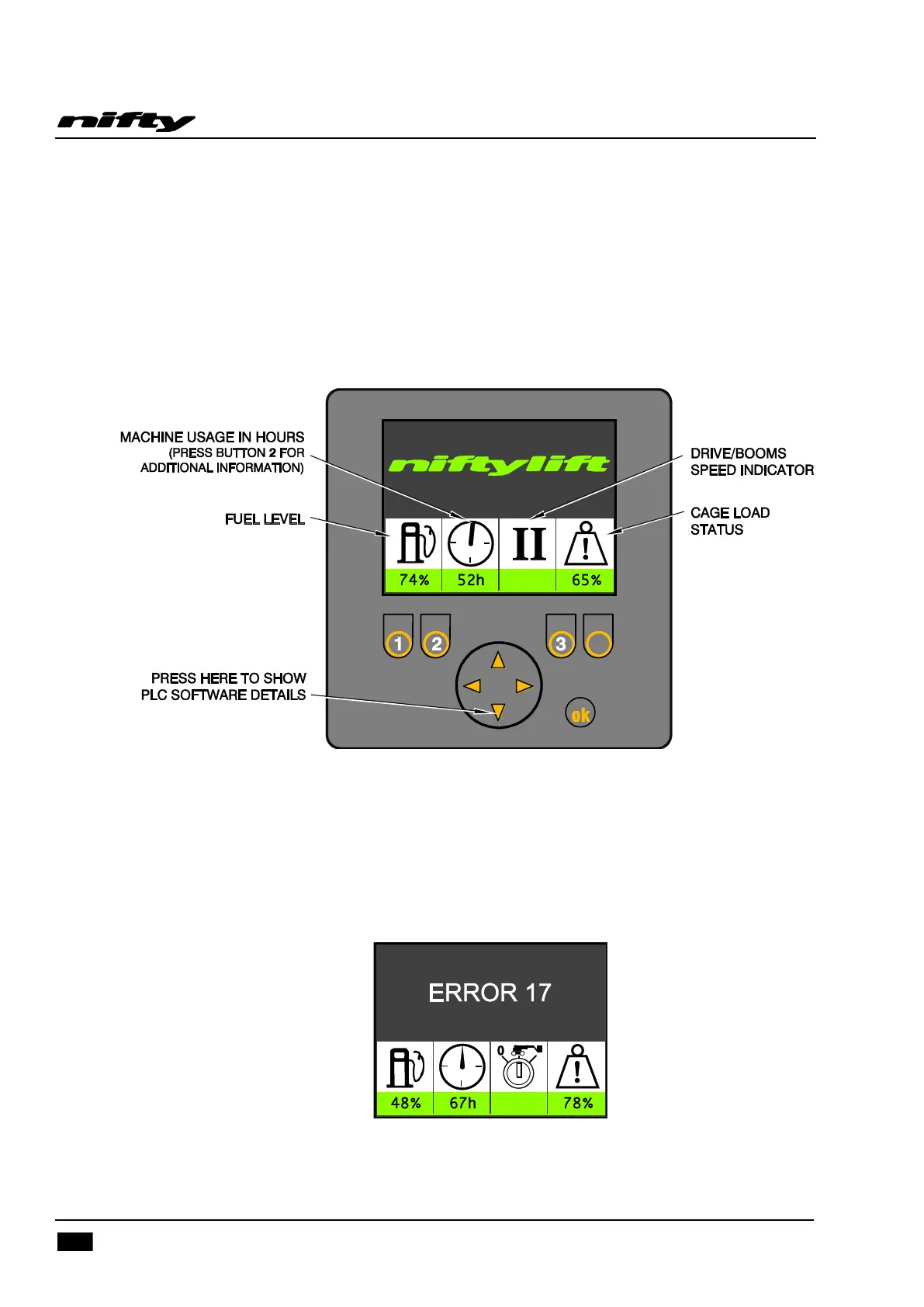

Situated on the Basket Control Panel, this gauge provides a warning indication for a range of functions.
For further information refer to Section 4.3.3 ‘Information Icons’ on Page 27. During machine operation
the gauge displays current fuel level, basket load status (if fitted), current boom/drive speed setting and
usage hours.
In addition, if the control system detects a malfunction elsewhere on the machine, an error code will be
displayed (see below). For further information refer to Appendix A.
