Introduction
Parts of the Camera

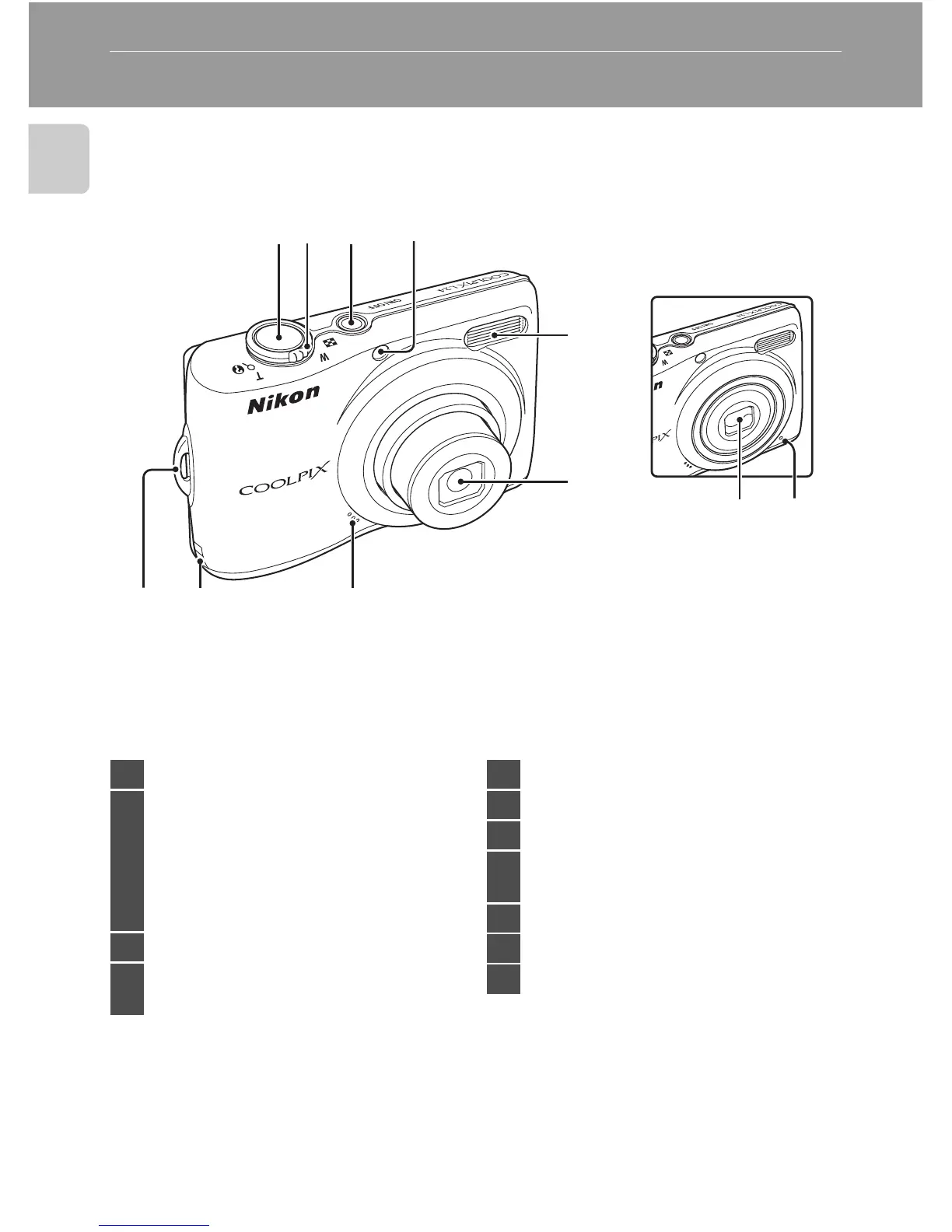

The Camera Body
1110
13
2
4
5
6
7
9
8
Lens cover closed
1 Shutter-release button ............................22
2
Zoom control .................................................21
f : wide ..................................................21
g : tele .....................................................21
h : Thumbnail playback ...............46
i : playback zoom ...........................48
j : help ...................................................11
3 Power switch/Power-on lamp .......18, 97
4
Self-timer lamp .............................................30
AF-assist illuminator ..........................23, 95
5 Flash .....................................................................28
6 Lens ........................................................ 113, 123
7 Speaker ..............................................................55
8
Power connector cover (for connecting
optional AC adapter) ...............................108
9 Eyelet for camera strap ............................11
10 Lens cover .....................................................111
11 Built-in microphone ...................................53
