Nikon coolpix7900 - Page 31

VAA46003-R.3659.A
- D25 ･ E7900 -

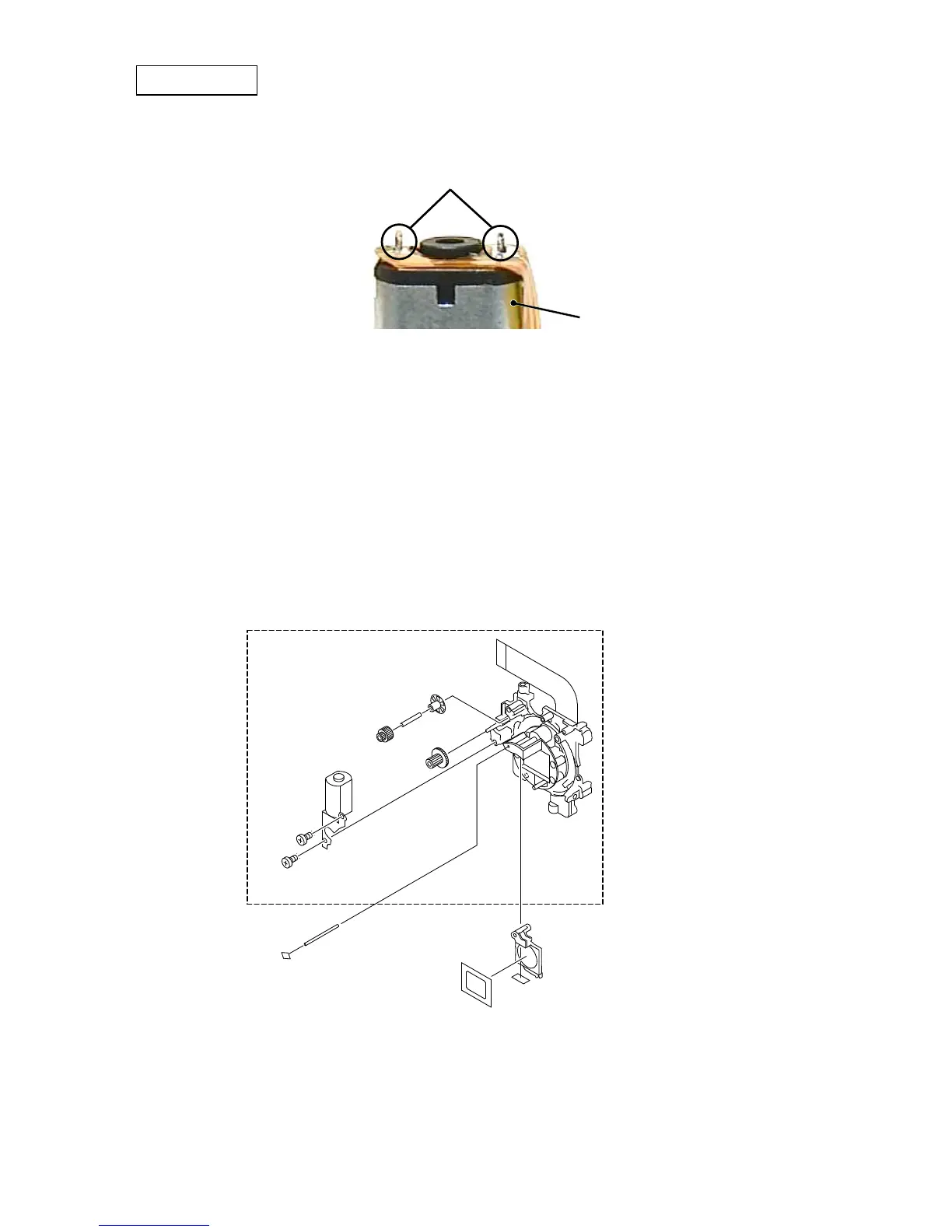

CCD mount unit
① The zoom motor unit B655 is set on the CCD mount unit by the two screws #681. Remove these screws.
② Remove the gears #642 and #643, the blade gear #647, and the blade axle #650.
③ Remove the 3rd lens group unit B603 from the CCD mount unit. Take off the reflection preventive sheets #623 and
#626.
・ Remove the solder between the zoom motor terminal unit B655 and the lens barrel FPC.
B603
#623
#681 × 2
B655
#647
#650
#642
#643
CCD mount unit
#626
#604
#694
Soldering section
B655
