Nikon coolpix7900 - Camera Assembly Procedures; Lens Unit and CCD Mount Assembly

VAA46003-R.3659.A
- A1･ E7900 -

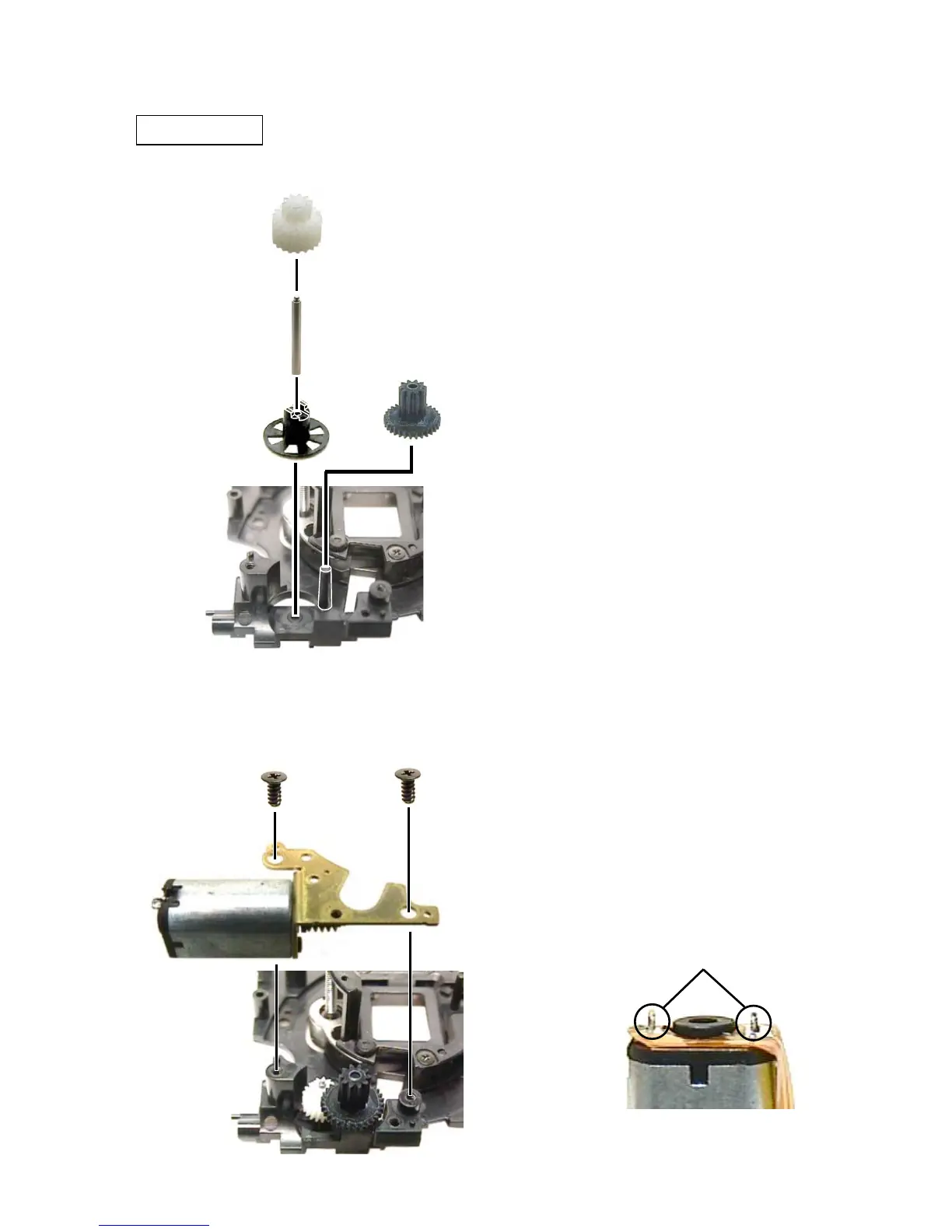

① Set the zoom motor unit #B655 onto the CCD mount unit with the two screws #681.
② Perform soldering between the terminal unit of the zoom motor and the lens barrel FPC.
・ Assembly of zoom motor unit
① Set the gear #643 onto the convex section of the CCD mount unit.
② Set the blade axle #650, the blade gear #647 and the gear #642 onto the CCD
mount unit.
#642
#650
#647
#643
#681 × 2
#B655
Soldering section
CCD mount unit
Assembly
