VAA46003-R.3659.A
- A3･ E7900 -

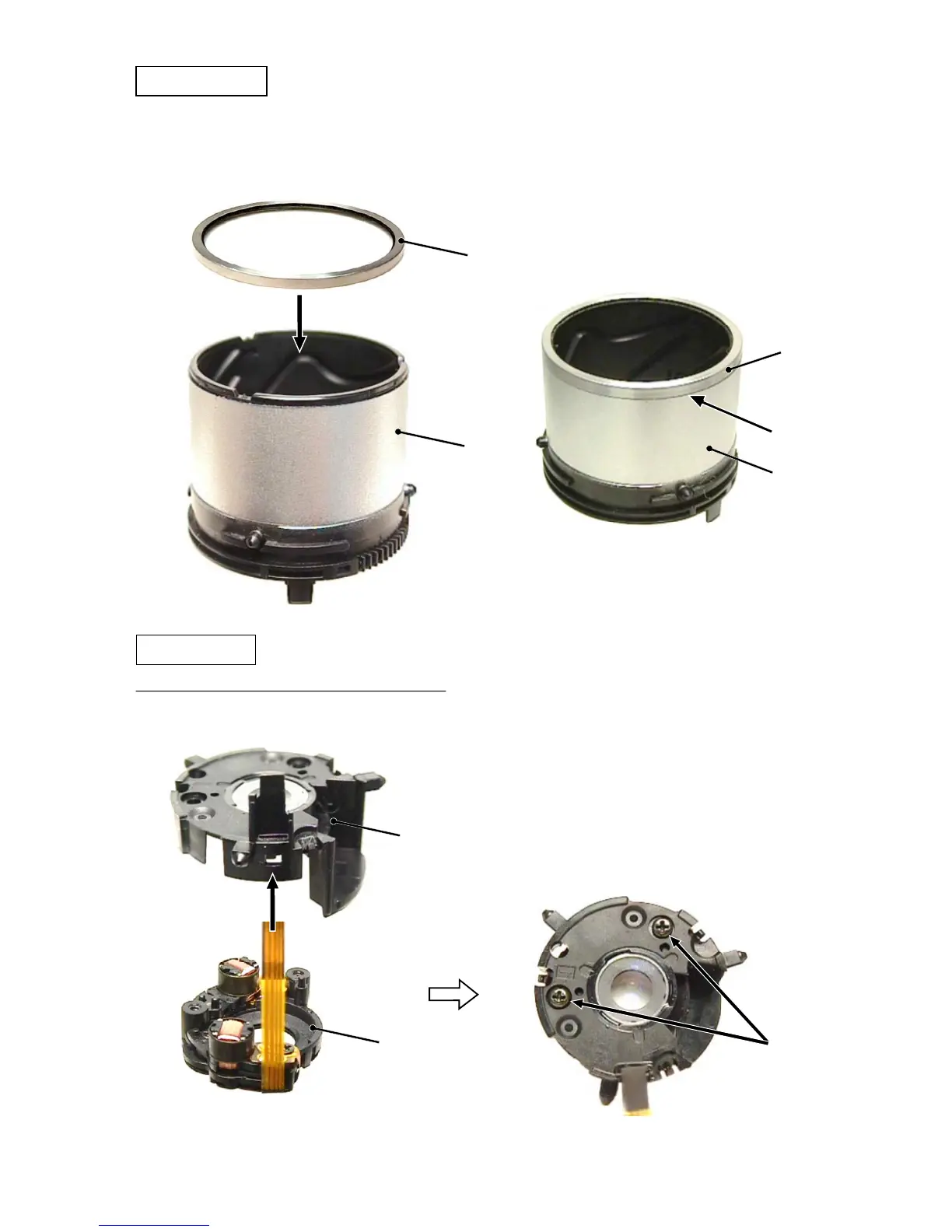

Cover ring unit
Shutter unit
① Set the cover ring B616 (A) onto the cam barrel #613. (Adhere it with the double adhesive tape.)
② After setting, check the clearance between the cover ring B616 (A) and the cam barrel #613. When the clearance is
0.2mm or more, set the cover ring B616 (B).
・ Set the shutter unit #606 onto the 2nd lens group unit.
B616(A)
#613
#613
Check the
clearance.
B616(A)
Note：When setting, be careful not to bend or cut the FPC.
1. Setting of shutter unit onto the 2nd lens group unit
・ Fix the shutter unit with the two screws #682.
#682 × 2
#606
2nd lens group unit
To Next Page
